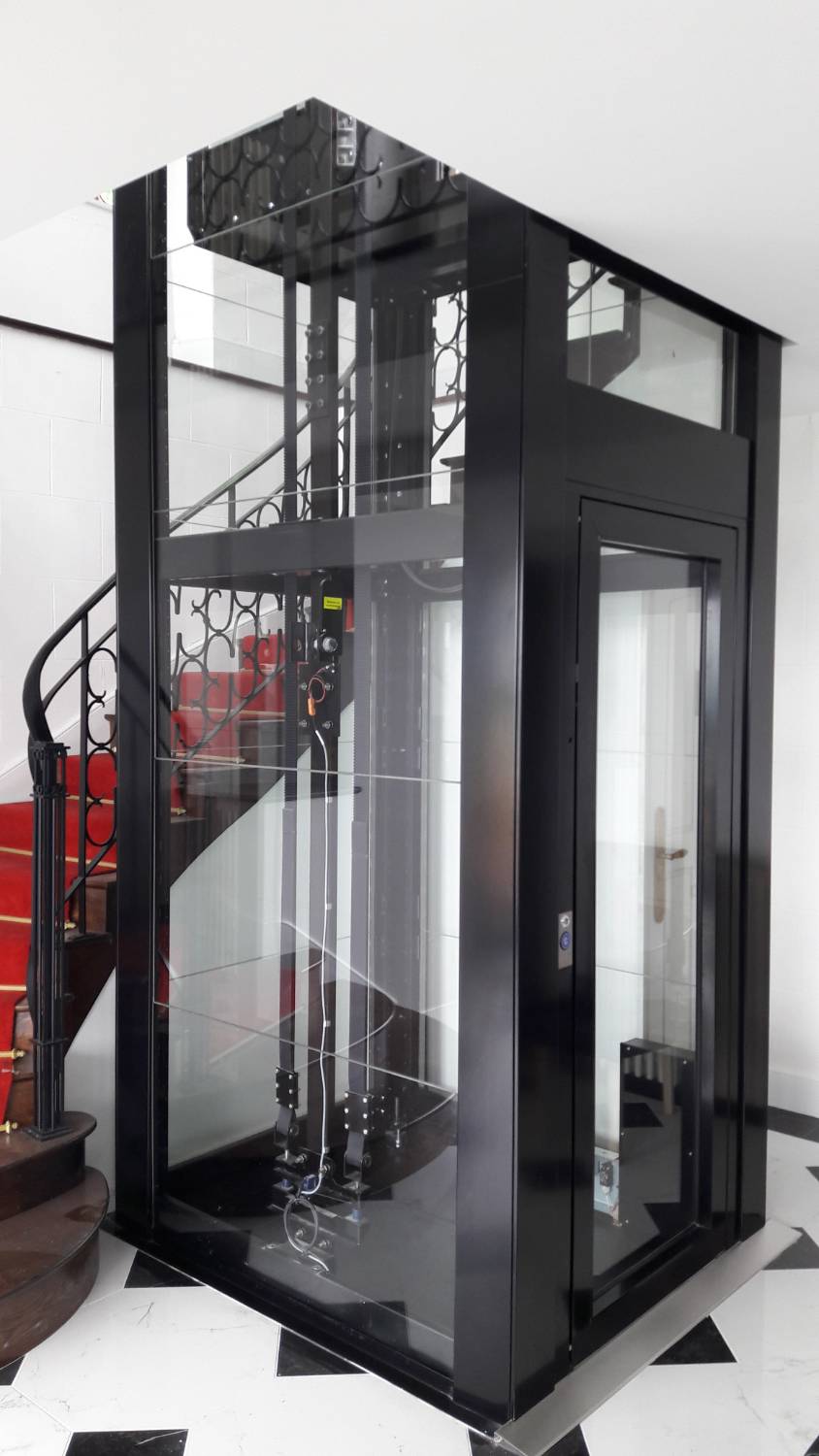

Shorts-Ermhes EN81-41 Vertical Wheelchair Platform Lift VIVALIFT (Long Travel)
Application

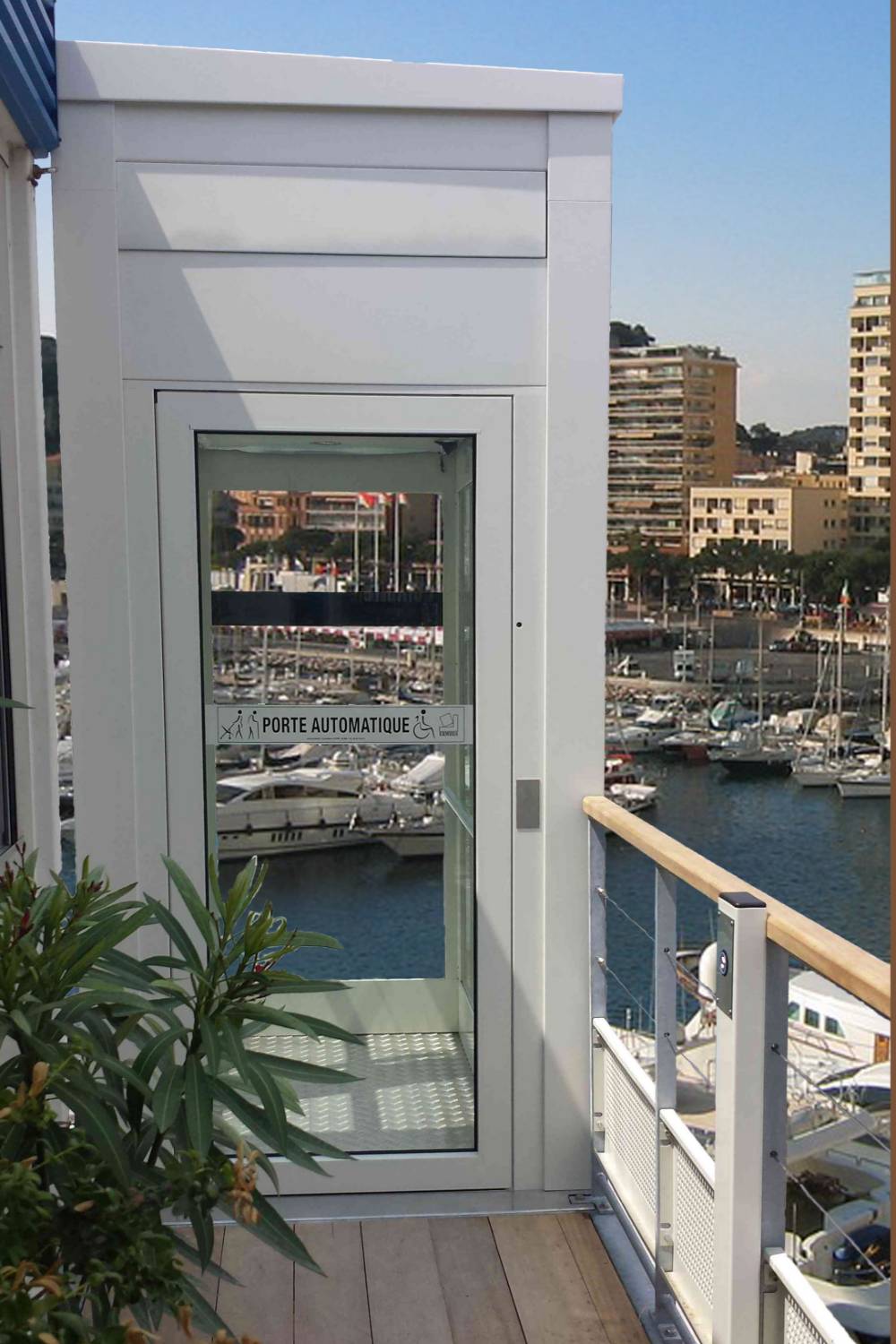

Indoors or outdoors, including coastal areas.

Description

Platform lift for vertical travel up to up to 15m.


Features and benefits.


  • Self-supporting structure
  • Can be installed indoors or outdoors, including coastal areas
  • IP65 Outdoor rating

General information

Color

Grey

Stainless Steel as standard

RAL colours available

Features

Self-supporting structure, can be installed indoors or outdoors, including coastal areas

Finish

Powder coated

Material

Steel

316 Stainless Steel

Shape

Rectangle

Size

Cabin size

800 x 1400 x 2600 mm

1300 x 1650 mm footprint

900 x 1400 x 2600 mm

1400 x 1650 mm footprint

1000 x 1400 x 2600 mm

1500 x 1650 mm footprint

1100 x 1400 x 2600 mm

1600 x 1650 mm footprint

Uniclass 2015

Pr_65_80_47_95 Vertical lifting platformsPrimary
Specification data - Vertical lifting platforms Enhanced data

Standard

EN 81-41.

Applicable for cabin size 1000 x 1000

Rated load (minimum)

400 kg.

Drive type

Central traction belt.

Carriage type

Full-height.

Carrier

-

Frame material

Steel.

316 Stainless steel.

Frame finish

Powder-coated.

Frame colour

Grey as standard but other colours available

Infill material

Glass.

Solid steel panel.

Doors

-

Arrangement

Single.

Through.

Type

Full glass, hinged.

Solid-hinged.

Steel

Clear opening width (minimum)

730 x 2000 mm.

800 x 1400 x 2600 mm Cabin

830 x 2000 mm.

900 x 1400 x 2600 mm Cabin

930 x 2000 mm.

1000 x 1400 x 2600 mm Cabin and 1100 x 1400 x 2600 mm Cabin

Frame material

Steel.

Stainless steel grade 1.4401 (316).

Frame finish

Powder-coated.

Frame colour

Grey as standard but other colours available

Infill material

Laminated glass.

Steel.

Stopsol glass.

Opaque glass.

Infill finish

Powder-coated.

Infill colour

Clear.

Carrier floor

-

Dimensions

-

Width (minimum)

900 mm.

Depth (minimum)

1400 mm.

Electrical supply

Backup battery in case of power failure.

Control device type

One touch landing control push button and hold to run operation.

Environmental information

Country of material origin

France

Country of product manufacture

France
