Description

Heavy duty shelving units with fixed shelves.

Wall bearing units are supported at the front on steel legs, and also fixed back to the wall. Free standing units should be wall fixed at one end.

Shelving units available in single width, or with one or two wider shelves at the bottom.

Units with MDF shelves are suitable for classrooms and general stores, whilst units with slatted hardwood shelves are intended for linen, baggage and sports stores.

General information
Specification data
Product Reference

Shelving - Fixed Heavy Duty

Type

E1(L)

E2(L)

E3(L)

E4(L)

E5(L)

E1/E2(L)

E2/E2(L)

E2/E3(L)

E2(T)

E3(T)

E4(T)

E5(T)

E5(T) Sports

F3(L)

F4(L)

F5(L)

F3(T)

F4(T)

F5(T)

Unit height

1800 mm

1980 mm

___ mm

As schedule ___

Shelf depth

150 mm

200 mm

250 mm

300 mm

315 and 600 mm

Multiple width units E1/ E2(L), E2/ E2(L) and E2/ E3(L).

350 mm

400 mm

500 mm

Colour -
Frame

Beige, RAL 1015

Black, RAL 9005

Blue, RAL 5010

Brown, RAL 8017

Green, RAL 6005

Grey, RAL 7035

Red, RAL 3000

White, RAL 9010

Yellow, RAL 1018

Shelves

Ash laminate

Beech laminate

Beige laminate

Grey laminate

Maple laminate

White laminate

Polished hardwood

Standard product features

Frame:

25 x 25 mm steel frame with flat or tubular shelf bearers. Hot-dip nylon coated.

Shelves:

  • Type L (suffix L): 18 mm MDF finished with 1.00 mm high performance laminate with 3 mm solid PVC lipping.
  • Type T (suffix T): 50 x 25 mm polished hardwood slats with tie bars.

Product Options

Type:

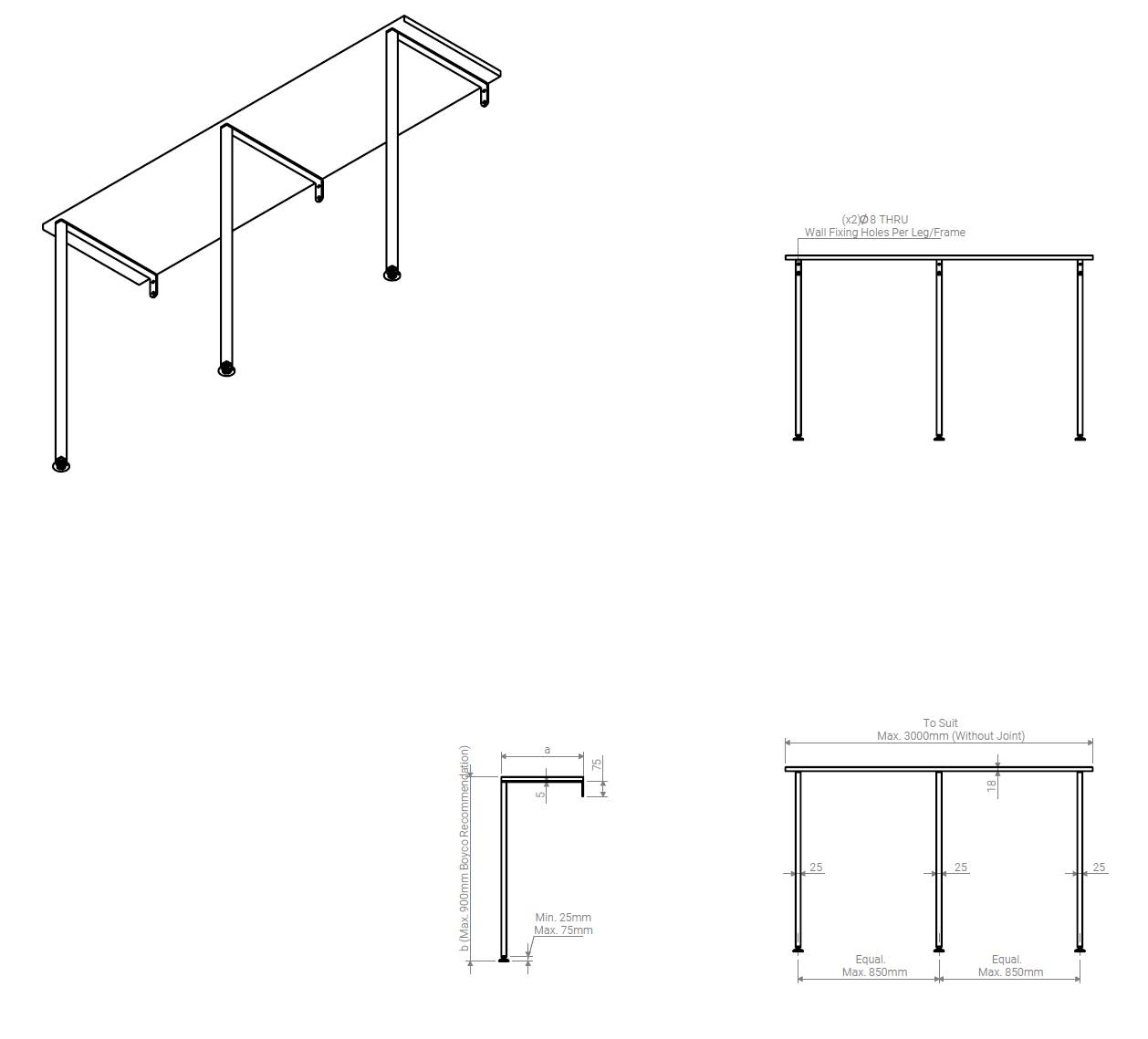

– E1(L):

Wall / floor fixed single shelf unit.

– E2(L):

Wall / floor fixed twin shelf unit.

– E3(L):

Wall / floor fixed three shelf unit.

– E4(L):

Wall / floor fixed four shelf unit.

– E5(L):

Wall / floor fixed five shelf unit.

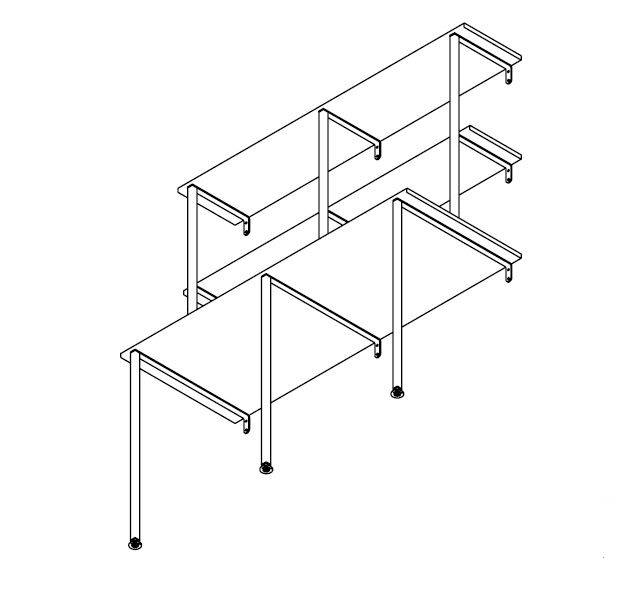

– E1/E2(L):

  • Wall / floor fixed unit.
  • One 600 mm deep shelf at 900 mm above ffl.
  • Two 315 mm deep shelves above.
  • Unit height: 1800 mm.

– E2/E2(L):

  • Wall / floor fixed unit.
  • Two 600 mm deep shelves, with top shelf at 900 mm above ffl.
  • Two 315 mm deep shelves above.
  • Unit height: 1800 mm.

– E2/E3(L):

  • Wall / floor fixed unit.
  • Two 600 mm deep shelves, with top shelf at 900 mm above ffl.
  • Three 315 mm deep shelves above.
  • Unit height: 1980 mm.

– E2(T):

Wall / floor fixed twin shelf unit.

– E3(T):

Wall / floor fixed three shelf unit.

– E4(T):

Wall / floor fixed four shelf unit.

– E5(T):

Wall / floor fixed five shelf unit.

– E5(T) Sports:

Wall / floor fixed five shelf unit with retainer rails.

– F3(L):

Free-standing three shelf unit.

– F4(L):

Free-standing four shelf unit.

– F5(L):

Free-standing five shelf unit.

– F3(T):

Free-standing three shelf unit.

– F4(T)

Free-standing four shelf unit.

– F5(T):

Free-standing five shelf unit.
