Description

Changing and cloakroom units with integral shoe trays, benches, peg rails and shelves.

General information
Specification data
Product Reference

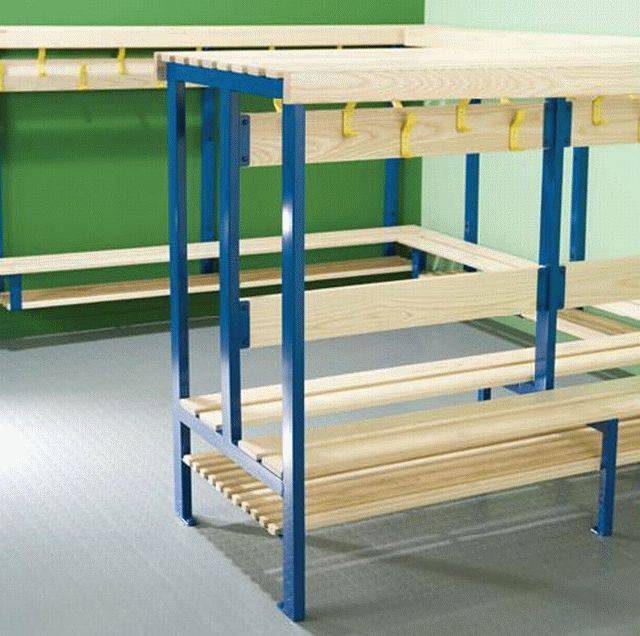

Shelf-over Changing and Cloakroom Units

Type

DA/S1 (550)

DA/S1 (750)

SSA/S1 (300)

SSA/S1 (400)

WA/C/S1 (300)

WA/C/S1 (400)

WA/LF/S1 (300)

WA/LF/S1 (400)

WA/L/S1 (300)

WA/L/S1 (400)

WA/S1 (300)

WA/S1 (400)

WAT/S1 (300)

WAT/S1 (400)

Height

Infant

Junior

Senior

Length

___ m

As drawing ___

Colour

Beige, RAL 1015

Black, RAL 9005

Blue, RAL 5010

Brown, RAL 8017

Green, RAL 6005

Grey, RAL 7035

Red, RAL 3000

White, RAL 9010

Yellow, RAL 1018

Pegs -
Type

A

Standard peg for general hat and coat storage.

K

Safety peg for use without bench seats.

Lollipeg

Easy coat storage and safety for small children.

T

Towel peg for shower drying areas, etc.

Arrangement

Inline at 150 mm centres

Inline at ___ mm centres

Paired at 150/ 350 mm centres

Paired at ___/ ___ mm centres

Staggered at 150 mm centres

Staggered at ___ mm centres

Not applicable

Other requirements

None

Adjustable feet

Ducted shoe tray

Allows heating pipes or coils to run behind shoe trays.

Heating pipe guards

Removable, hot-dip nylon coated steel mesh guards to protect small children from heating pipes.

Omit backrests

Omit shoe trays

Number discs, colour ___

Engraved laminate number discs, to fit lollipegs.

Pigeon shoe storage

Makes defined separate shoe storage.

Secret fixing feet

Welded peg rail

For installations at high risk of vandalism.

Standard product features

Frame finish:

Hot-dip nylon coated.

Seats/ Backrests/ Shelves/ Peg rails:

Manufactured from prime American White Ash and finished with two coats of high performance water based lacquer.

Product Options

Type:

– DA/S1 (550):

  • Free-standing, double sided unit with two banks of pegs.
  • Depth: 550 mm.

– DA/S1 (750):

  • Free-standing, double sided unit with two banks of pegs.
  • Depth: 750 mm.

– SSA/S1 (300):

  • Free-standing, single sided unit.
  • Depth: 300 mm.

– SSA/S1 (400):

  • Free-standing, single sided unit.
  • Depth: 400 mm.

– WA/LF/S1 (300):

  • Wall-bearing, single sided unit with front legs.
  • Depth: 300 mm.

– WA/LF/S1 (400):

  • Wall-bearing, single sided unit with front legs.
  • Depth: 400 mm.

– WA/L/S1 (300):

  • Wall mounted, single sided unit.
  • Depth: 300 mm.

– WA/L/S1 (400):

  • Wall mounted, single sided unit.
  • Depth: 400 mm.

– WA/C/S1 (300):

  • Wall mounted, single sided unit.
  • Peg rail and shelf fixed separately from bench.
  • Depth: 300 mm.

– WA/C/S1 (400):

  • Wall mounted, single sided unit.
  • Peg rail and shelf fixed separately from bench
  • Depth: 400 mm.

– WA/S1 (300):

  • Wall-bearing, single sided unit with front legs.
  • Peg rail and shelf fixed separately from bench.
  • Depth: 300 mm.

– WA/S1 (400):

  • Wall-bearing, single sided unit with front legs.
  • Peg rail and shelf fixed separately from bench.
  • Depth: 400 mm.

– WAT/S1 (300):

  • Wall-bearing, single sided unit with bag tray.
  • Peg rail and shelf fixed separately from bench.
  • Depth: 300 mm.

– WAT/S1 (400):

  • Wall-bearing, single sided unit with bag tray.
  • Peg rail and shelf fixed separately from bench.
  • Depth: 400 mm.

Height:

– Infant:

  • Shoe rack: 150 mm above floor level.
  • Seat: 350 mm above floor level.
  • Overall height: 1300 mm.

– Junior:

  • Shoe rack: 200 mm above floor level.
  • Seat: 400 mm above floor level.
  • Overall height: 1450 mm.

– Senior:

  • Shoe rack: 250 mm above floor level.
  • Seat: 450 mm above floor level.
  • Overall height: 1700 mm.

Frame colour:

  • Nine standard colours available.
