Sheet steel cladding with weather barrier, insulation and steel frame
Verified by manufacturer 2 months ago
Sheet steel cladding with weather barrier, insulation and steel frame.
Description

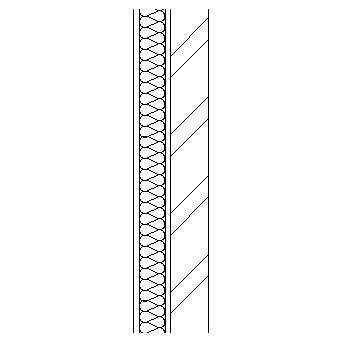

Cladding system comprising: 20 mm coated steel profiled sheet, 2 mm polyethylene weather barrier membrane, 100 mm mineral wool batts insulation, 20 mm coated steel profiled sheet, fixed to and 150 mm steel frame.
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2012 | 1.1 |
 IFC | IFC2X3 | 1 |
