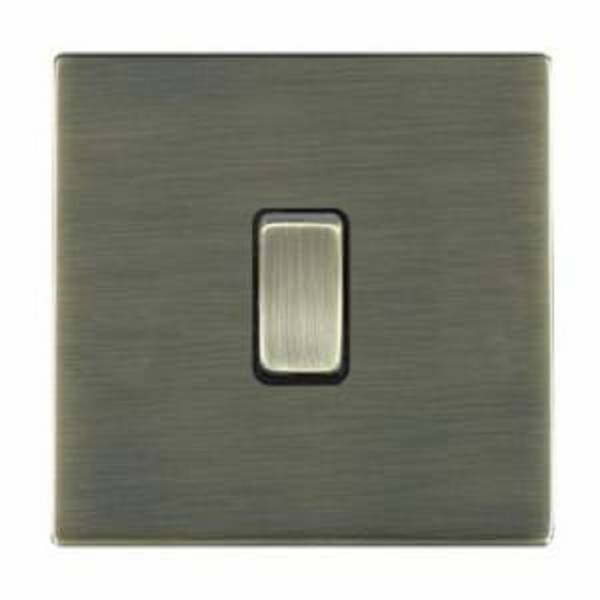

Sheer CFX - Switches

Application

Internal use only.

Description

Flat and elegant switches with firm edges. The faceplates are firmly held in place to the back frame with a patented four-point clipping system, concealing the fixings for a seamless finish.


Features and benefits:

  • Superb finishes, including four shades of bronze.
  • Choice of ten complementary switch insert finishes.
  • Concealed fixing (CFX).
  • Painted plates available.
  • Grid and EuroFix options also available.
  • Ultra-fast USB charging technology.

General information

Color

Black

White

Gold

Silver

Finish

14 finishes available.

Polished

Satin

Material

Cast brass

Shape

Square

With soft, round edges.

Rectangular

With soft, round edges.

Size

86 x 86 x 1.5 mm

86 x 145 x 1.5 mm

Uniclass 2015

Pr_65_72_97_63 Plate switchesPrimary

CAWS

V90/430 Electrical accessories

Product range

Sheer CFX

Specification data - Plate switches Enhanced data

Standard

To BS EN 60669-1.

Current rating

10 A.

Availability dependent on arrangement, consult manufacturer's literature for information.

10 AX.

Availability dependent on arrangement, consult manufacturer's literature for information.

20 AX.

Availability dependent on arrangement, consult manufacturer's literature for information.

Actuating method

Key switch.

Hotel card switch with LED.

Rocker switch.

Toggle switch.

Poles

Single, double or triple, switched.

Arrangement

Double gang.

Not available with Key switch or Hotel card switch with LED, 86 x 86 x 1.5 mm + 3 mm gasket.

Quadruple gang.

Not available with Key switch or Hotel card switch with LED, 86 x 145 x 1.5 mm + 3 mm gasket.

Single gang.

86 x 86 x 1.5 mm + 3 mm gasket.

Six gang.

For rocker only, 86 x 145 x 1.5 mm + 3 mm gasket.

Triple gang.

Not available with Key switch or Hotel card switch with LED, 86 x 86 x 1.5 mm + 3 mm gasket.

Plate

-

Material

Cast brass.

Finish

Antique brass.

Classic and sophisticated with a subtle aged appearance.

Black nickel.

A deep black finish with a subtle sheen.

Bright chrome.

A popular, highly polished and versatile finish.

Connaught bronze.

Copper bronze.

Etrium bronze.

Gloss white.

Not available with toggle switch.

Matt black.

Not available with toggle switch.

Polished brass.

A popular, highly polished and versatile finish.

Polished nickel.

Primed white.

Not available with toggle switch.

Polished nickel.

Richmond bronze.

Satin brass.

A softer yet equally sophisticated alternative to polished brass.

Satin steel.

Insert colour

Antique brass.

Classic and sophisticated with a subtle aged appearance, availability dependent on arrangement, consult manufacturer's literature for information.

Black nickel.

A deep black finish with a subtle sheen, availability dependent on arrangement, consult manufacturer's literature for information.

Black.

Availability dependent on arrangement, consult manufacturer's literature for information.

Bright chrome.

A popular, highly polished and versatile finish, availability dependent on arrangement, consult manufacturer's literature for information.

Polished brass.

A popular, highly polished and versatile finish, availability dependent on arrangement, consult manufacturer's literature for information.

Richmond bronze.

Availability dependent on arrangement, consult manufacturer's literature for information.

Satin brass.

Availability dependent on arrangement, consult manufacturer's literature for information.

Satin brass.

A softer yet equally sophisticated alternative to polished brass, availability dependent on arrangement, consult manufacturer's literature for information.

Satin steel.

Availability dependent on arrangement, consult manufacturer's literature for information.

White.

Availability dependent on arrangement, consult manufacturer's literature for information.

Trim

Not applicable.

For key or toggle switch.

Black.

Availability dependent on arrangement, consult manufacturers literature for information.

White.

Availability dependent on arrangement, consult manufacturers literature for information.

ControlType

2 way.

2 way EMG LTG Test.

For Key switch only.

Card switch on/ off with blue LED Locator.

For Hotel card switch with LED only

Intermediate.

Availability dependent on arrangement, consult manufacturer's literature for information.

Push to make retractive.

Availability dependent on arrangement, consult manufacturer's literature for information.

Show more
