SHADOW
Compare variants

Application

Creates a superior ready to tile floor in a shower area or in a wet room. Suitable for:

  • En-suite and designer bathrooms.
  • Refurbishments and new build projects.
  • Floor and wall structures: Designed for concrete, easy adaptation to board/ joist installations.

Description

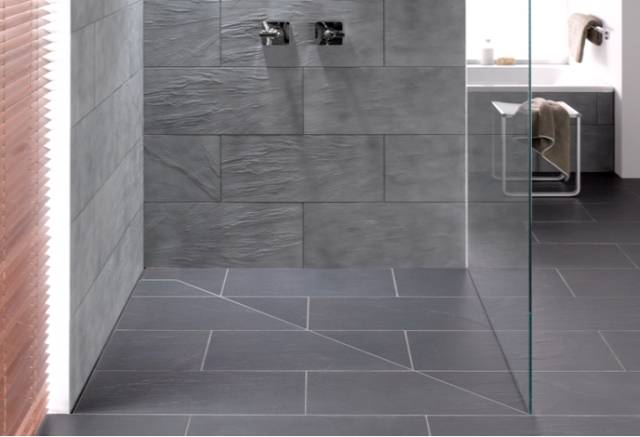

SHADOW showerbed is pre-formed with shallow gradients leading to concealed channels on adjoining sides. Slim ‘slot’ outlets built into the bed provide an ultra-discrete gap between floor and wall. Waste water disappears into channels hidden below the tiles and is taken away to a high volume trap concealed below a removable tiled panel.


Features and benefits:

  • Supplied complete with factory fitted perimeter gasket.
  • Waste and trap assembly: Horizontal or vertical.
  • Stainless steel tile support for two sides.
  • Adjustable and removable tile retainer for waste and trap.
  • Channel sealing blocks and adhesive.
  • Converter 50 mm to 2 inch ABS solvent weld.
  • Hard compressed polymer shower bed with a flat underside and flat gradient at 1.5% leading to outlet slots along two adjoining sides.
  • Full length integrated channels concealed below close fitting tiles showing 7 mm ‘slot’ outlets.
  • Removable trap cover with floor tile insert for easy access to high volume horizontal waste and trap.
  • Perimeter waterproof gasket built into structure, to seal into surrounding floor.


Package includes:

  • Supplied complete with factory fitted perimeter gasket.
  • Waste and trap assembly: Horizontal or vertical.
  • Stainless steel tile support for two sides.
  • Adjustable and removable tile retainer for waste and trap.
  • Channel sealing blocks and adhesive.
  • Converter 50 mm to 2 inch ABS solvent weld.


General information

Material

Polymer

Shape

Square

Rectangle

Size

1200 x 1200 mm

Standard, can to cut down to 500 x 500 mm on-site.

2400 x 2400 mm

Optional, multi-combinations when building multi SHADOW units into a single installation, giving a potential 160 L/ min capacity.

Uniclass

Pr_40_20_06_84 Shower traysPrimary

CAWS

N13/375 Shower units

N13/377 Wet room showers

N13/40 Shower units

Specification data - Shower trays Enhanced data

Form

Square.

Rectangular.

Materials

-

Body

Waterproof high pressure and temperature hard polymer.

Size

1200 x 1200 mm.

Standard, can to cut down to 500 x 500 mm on-site.

2400 x 2400 mm.

Optional, multi-combinations when building multi SHADOW units into a single installation, giving a potential 160 L/ min capacity.

Waste hole

Polypropylene moulded, DIN 50 mm.

Integral accessories

Not required.

SHADOW Pre-formed Showerbed Extension Piece BT00100590.

Optional, 1200 x 600 mm.

Trap

Horizontal.

Tile thickness

12 mm.

Waterproofing

Standard factory finish - KMK.

Gradient

Twin 1.5%, leading from diagonal peak to two sides.

Profile

65 mm showerbed. 130 mm overall support including trap.

Adaptor

Converting adaptor: DIN 50 mm compression to 2 inch, ABS solvent weld.

Installation accessories

Not required.

SHADOW Installation Kit BT00100591.

Complete installation kit for SHADOW shower tray system, including sealing components.
