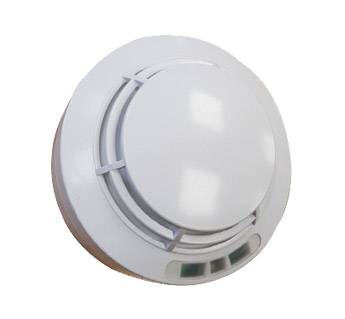

SGF104 – Oxygen Sensor

SGF104 – Oxygen Sensor

Duomo (UK) Ltd

The SGF104 has been introduced by Duomo at the request of architects and consultants to provide a more architecturally discrete enclosure without compromising the sensitivity of detection.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

Suitable for research and teaching laboratories, food and manufacturing, assembly clean rooms.

Description

The SGF104 has been introduced by Duomo at the request of architects and consultants to provide a more architecturally discrete enclosure without compromising the sensitivity of detection. The SGF 104 Oxygen sensor measures oxygen depletion and excess oxygen.


Features and benefits:

  • 4-20mA output.
  • Senses depletion or excess O2.
  • Compatible with Duomo controllers.
  • Ceiling or wall-mounted.
  • Status indication lights.
  • Conforms to EN 50104 and EN 50270.
  • 12 to 24 V DC supply.
  • Relay output 1A @ 30 V DC.
  • IP64 Protective rating.

General information

Color

White

Material

ABS self-extinguishing VDE0471

Shape

Circular

Size

45 x 90 mm

WarrantyDescription

2 years, extendable to 3 years when registered at www.duomo.co.uk/product-warranty/

Uniclass 2015

Pr_75_50_76_02 Air quality sensorsPrimary

Specification data - Air quality sensors Enhanced data

Sensor type

Oxygen.

Equipment interconnectivity

-

Wired

Required.

Mounting

Room.

Digital objects

Platform Compatible Version Certified to
IFC
-

1

2.1
Revit
-

1

2.1
Download now from NBS National BIM Library

Literature

SG104 Oxygen Sensor Datasheet

SG104 Oxygen Sensor Datasheet
