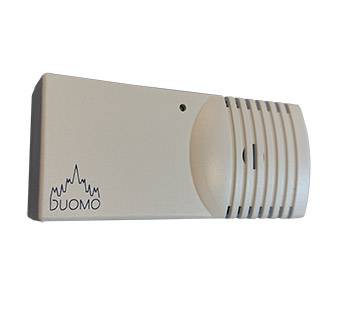

SG500 – Methane or LPG Gas Sensor

SG500 – Methane or LPG Gas Sensor

Duomo (UK) Ltd

When the SG500 senses the presence of gas it sends a 4-20mA signal to the detector proportional to the level of gas.

Jump to:
+44 (0)1905 797989 www.duomo.co.uk

Application

Suitable or boiler rooms, kitchens, car parks, aircraft hangers, factories and shopping centres.

Description

When the SG500 senses the presence of gas it sends a 4-20mA signal to the detector proportional to the level of gas. The detector then operates a pre-alarm relay - used for remote sirens or visual indicators. If the level of gas continues to rise then the main alarm relay is activated to break the electrical supply to a safety shut off valve and is fixed at 20% LEL of natural gas.


Features and benefits:

  • Detect either natural gas or LPG.
  • Nemoto catalytic sensor technology.
  • Low cost.
  • Sensor active indicator.
  • IP30 enclosure.
  • Compatible with BX150, BX444M, GS300M, GS300Mc GS100M and BX316.

General information

Color

White

Shape

Rectangular

Size

110 x 50 x 35 mm

WarrantyDescription

2 years, extendable to 3 years when registered at www.duomo.co.uk/product-warranty/

Uniclass 2015

Pr_75_50_76_33 Gas detectorsPrimary

Specification data - Gas detectors Enhanced data

Detector type

Catalytic bead.

Gas

Methane.

LPG.

Natural gas.

Ingress protection (minimum)

To BS EN 60529, IP30.

Outputs

4–20 mA

Digital objects

Platform Compatible Version Certified to
Revit
-

1

2.1
IFC
-

1

2.1
Download now from NBS National BIM Library

Literature

SG500 Datasheet

SG500 Datasheet
