SG Edge Symmetry Door - Internal Doors
Verified by manufacturer 5 months ago
BM Trada
Certificate type

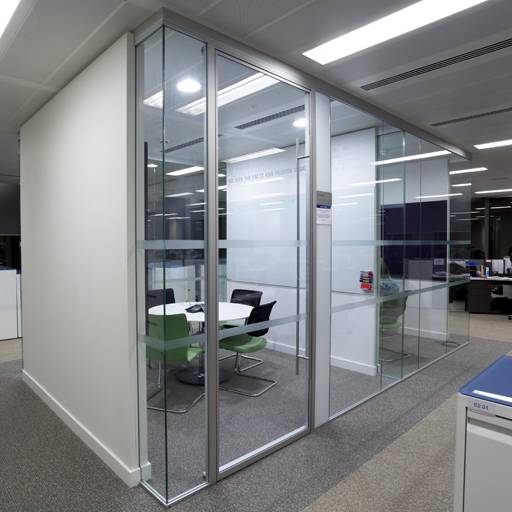

A framed, single-leaf, single-glazed acoustic glass door which offers high acoustic performance.
Application
Suitable for offices and meeting rooms requiring a high level of acoustic privacy.
Description
The SG Edge Symmetry door is a framed acoustic glass door which offers excellent acoustic performance.
Features and benefits:
- The elegant door is designed for use within the Microflush door frame and can be hinged or pivoted.
- Slim 30 mm standard width stile.
- Part M-compliant opening included.
General information
Color | Silver White Other |
Finish | Anodized Glazed Grained Polished Powder-coated |
Material | Glass Aluminium |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: See Warranty Policy literature for more information. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Specification data - Aluminium doorsets
Configuration | As schedule.As drawing.Guidance for specification option: Insert drawing reference number. |
Doorset size | Guidance for specification option:
|
Performance | |
Acoustic performance | 35 dB.Guidance for specification option: (when used within a Microflush frame.) Manufacturer guidanceRw (maximum) |
Frame | |
Material | Aluminium. |
Finish | |
Coating | Anodized.Guidance for specification option: 25 microns thickness. Grained.Guidance for specification option: Brightened and protective anodized. Polished.Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL.Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver.Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White.Guidance for specification option: 50 microns, 30% gloss (nominal). |
Door leaf | |
Material | Glass. |
Glazing | |
Type | Single-glazed, 12 mm heat-soaked toughened glass (to BS EN 14179). |
Manifestation | Guidance for specification option: Insert requirements. |
Hardware | Guidance for specification option: Insert requirements; consult manufacturer for more information. |
Operation | Hinges. Pivots. |
Locking | Dead lock. Latch. Sash lock. |
Samples required | Not required. Required. |
System performance | Acoustic performance. |
Sustainability data
Contains Red List materials | Yes |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 54.8 kg CO₂ eq/m² Self declared Guidance for specification option: See Environmental Product Declaration literature for LCA data details. |
BIM objects
| Platform | Compatible | Version |
|---|---|---|
 Revit | Revit 2016 | 1 |
Third party certifications
BM Trada
009109 (3) - ISO 14001 - Optima Products Limited
BM Trada
000016 (4) - ISO 9001 - Optima Products Limited
