Verified by manufacturer today
EPD
Certificate type

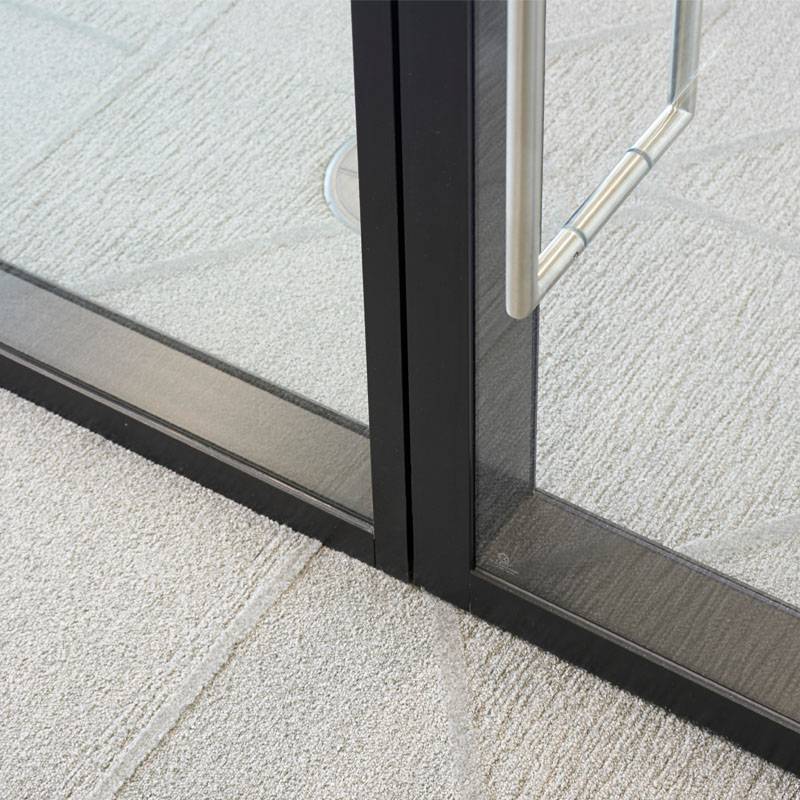

100 mm-thick pivoting, single-leaf, double-glazed acoustic glass, framed doorset.
Designed for use in conjunction with the Revolution 100 double-glazed partition system.

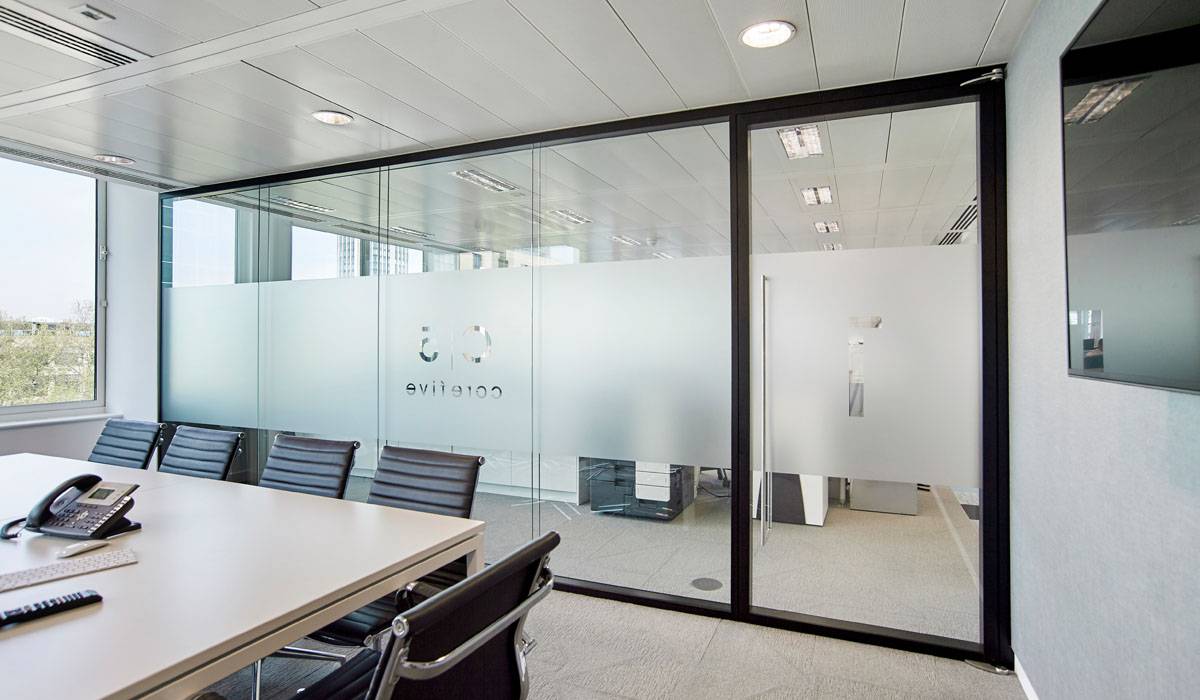

At the heart of the Revolution 100 system is the Elite Symmetry door, designed to deliver the perfect balance of minimalist design and outstanding acoustic performance. Part of a dry-jointed double glazing system, Elite Symmetry offers seamless integration with Revolution 100 partitions, creating a visually consistent workspace without compromise.
Elite Symmetry. Performance with Precision
Revolution 100 Partition System. Supporting Elite Symmetry
Complementary Elite Door Range
Consult with manufacturer for further information.
Color | White Silver Other Black |
Finish | Anodized Glazed Grained Polished Powder-coated |
Material | Glass Aluminium |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Warranty description | Ten year Guidance for specification option: See Warranty Policy literature for more information. |
Uniclass | |
CAWS | L20/480 Doorsets L20/55 Doorsets |
Product range |
Classification data | |
Doorset size | Manufacturer guidance
|
Performance | |
Acoustic performance | 43 dB. |
Frame | |
Material | Microflush D660 aluminium door frame. |
Finish | |
Coating | Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal). |
Door leaf | |
Material | Glass. |
Glazing | |
Type | 6 mm heat-soaked toughened glass and 8 mm heat-soaked toughened glass (to BS EN 14179). |
Manifestation | Manufacturer guidanceInsert requirements. |
Operation | Stainless steel offset pivots. |
Locking | Not required. Dead lock. Latch. Sash lock. |
Ironmongery | Guidance for specification option: Insert requirements from Optima standard ironmongery suite. |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Glass Aluminium |
Carbon dioxide equivalent | |
Carbon dioxide equivalent, as defined in BS EN 15804 Certified | |
Stage Normalised unit (kg CO₂ eq/kg) Declared unit (kg CO₂ eq/m²) Stage:A1–A3 ('Production stage') Normalised unit : Declared unit 64.5 : Lower emissions Value guidance: A1-A3Please see Environmental Declaration literature for detailed LCA data. |
Platform | Compatible | Version |
---|---|---|
