SG Edge Symmetry Door - Inline Pivot

Name: SG Edge Symmetry Door - Inline Pivot
Brand: Optima
SKU: m3TE31fQZsUSxLGJ4mSumG

Verified by manufacturer 5 months ago

Third party certifications:

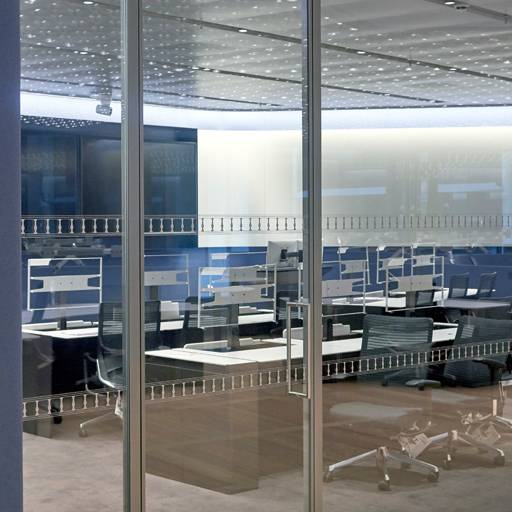

A framed, single-leaf, single-glazed acoustic glass door with high acoustic performance.

Jump to:

Application

Suitable for offices and meeting rooms requiring a high level of acoustic privacy.

A framed, single-leaf, single-glazed acoustic glass door with high acoustic performance.

Features and benefits:

The SG Edge Symmetry framed glass door can be used with an inline pivot as a non-standard variation.
The elegant door is designed for use within the Microflush door frame and can be hinged or pivoted.
Slim 30 mm standard width stile.
Part M-compliant opening included.

Color	White Silver Other
Finish	Anodized Guidance for specification option: 25 microns thickness. Glazed Grained Polished Powder-coated
Material	Glass Aluminium
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Pr_30_59_24_02 Aluminium doorsetsPrimary
CAWS	L20/480 Doorsets L20/55 Doorsets

Product range	Door Leaves

Configuration	As schedule. As drawing. Guidance for specification option: Insert drawing reference number.
Doorset size	Guidance for specification option: Available up to 3000 mm in height. Leaf only: 990 mm. Overall frame width: 1054–1074 mm.
Performance	-
Acoustic performance	35 dB. Guidance for specification option: (when used within a Microflush frame.) Manufacturer guidance Acoustic rating (Rw, maximum):
Frame	-
Material	Aluminium.
Finish	-
Coating	Anodized. Guidance for specification option: 25 microns thickness. Grained. Guidance for specification option: Brightened and protective anodized. Polished. Guidance for specification option: Brightened and protective anodized. Powder-coated, RAL. Guidance for specification option: Insert requirement; contact manufacturer for more information. Powder-coated, RAL 9006 Silver. Guidance for specification option: 50 microns, 30% gloss (nominal). Powder-coated, RAL 9010 White. Guidance for specification option: 50 microns, 30% gloss (nominal).
Door leaf	-
Material	Glass.
Glazing	-
Type	Single-glazed, 12 mm heat-soaked toughened glass (to BS EN 14179).
Manifestation	Guidance for specification option: Insert requirements.
Hardware	Guidance for specification option: Insert requirement; contact manufacturer for more information.

Contains Red List materials	Yes
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	54.8 kg CO₂ eq/m² Self declared Guidance for specification option: See Environmental Product Declaration literature for detailed LCA data.
