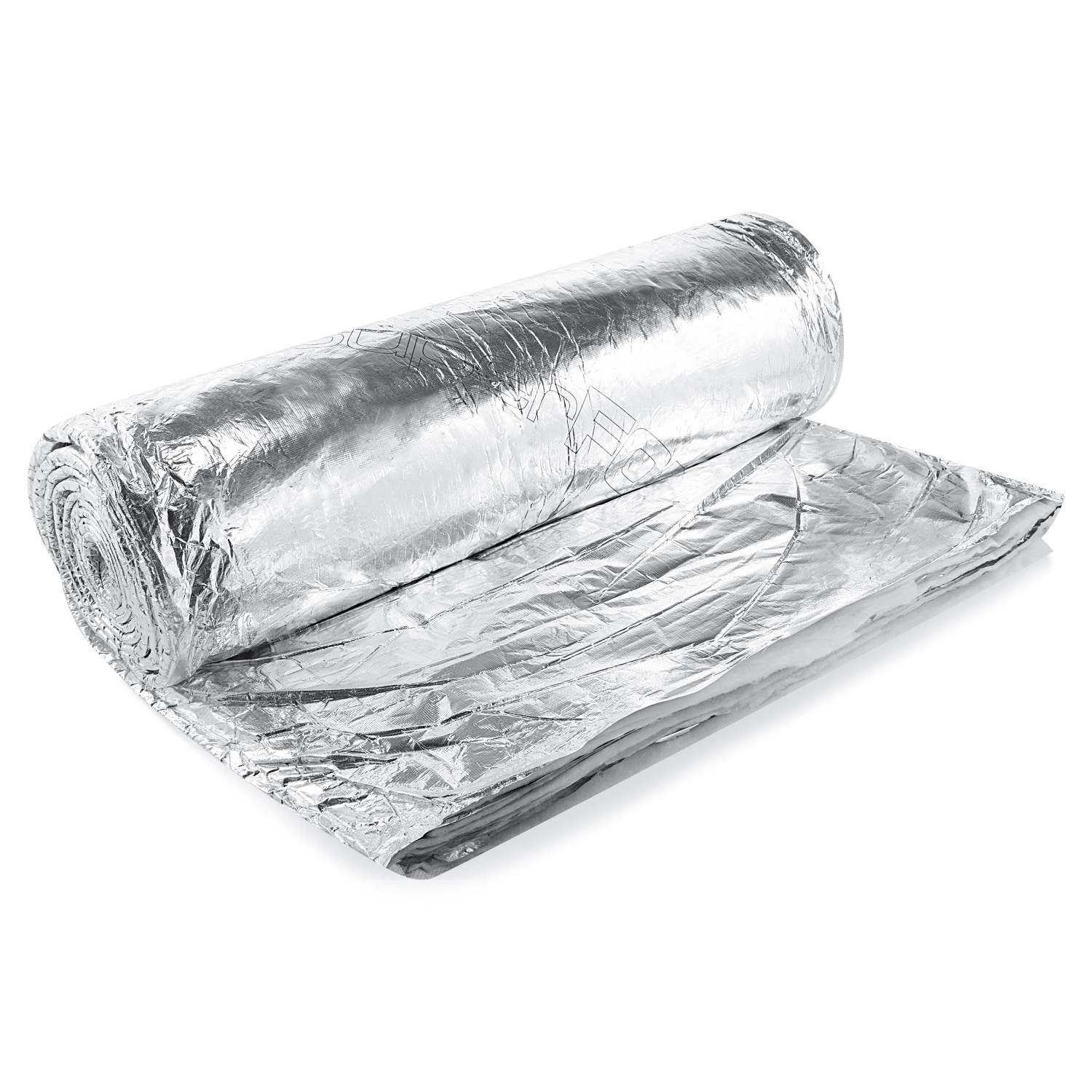

SF60 - Reflective Multifoil Insulation

Verified by manufacturer 5 days ago

SuperFoil Insulation

High performing multi-layer foil thermal insulation for roofs, walls and floors, consisting of 25 layers in total.

Jump to:
+44 (0)1636 639900 Website

Application

Ideal for use in new-build, renovation, refurbishment, extension or retrofit projects in pitched and flat roofs, walls and floors.

Description

World’s highest performing 3 in 1 multi-layer reflective foil insulation. Designed to deliver high-performance insulation, vapour control and radiant barrier for roof, wall and floor applications in both new builds and retrofits.


Features and benefits:

  • SF60 is from SuperFOIL’s multifoil range offering a 3 in 1 design, providing high-performance insulation, vapour control layer and radiant barrier all in 1 product.


  • SuperFOIL also acts as a radiant barrier to reflect excessive heat gain during the summer months as well as insulating throughout the year.


  • SuperFOIL SF60 offers thermal performance values of 3.58 R-value for the core, 4.48 R-value for roofs, 4.91 R-value for walls and 6.24 R-value for floors.


  • Can contribute to reaching U-values of as low as 0.10 W/m²K.


  • SuperFOIL’s clever design brings more functionality with less product and a slim construction depth.


  • Multifunctional, lightweight and easy to install design that requires no specialist tools and creates minimal wastage.


  • Reaction to Fire (Euroclass) Class F.


  • SuperFOIL SF60 has undergone rigorous testing and third party certification to comply with the latest building regulations standards for use as part of construction and European regulations such as CE/UKCA.


  • SF60 can be installed in combination with other insulation products.


  • All SuperFOIL multifoil products are suitable for use in roofs, walls and floors in new build & retrofits; as well as for DIY projects such as garden rooms, garage & sheds.


  • SF60 is made from up to 40% recycled materials and is fully recyclable at the end of its 50+ year lifespan.


Components:

  • Two reinforced, heavy duty double foil laminated outer layers.
  • Eleven aluminium coated, reflective foil polyethylene terephthalate (PET) layers.
  • Twelve loft quilt layers, 80 g/m².

General information

Color

Silver

Finish

Foil

Material

Foil

Shape

Other

Length

8000 mm

Width

1500 mm

Warranty description

25 year

Material

Foil

Uniclass

Pr_25_57_06_57 Multifoil blanket insulationPrimary

CAWS

P10/135 Insulation laid across ceiling ties/ joists

P10/148 Multilayer blanket insulation fixed under or above rafters

Specification data - Multifoil blanket insulation

Thermal performance

Core performance: 3.58 R value.
Roof performance: 4.48 R value.
Wall performance: 4.91 R value.
Floor performance: 6.24 R value.

Reflective facing

Required.

Thickness

100 mm.

Number of layers

25.

Fire performance

Class F.

Roll size

1.5 x 8 m.

Weight

17.75 kg per roll.

Tensile strength

757 N/50 mm (length, after ageing) 726 N/50 mm (width).

Emissivity

0.05.

Water vapour resistance

1200 MNs/g.

Resistance to water penetration

W1.

Flexibility at low temperature

-40°C.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Material

Foil

Recyclability

Fully recyclable at the end of its 50+ year lifespan.

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

40 %
