SF52 Mullion Drained Curtain Wall System
Verified by manufacturer 2 months ago
Curtain wall system with enhanced thermal performance.
Description

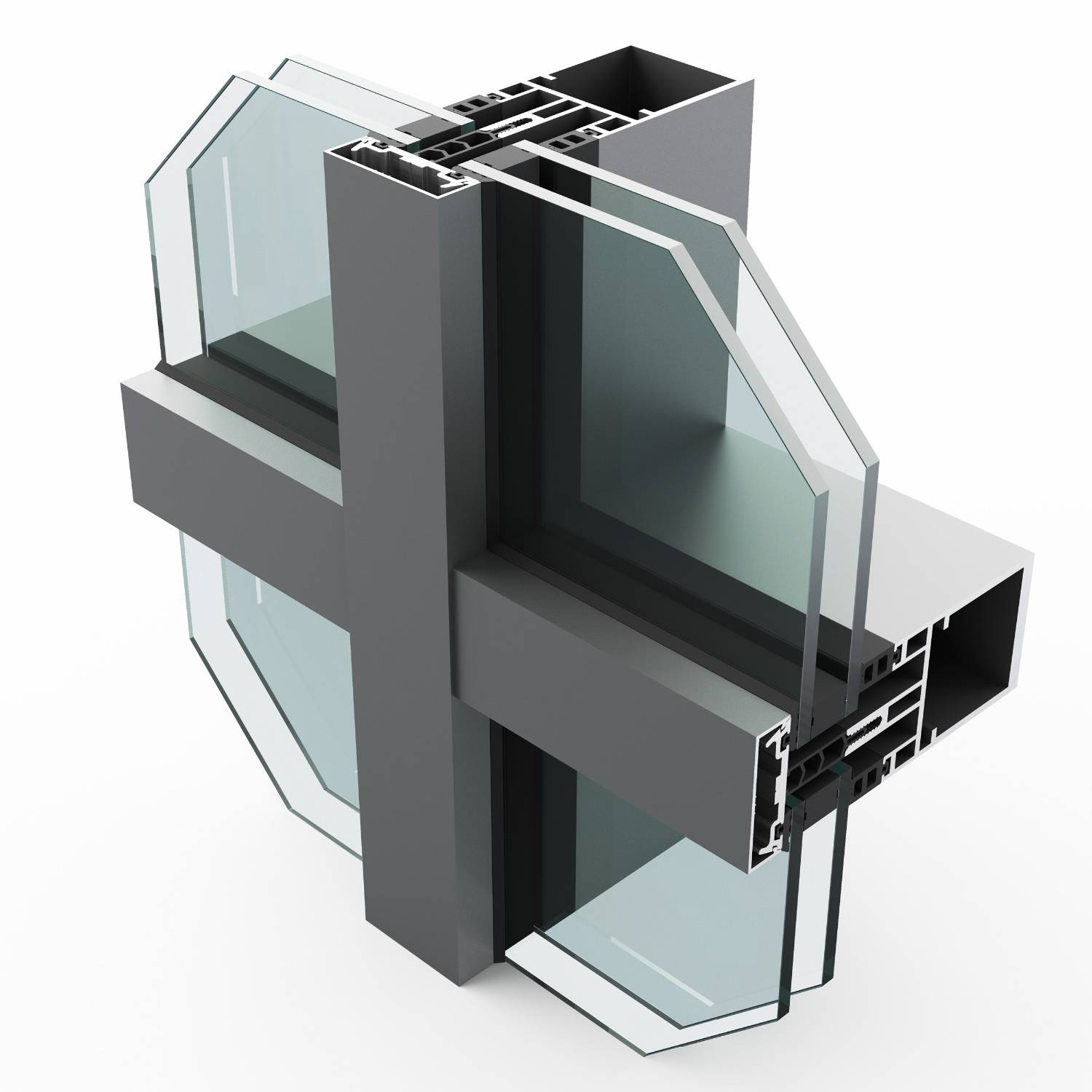

A curtain wall system which has been designed to enhance thermal performance meaning the system can exceed current building regulations. It is a stick type front loaded system using spring pins and a specially designed cleat which allows square cutting throughout.
Features and benefits:
- The system can be either zone drained (via conventional pressure plate drainage or using a specially designed spout system) or it can be mullion drained.
- The zone drained system can be assembled capped, uncapped (using the SAS toggles) or combination of the two.
- Section sizes vary from 50—250 mm (50, 80, 100, 125, 150, 175, 200, 225 and 250 mm).
- Specific profiles can be incorporated offering design flexibility.
General information
Material | Aluminium Guidance for specification option: Alloy. |
Shape | Square Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Height | Bespoke |
Uniclass | |
CAWS | H11/110 Curtain walling |
Product range |
Specification data - Stick curtain walling systems
Framing | |
Frame members | Aluminium alloy curtain wall frame sections.Guidance for specification option: Aluminium alloy 6060, 6063 or 6083 (for improved strength). T6 to BS EN 755-9 or BS EN 12020-2. |
Cladding units | |
Glass units | Insulated glass units (IGUs).Guidance for specification option: Insert required thickness.
|
System accessories | Aluminium/ co extruded plastic pressure plate.Guidance for specification option: Fixed to mullions and transoms at a maximum of 25 mm from ends and at a maximum of 150 centres. |
Type | SF050. SF080. SF100. SF125. SF150. |
Vertical | SMR998. SMR997. SCW002. SCW008. As drawing. Guidance for specification option: Insert details. |
Horizontal | SMR997. SCW055. SCW003. SCW007. As drawing. Guidance for specification option: Insert details. |
Perimeter edge/ thermal break | Extruded to BS 7619. |
Gasket | Manufactured in accordance with BS 3734. |
Air permeability | 600 Pa. Guidance for specification option: Tested to CWCT specification sequence B and in accordance with BS EN 13830. |
Watertightness | 600 Pa. Guidance for specification option: Tested to CWCT specification sequence B and in accordance with BS EN 13830. |
Wind resistance | 2400 Pa. Guidance for specification option: Tested to CWCT specification sequence B and in accordance with BS EN 13830. |
Mullion | Guidance for specification option: Insert requirents. Mullion size dependent on wind load, mullion centres and tie back positions. Transom size subject to span and glass weight and in-conjunction with architectural design. |
Sustainability data
Country of product manufacture | United Kingdom |
Recyclability | 100 |
