SERWA® Mezzanine Goods Lift

Verified by manufacturer 6 months ago

Lödige Industries

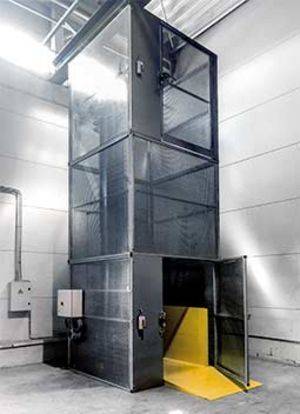

Freestanding mezzanine goods-only lift for loads up to 999 kg.

Jump to:
01784 221140 Website

Application

Goods-only lift adapted for warehouses and other buildings with mezzanine floors.

Description

Freestanding mezzanine goods-only lift for loads up to 999 kg.


Features and benefits:

  • Safe method to transport goods to/ from a mezzanine.
  • Freestanding lift structure, requires no pit, shaft or building modifications.
  • Control box includes full machine management: no separate machine room necessary.
  • Efficient electric chain drive.
  • Includes a range of safety and environmental features.
  • Low life cycle costs.
  • Easy and fast installation.
  • In accordance with European Machinery Directive 2006/42/EC.

General information

Color

Clear

Beige

Black

Blue

Bronze

Show more

Manufacturer guidance

Contact manufacturer for any colour.

Finish

Galvanized

Material

Steel

Shape

Rectangle

Length

1600 mm

Width

1100 mm

Height

2000 mm

Warranty description

One year

Uniclass

Ss_80_50_01_05 Electric accessible goods-only lift (AGOL) systemsPrimary

CAWS

X12/110 Vertical lifting platform systems

X12/110 Vertical lifting platform systems

Specification data - Electric accessible goods-only lift (AGOL) systems

System performance

Accessible goods-only and service lift system performance

Lift type

Accessible goods-only lift.

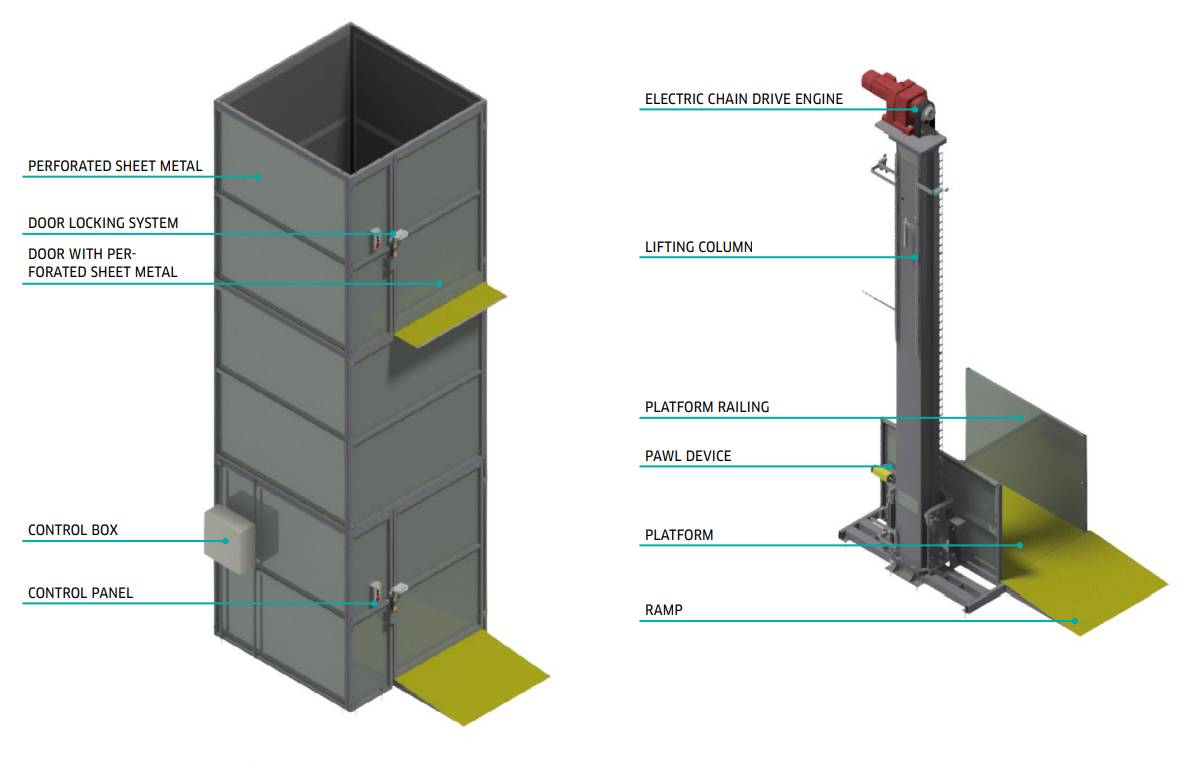

Lift components

Free-standing self-supporting lift shaft; platform; integrated drive.

Guidance for specification option:

  • Lift shaft: Pre-galvanized perforated sheet metal casing; requires no paintwork.
  • Steel platform, railing and ramp.
  • Door: Pre-galvanized perforated sheet metal.
  • Door locking system.
  • Electric chain drive engine.
  • Lifting column.
  • Pawl device.

Door configuration

Same side loading, two floors.

Through car loading, two floors.

Drive type

Machine room-less.

Drive position

Integrated in shaft head (mounted on lifting column).

Speed control

Manufacturer's standard.

Electrical identification

Electrical diagrams

Execution

Installation of the complete lift.

System completion

Testing and commissioning accessible goods-only lift systems

Rated load

Up to 999 kg.

Manufacturer guidance

Insert requirements; 500–4500* kg.

Individually configured lifts have a load range of 500–3000* kg.


Maximum load is also dependent on cabin size specified; consult manufacturer for full details.

Lift height

up to 4,000 mm

Manufacturer guidance

Insert requirements; lifting height: 2146–4096 mm.

Two stops as standard.

Platform

1100 x 1600 mm, with 1200 mm-wide ramp.

Guidance for specification option:

Useable platform size.

Ramp depth (lower floor): 935 mm. Consult manufacturer for details of upper floor ramp.

Door

1250 x 2000 mm.

Guidance for specification option:

Clear width x height.

Shaft

1870 x 1870 mm.

Guidance for specification option:

Mezzanine shaft footprint; external shaft footprint: 1870 x 1870 mm.

Colour

Manufacturer's standard.

Guidance for specification option:

Pre-galvanized perforated sheet metal casing; requires no paintwork.

Ramp/ platform railing in yellow as standard.

Manufacturer guidance

Shaft colour/ finish.

Control cabinet

Manufacturer's standard.

Guidance for specification option:

Mounted to exterior of shaft; consult manufacturer for placement options.

Speed

0.2 m/s.

Landing operating panels

Manufacturer's standard, to left-hand side of door.

Manufacturer's standard, to right-hand side of door.

Manufacturer guidance

Call & send button; with emergency stop and busy lamp.

System accessories

-

Manufacturer guidance

Insert requirements or omit.

Consult manufacturer for options.
