Sertus Shaft Single Leaf Smoke Vent - SSL-R

Sertus

Discreet, single leaf smoke vent for internal residential and commercial use.

Jump to:
+44 (0) 1483 269999 www.sertus.uk
Application

Designed for installation into smoke shafts in lobbies and corridors within residential and commercial developments to ensure clear escape routes in the event of a fire.

Description

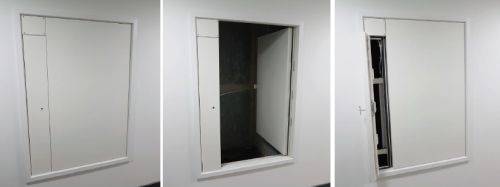

Discreet, single leaf smoke vent for internal residential and commercial use.

Features and benefits:

  • High quality.
  • Flush mounted design provides an unobtrusive finish.
  • Manufactured and certified to BS EN 12101-2.
  • Provides 1 m² of free vent area.
  • Tested to EN 1634-1 for fire rating, and EN 1634-3 for air leakage.
  • Fitted with actuator (drive open/ drive close operation).
  • Opens to 90° within 60 seconds.
  • Robust, fully welded, four-sided frame construction.
  • Provides a high level of sound reduction.
  • Can be installed vertically into a variety of plasterboard wall structures.
  • Supplied powder coated to RAL 9010 white as standard, and can be painted or coated to any wall finish on site.
  • Tested to 11,000 opening cycles (10,000 + 1,000).
  • Provides natural comfort cooling in addition to smoke ventilation.
  • Compliant with Building Regulations Approved Documents B and L.
  • Guaranteed against the effects of defective design, materials or construction for ten years, with an electrical components guarantee for 24 months.

Applications:

Designed for installation into smoke shafts in lobbies and corridors within residential and commercial developments to ensure clear escape routes in the event of a fire.

General information
Size

Structural opening size: 1000 x 1500 mm

Overall smoke vent size: 990 x 1490 mm

Smoke door opening size: 763 x 1440 mm

Access panel opening size: 170 x 1208 mm

Frame depth: 84 mm

Uniclass 2015
Natural smoke and heat exhaust ventilators (Pr_70_65_04_56)Primary
Specification data - Natural smoke and heat exhaust ventilators
Product Reference

Sertus Shaft Single Leaf Smoke Vent - SSL-R

Accessories/ Other requirements

Not required

230 V actuator

For systems requiring 230 V activation.

Fall arrest cage

Removes the requirement for the installation of grids at floor level.

Standard product features

Construction:

  • Frame: Fully welded, beaded steel.
  • Hinge: Full length, concealed piano hinge.
  • Locking: Three-point locking access panel, which opens towards the user and is supplied with a square drive key through the round keyhole in the door face after removal of the white plastic cap.
  • Back box: Pre-wired, with removable face plate.

Size:

  • Structural opening size: 1000 x 1500 mm.
  • Overall smoke vent size: 990 x 1490 mm.
  • Smoke door opening size: 763 x 1440 mm.
  • Access panel opening size: 170 x 1208 mm.
  • Frame depth: 84 mm.

Actuator:

  • Voltage: 24 V (d.c).
  • Opening angle: 90°.
  • Opening time: <60 s.
  • Pushing/ pulling force: 500 N.
  • Stroke length: 1000 mm.
  • Locking pressure: 2000 N.
  • Protection degree: IP32.
  • Temperature: -5°C to 55°C.
  • Speed (fire): 17 mm/s.
  • Speed (comfort): 10 mm/s.

Technical characteristics:

- General:

  • Fire rating (to BS EN 1634-1): 60 minutes.
  • Air leakage (positive and negative pressure, to BS EN 1634-3): 25 Pa (Pass).

- Performance (to BS EN 12101-2):

  • Reliability (fire): RE11,000 (10,000 + 1,000).
  • Resistance to heat: B300.

Product Options

Accessories/ Other requirements:

Can be supplied with a Vent Control Panel or integrated with the Building Management System (BMS). Consult manufacturer for further details and insert requirements.
