Sertus Roof Ventilation Collar - RVC-R
Application

For installation below any smoke and heat ventilation unit. For residential use.

Description

Environmental ventilation collar, designed for installation below any smoke and heat ventilation unit.

Features and benefits:

  • Allows environmental ventilation to continue operation regardless of weather conditions.

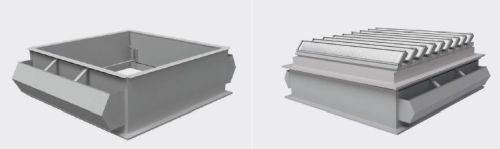

  • Comprises of an aluminium upstand and two side flaps, which are driven by a single 24 V (d.c.) actuator. The flaps are centre pivot with brush seals, and are protected by a weather cowl which enables ventilation with no rain ingress.
  • Can be controlled to open on environment ventilation and close on fire signal.
  • The base flange is supplied to install to the builder's upstand, into profile roofs or patent glazed systems.
  • Wide range of sizes available.
  • When installed in accordance with the manufacturer’s recommendations, this product is expected to exceed the life of the roof covering.
  • Guaranteed against the effects of defective design, materials or construction for ten years.

Applications:

For installation below any smoke and heat ventilation unit. For residential use.

General information
Specification data - Natural smoke and heat exhaust ventilators

Product Reference

Sertus Roof Ventilation Collar - RVC-R

Type

Insulated

Uninsulated

Size

-

Height

460 mm

560 mm

770 mm

850 mm

Width

600–3000 mm, insert requirements.

Length

500–3000 mm, insert requirements.

Colour/ Finish

Mill finish

Standard.

RAL, colour

On request, for both internal and external coating. Consult manufacturer and insert requirements.

Accessories/ Other requirements

Consult manufacturer for details and insert requirements.

Standard product features

Actuator:

Voltage: 24 V (d.c).

Product Options

Size:

Free vent area will depend on the size combinations specified.
