Series 41 Heavy Duty Lift Out

Series 41 Heavy Duty Lift Out

Selectaglaze Ltd

Heavy duty framing using Series 41 hinged profiles without hinges. Suitable for treating large or curved windows which are rarely opened but need occasional access.

Jump to:
+44 (0)1727 837271 www.selectaglaze.co.uk
Description

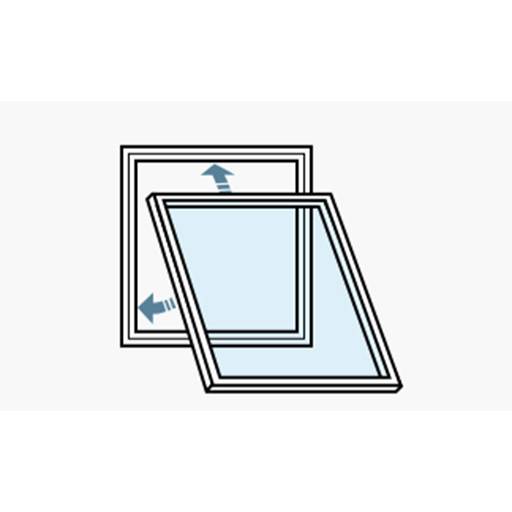

Heavy-duty lift-out (LO) secondary glazing unit suitable for treating large or curved windows which are rarely opened but need occasional access. Supports thicker glass for higher noise insulation.

Lift-outs can be used in combination with other window styles as side lights, over lights or fitted to large rectangular windows behind bulkheads. Rectangular frames may be linked with a colour matched aluminium transom/ mullion section. Release of the catches allows the panel to be removed for occasional cleaning and maintenance.

Will reduce heat loss by up to 50% using standard glass, and by up to 65% with a thermally efficient glass (low emissivity). High performance compression seals will almost eliminate drafts and ensure much greater comfort near the window.

Approvals:

  • Blast tested to ISO 16933 Classification code EXV 33.
  • Secured by Design accredited.

General information

Size

As drawing

Insert details.

As schedule

Insert details.

Features

Twin compression seals, concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion, curved frame head available

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015

Ss_25_60_35_65 Putty-fronted single glazing systemsPrimary

CAWS

L10/58 Secondary glazing system

L10/580 Secondary glazing system

Specification data - Putty-fronted single glazing systems

Product Reference

Series 41 heavy-duty lift-out (LO)

Style

As primary window designs/ sightlines

Two pane, vertical sliding

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Frame

-

Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

High gloss

Matt

Semi-gloss

Glazing

-

Type

Laminated

Laminated, low-E

Toughened

Toughened, low-E

Thickness

6 mm

6.4 mm

6.8 mm

7.5 mm

8 mm

8.8 mm

9.5 mm

10 mm

10.8 mm

11.3 mm

11.5 mm

12 mm

24 mm (sealed unit)

28 mm (sealed unit)

Between glass blinds only.

Glazing gasket

Black

Standard

White

Ironmongery

-

Handles

See 'Options' below and insert requirements.

Locks

Not required

L7 spring catch, white

L7 spring catch, satin chrome

L15 multipoint locking single casement (SBD/ EXV 33)

L25 multipoint locking double casement (SBD)

L29 Sprung restrictor stay

Trickle ventilators

Not required

Over the frame acoustic ventilator

Over the frame standard ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

- Style:

Standard.

Product Options

Size:

  • Sash, minimum (h x w): 700 x 450 mm.
  • Sash, maximum (h x w): 2400 x 1200 mm.

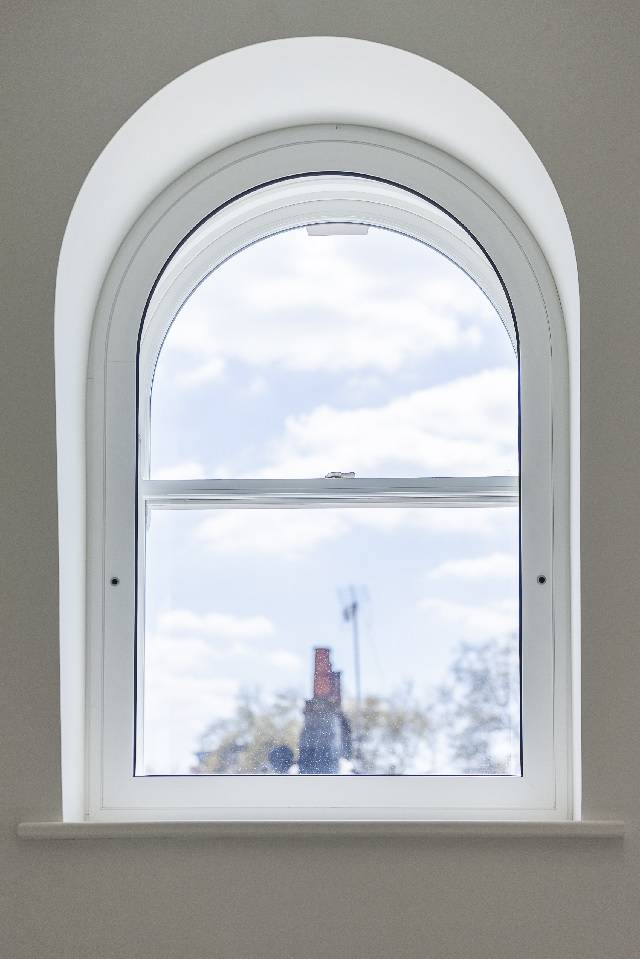

  • Curved head or jamb minimum radius: 450 mm.
  • Curved on plan minimum radius: 1800 mm.

Thermal performance:

Values of <2.9 W/m²K available; consult manufacturer for details.

Ironmongery:

- Handles:

  • H6 Slimline handle (lockable), black.
  • H6 Slimline handle (lockable), gold.
  • H6 Slimline handle (lockable), polished chrome.
  • H6 Slimline handle (lockable), satin chrome.
  • H6 Slimline handle (lockable), white.
  • H7 Non-locking handle, colour matched to frame, standard.
  • H8 Lockable handle, black.
  • H8 Lockable handle, white.
  • H9 Rosette (square drive/removable key), colour matched to frame.
  • H12 Peardrop handle (Allen key lockable), black.
  • H12 Peardrop handle (Allen key lockable), polished brass.
  • H12 Peardrop handle (Allen key lockable), polished chrome.
  • H15 Reeded handle (Allen key lockable), black.
  • H15 Reeded handle (Allen key lockable), polished brass.
  • H15 Reeded handle (Allen key lockable), polished chrome.
  • H15 Reeded handle (Allen key lockable), satin chrome.
  • H16 Monkeytail handle (Allen key lockable), black.
  • H18 Vivo low profile handle, colour matched to frame.
  • H18 Vivo low profile handle, polished chrome.
  • H18 Vivo low profile handle, satin chrome.
  • H21 Flush lock with cover disk, colour matched to frame.
  • H22 Flush lock with security cover plate, colour matched to frame.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
Download now from NBS National BIM Library
