Description

Heavy duty hinged casement (HC) secondary glazing, with bead options for heavier glass and sealed units. Offers full access to the outer window, and is designed to be unobtrusive with no mullions or transoms to impede the view. The unit incorporates strong, purpose designed, colour matched flush hinges and concealed multi-point locking. Handles are powder coated and colour matched to frame (or closest colour possible for anodizing).

Suitable for large windows and doors, clean and secure environments or, when glazed with sealed units, optimum thermal insulation. All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section. Other features include an adjustable stay arm (up to 90°) and twin compression seals.

Suitable for applications where access to the primary window is only required for cleaning and maintenance purposes. Larger glazing beads accommodate the use of sealed units.

Will reduce heat loss by up to 50% using standard glass, up to 65% with a thermally efficient glass (low emissivity). High performance compression seals will almost eliminate drafts and ensure much greater comfort near the window.

Thermal performance:

U-values as low as 1.79 W/m²K can be achieved (timber primary window and low-E glass in secondary glazing).

Approvals:

  • Acoustic: Tested in accordance with BS EN ISO 140-3:1995 for acoustic performance.
  • Security: Secured by Design (SBD) accredited.

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Features

Twin compression seals, concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion, 90° restrictor stay, curved frame available

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015
Bead-fixed single glazing systems (Ss_25_60_35_08)Primary
Specification data - Bead-fixed single glazing systems
Product Reference

Series 41 Heavy Duty Hinged Casement (HC)

Style

As primary window designs/ sightlines

Bottom hung hinged casement

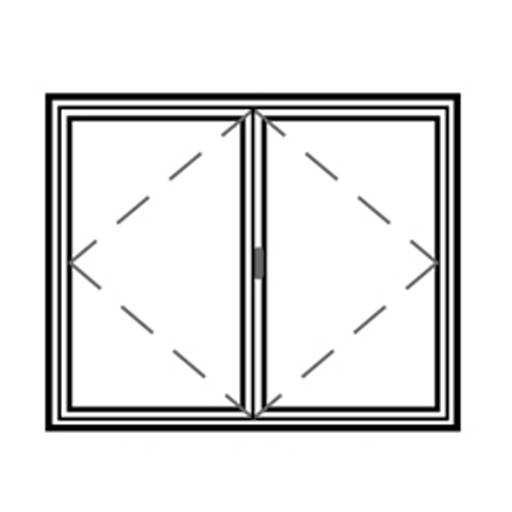

Double side hung hinged casement

Single side hung hinged casement

Stable door hinged casement

Top hung hinged casement

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Blast performance

Not required

ISO 16933 EXV 33

Single side hung hinged casement only.

SecurityRating

Not required

Secured by Design

Frame -
Style

No threshold

Standard

Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

High gloss

Matt

Semi-gloss

Glazing -
Type

Between glass blinds

Heated glass

Laminated

Laminated, low-E

Sealed unit

Switchable privacy

Toughened

Toughened, low-E

Thickness

6 mm

6.4 mm

6.8 mm

7.5 mm

8 mm

8.8 mm

9.5 mm

10mm

10.8 mm

11.3 mm

11.5 mm

12 mm

24 mm (sealed unit)

28 mm (sealed unit)

Between glass blinds only.

Glazing gasket

Black

White

Ironmongery -
Handles

See 'Options' below and insert requirements.

Locks

Not required

L29 Sprung restrictor stay

Trickle ventilators

Not required

Over the frame standard ventilator

Over the frame acoustic ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

Product Options

Size:

- Double side hung hinged casement:

  • Minimum (h x w): 700 x 450 mm.
  • Maximum (h x w): 2700 x 3000 mm.

- Single side hung hinged casement:

  • Minimum (h x w): 700 x 450 mm.
  • Maximum (h x w): 2700 x 1500 mm.

- Stable door hinged casement:

  • Maximum (h x w): 2700 x 1350 mm.

- Bottom/ top hung hinged casement:

  • Minimum (h x w): 400 x 500 mm.
  • Maximum (h x w): 1500 x 1200 mm.

- Curved head or jamb minimum radius:

450 mm.

- Curved on plan minimum radius:

1800 mm.

Ironmongery:

- Handles:

  • H6 Slimline handle (lockable), white.
  • H6 Slimline handle (lockable), black.
  • H6 Slimline handle (lockable), gold.
  • H6 Slimline handle (lockable), polished chrome.
  • H6 Slimline handle (lockable), satin chrome.
  • H7 Non-locking handle, colour matched to frame - standard.
  • H8 Lockable handle, white.
  • H8 Lockable handle, black.
  • H9 Rosette (square drive/ removable key), colour matched to frame.
  • H12 Peardrop handle (Allen key lockable), black.
  • H12 Peardrop handle (Allen key lockable), polished brass.
  • H12 Peardrop handle (Allen key lockable), polished chrome.
  • H15 Reeded handle (Allen key lockable), black.
  • H15 Reeded handle (Allen key lockable), polished brass.
  • H15 Reeded handle (Allen key lockable), polished chrome.
  • H15 Reeded handle (Allen key lockable), satin chrome.
  • H16 Monkeytail handle (Allen key lockable), black.
  • H18 Vivo low profile handle, polished chrome.
  • H18 Vivo low profile handle, satin chrome.
  • H18 Vivo low profile handle, colour matched to frame.
  • H21 Flush lock with cover disk, colour matched to frame.
  • H22 Flush lock with security cover plate, colour matched to frame.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
