Series 3000 Recessed (High Output) 3583 LED CG-Line - Self-Contained Safety Luminaire
Verified by manufacturer 6 months ago
Emergency pin spot self-contained safety luminaire.
Application
- Recessed ceiling mounted.
- High spacing and mounting heights up to 9 m.
- Suitable applications include; hotels, offices, cinemas, theatres, museums and hospitals.
Description

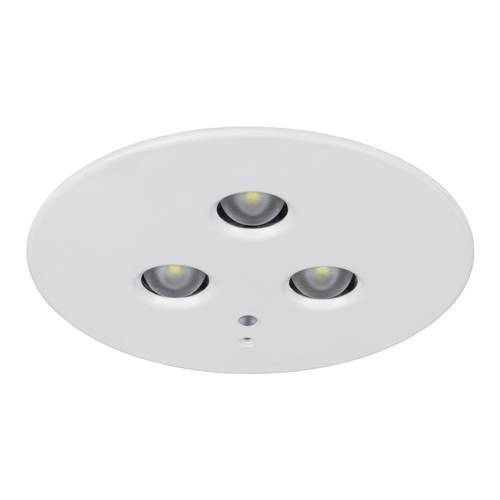

The 3583 LED is a recessed safety luminaire which provides a lumen output of 385 lm with a wide beam distribution. It can be used for various applications including areas with high mounting heights up to 9 m. One, three or eight hours rated operating duration can be freely specified according to the application. 3583 LED is equipped with an environmental-friendly Li-Ion battery technology. The use of LEDs, automatic testing and monitoring devices (CGLine+) significantly reduces the operating and maintenance costs of the installation.
Features and benefits:
- Recessed luminaire for better integration in the building.
- 385 lm light output
- Selectable duration of 1 h, 3 h or 8 h.
- Li-Ion battery.
- CGLine+ technology.
- Designed for high spacing and mounting heights up to 9 m.
- Common ceiling cut-out diameter of 68 mm.
- Steel sheet bezel and polycarbonate module.
General information
Color | White |
Material | Steel Polycarbonate |
Shape | Circle |
Length | 80 mm |
Width | 80 mm |
Height | 30 mm |
Uniclass | |
CAWS | V90/530 Self-contained emergency luminaires V90/510 General-purpose luminaires V90/510 General purpose luminaires V90/510 Luminaires |
Specification data - Recessed luminaires
Standards | To BS EN 60598-2-22. |
Third-party certification | ENEC mark. |
Luminaire description | Recessed safety luminaire for escape-route and open-area lighting. |
Classification | |
Electric shock | Class II. |
Ingress protection (minimum) | IP20. |
Circumstances of use | Normal. |
Impact protection (minimum) | IK03. |
Controlgear position | Integral within luminaire. |
Internal fuse | Not required. |
Nominal voltage | 230 V a.c.Guidance for specification option: 50/60 Hz. |
LED luminaires | |
Wattage | 6.6 W.Guidance for specification option: 7 VA. |
Useful life | Luminous flux at the end of rated operating time, 100% at 1 h; 70% at 3 h; 25% at 8 h. |
Emergency version | |
Standard | To BS EN 60598-2-22. |
Classification | |
Type | X. |
Mode of operation | 0.1. |
Duration of emergency mode (minimum) | 60.Guidance for specification option: Selectable emergency duration of 1 h, 3 h or 8 h. |
Testing | CGLine+. Manufacturer guidanceTesting system. |
Luminous flux | 385 lm. |
Batteries | Lithium ion battery, 3.7 V/ 4 Ah. |
Housing | Sheet steel. |
Housing colour | White. |
Dimensions | 80 x 80 x 30 mm. Manufacturer guidanceLength x width x height. |
Mounting | Recessed ceiling mounting. |
Literature
Series 3000 Recessed (High Output) 3583 LED CG-Line
