Description

Slimline lift out (LO) secondary glazing unit, removable to provide easy access to the outer window, facilitating cleaning and maintenance. All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section.

Suitable for listed buildings where the primary glazing cannot be changed. It is a reversible adaptation, so generally accepted by heritage agencies.

Will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally efficient glass (low emissivity). The system is also fitted with a mixture of high performance brush and compression seals to minimise drafts.

Thermal performance:

U-values as low as 1.79 W/m²K (timber primary window and low-E glass in secondary glazing).

Approvals:

Acoustic: Tested in accordance with BS EN ISO 140-3:1995 for acoustic performance between 38 and 45 dB.

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Features

Concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015
Putty-fronted single glazing systems (Ss_25_60_35_65)Primary
Specification data - Putty-fronted single glazing systems
Product Reference

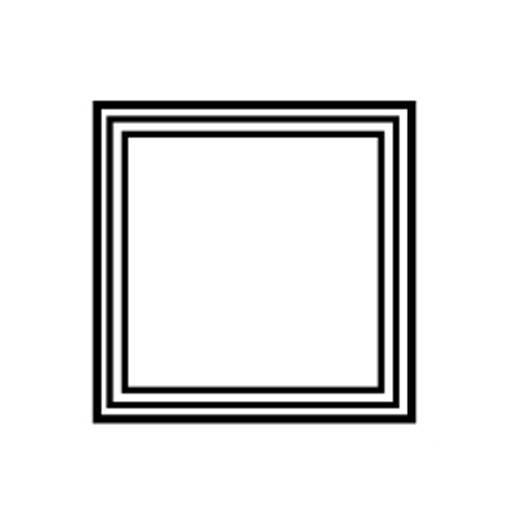

Series 30 Slimline Lift Out (LO)

Style

Lift out

Standard

Shuffle out

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Frame -
Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

High gloss

Matt

Semi-gloss

Glazing -
Type

Laminated

Laminated, low-E

Toughened

Toughened, low-E

Thickness

4 mm

6 mm

6.4 mm

6.8 mm

Glazing gasket

Black

White

Ironmongery -
Handles

H1 Integral finger pull, colour matched to frame

H3 Recessed finger pull, colour matched to frame

Locks

Not required

L11 mini cam lock, silver

L12 screwlock, white

L12 screwlock, black

Trickle ventilators

Not required

Over the frame standard ventilator

Over the frame acoustic ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

- Style:

Standard.

Product Options

Size:

- Lift out:

  • Sash, minimum (h x w): 300 x 350 mm.
  • Sash, maximum (h x w): 1400 x 1000 mm.

- Shuffle out:

  • Sash, minimum (h x w): 350 x 250 mm.
  • Sash, maximum (h x w): 1700 x 600 mm.

Thermal performance:

Values of <2.9 W/m²K available; consult manufacturer for details.

Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2015 2 1.3
