Application

Designed for creating a level surface for mounting plant and equipment including heating, ventilation, air conditioning, and refrigeration (HVACR) units on steep pitched and saw-toothed roofs.

Description

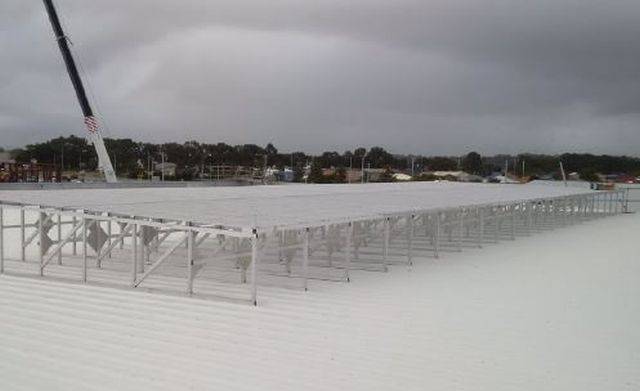

Structural aluminium platform for steep pitched roofs or where elevation is required.

Features and benefits:

  • Extra height helps to increase air flow, therefore improving the performance and longevity of roof equipment. The added height also allows for easier integration of equipment with vertical discharge ducts.
  • Provides greater access under the platform for routine inspections and maintenance.
  • Distributes the load evenly, reducing the structural requirements of the roof.
  • Configurable to suit project requirements.
  • Lightweight aluminium design ensures ease of carrying, craning, and assembly.
  • Will not corrode.
  • Penetration-free, making placement and position on the roof flexible to suit project requirements.
  • Allows sufficient area around the units for access and maintenance.
  • Supplied in kit form for easy installation.
  • Compliant with BS EN 516: 2006 and BS EN 1090-3: 2008.

Application:

Designed for creating a level surface for mounting plant and equipment including heating, ventilation, air conditioning, and refrigeration (HVACR) units on steep pitched and saw-toothed roofs.

General information
Size

Any size in 600 mm increments from 1200 x 1200 mm to 18 000 mm (down roof) x 60 000 mm (across roof).

Features

Robust, selectable starting height design, supplied in kit form

Finish

Mill finish

Material

Structure: Extruded aluminium; Fixings and bases: Stainless steel

Shape

Flat surface: Square or rectangular, with base structure to suit roof pitch

WarrantyDescription

20-year warranty

Uniclass 2015 Roof equipment supports (Pr_80_77_27_73)
Specification data
Product Reference

Series 3 Platform

Components -
Support base -
Type

Stainless steel

Support frame -
Type

Extruded 60 x 40 mm aluminium rectangular hollow section

Decking and flooring -
Material

Extruded and expanded 13 mm aluminium diamond pattern mesh

Applied anti-slip treatment

Top surface of the aluminium mesh is knurled to provide anti-slip surface

Size

Any size in 600 mm increments from 1200 x 1200 mm to 18 000 mm (down roof) x 60 000 mm (across roof).

Frame fixing to superstructure

Fixed

VHB foam rubber tape - Pre-adhered to underside for structural members in contact with the superstructure.

Not fixed

6 mm neoprene foam rubber tape. Penetration-less.

Assembly connectors

Stainless steel structural tek screws, welded flanges and structural plates

Accessories/ Optional surrounds

Not required

Acoustic+

For acoustic screening by reflection and absorption. Height options: 1200, 1600, 2000, 2400 mm above walking surface.

Guardrail

For edge protection where the platform is 300 mm above the adjacent surface.

Peacemaker

For acoustic screening by absorption. Height options: 1200, 1600, 2000, 2400 mm above walking surface.

Soundshield

For acoustic screening by reflection. Height options: 1200, 1600, 2000, 2400 mm above walking surface.

Standard screen wall

For aesthetic screening of the plant, equipment and ductwork. Height options: 1200, 1600, 2000, 2400 mm above walking surface.

Live load rating

2.5 kPa/ 255 kg/m². Load sharing design transfers centrally located load over the footprint size

Pitch

Insert requirements.

Weight

20 kg/m²

Average across most common roof pitches.

Standard product features

Colour:

Natural aluminium.

Features:

Robust, selectable starting height design, supplied in kit form.

Finish:

Mill finish.

Material:

Structure: Extruded aluminium; Fixings and bases: Stainless steel.

Shape:

Flat surface: Square or rectangular, with base structure to suit roof pitch.

Size:

Any size in 600 mm increments from 1200 x 1200 mm to 18 000 mm (down roof) x 60 000 mm (across roof).

Warranty description:

20-year warranty.

Recycled content:

Up to 30%.

Recyclability:

100% recyclable.

Embodied carbon:

Approximately 9 kg·CO2e/kg - cradle-to-gate.

Environmental information
Embodied carbon

Approximately 9 kg·CO2e/kg - cradle-to-gate

Recyclability

100% recyclable

Recycled content

Up to 30%
