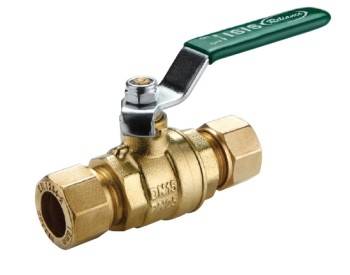

Series 2415V DZR Compression Ball Valve
Verified by manufacturer 5 months ago
2415V735 - DN 12.5
2415V735 - DN 12.5
Statement of compliance
Certificate type
Compression DZR ball valve.
Application
Fluids. Installations where aggressive water causes dezincification in standard brass alloys and weakens the material molecular structure. Hot and chilled water applications in building services, including domestic water applications and sea water installations.
Description
Compression DZR ball valve.
Features and benefits:
- Compression DZR full bore Ball Valve
- ISO 6957 Corrosion Proof
- Temperature rating: -15° to +120°
- Maximum Working Pressure for fluids:
- 15–54 mm: PN16 up to 100ºC
- 15–54 mm compression fitting
General information
Color | Gold |
Finish | Chrome Brass Manufacturer guidanceDZR |
Material | Brass Guidance for specification option: DZR Brass. |
Warranty description | 18 months Manufacturer guidance18 months. |
Uniclass | |
CAWS | S90/625 Ball valves S90/625 Ball valves |
Product range |
Specification data - Ball valves
Material | Body, Stem, Chromium polished Ball CW602N(Pb<2.2%). Gland CW617N. Seats high resistance virgin PTFE • Stem Packing O-ring EPDM. Lever & Self locking Fixing Screw: Zinc-plated steel. |
Connections | Copper pipe with compression brass olives. |
Finish | DZR Brass Valve, Chrome-plated ball. |
WorkingPressure | Up to 54 mm: PN40 up to 20ºC, PN25 up to 70ºC, PN16 up to 100ºC. |
Working temperature | -15°C to 120°C. |
NominalDiameter | ∅15 mm. |
Handle length (mm) | 85 mm. |
Length | 80.1 mm Manufacturer guidanceCompressor length, without handle. |
Flowrate | 15 Kv. |
Sustainability data
Country of material origin | Italy |
Country of product manufacture | Italy |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Third party certifications
Statement of compliance
Effebi Ball Valves PED Certificate
Literature
Compression DZR Ball Valve 2415V Series
