Slimline horizontal sliding (HS) secondary glazing unit, available with two, three or four sliding sash options. Removable to provide easy access to the outer window, facilitating cleaning and maintenance.

Sashes have integral full height finger pulls, 23 mm wide interlock stile and twin silicone treated, grey polypropylene pile weatherseals. All fixings are concealed within the frame, which may be linked to other frames with a colour-matched mullion/ transom section.

Suitable for listed buildings where the primary glazing cannot be changed. It is a reversible adaptation, so generally accepted by heritage agencies.

Will reduce heat loss by up to 50% using standard glass and up to 65% with a thermally efficient glass (low emissivity). High performance brush seals will almost eliminate drafts and ensure greater comfort near the window.

Thermal performance:

U-values as low as 1.8 W/m²K (timber primary window and low-E glass in secondary glazing).

Approvals:

  • Acoustic: Tested in accordance with BS EN ISO 140-3: 1995 for acoustic performance. Between 45 and 47 dB can be achieved.
  • Blast tested to ISO 16933 Classification code EXV 45 (two and three pane HS only).

General information
Size

As drawing

Insert details.

As schedule

Insert details.

Features

Twin compression seals, concealed fixings, can be coupled to other units with colour matched aluminium alloy transom/ mullion, low profile running track

Material

Extruded aluminium alloy 6063-T6

WarrantyDescription

Ten year manufacturers guarantee subject to Selectaglaze terms and conditions

Uniclass 2015 Putty-fronted single glazing systems (Ss_25_60_35_65)
Specification data
Product Reference

Series 10 Slimline Horizontal Sliding (HS)

Style

As primary window designs/ sightlines

Horizontal sliding, two pane

Horizontal sliding, three pane

Horizontal sliding, three pane, centre

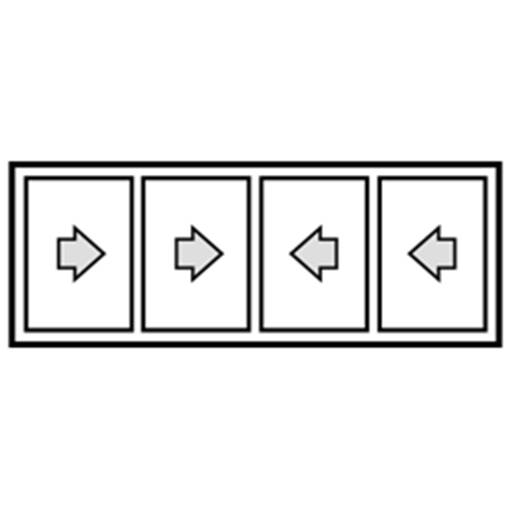

Horizontal sliding, four pane

Size

As drawing

Insert details.

As schedule

Insert details.

Acoustic performance

Insert required dB level.

Thermal performance

See 'Options' below and insert requirements.

Blast performance

Not required

ISO 16933 EXV 45

Horizontal sliding, two pane or three pane only.

Frame -
Style

Standard

Low profile

Triple

Frame finish

Anodizing, Analok bronze AA25

Anodizing, Analok silver AA10

Polyester powder-coating, HIPCA 9910 semi-gloss white

Polyester powder-coating, RAL

Insert RAL colour.

Wood grain effect

Gloss level

Not required

High gloss

Matt

Semi-gloss

Glazing -
Type

Laminated

Laminated, low-E

Toughened

Toughened, low-E

Thickness

4 mm

6 mm

6.4 mm

6.8 mm

Glazing gasket

Black

White

Ironmongery -
Handles

H1 integral finger pull, colour matched to frame

H3 recessed finger pull, colour matched to frame

Locks

Not required

L1 shoot bolt

Internal, not seen.

L2 fitch catch (lockable), white

L2 fitch catch (lockable), black

L2 fitch catch (lockable), brushed steel

L2 fitch catch (lockable), polished chrome

L2 fitch catch (lockable), gold

L4 plunge lock, polished chrome

L13 sliding latch, colour matched to frame

Trickle ventilators

Not required

Over the frame standard ventilator

Over the frame standard ventilator

Acoustic reveal linings

Not required

Vinyl faced acoustic foam

Standard product features

Frame:

- Material:

Extruded aluminium alloy 6063-T6.

Product Options

Size:

Sash height to width ratio should not normally exceed 4:1.

  • Sash, minimum (h x w): 350 x 250 mm.
  • Sash, maximum (h x w): 2200 x 1400 mm.
  • Curved head or jamb minimum radius: 450 mm.

Thermal performance:

Values of <2.9 W/m²K available; consult manufacturer for details.
