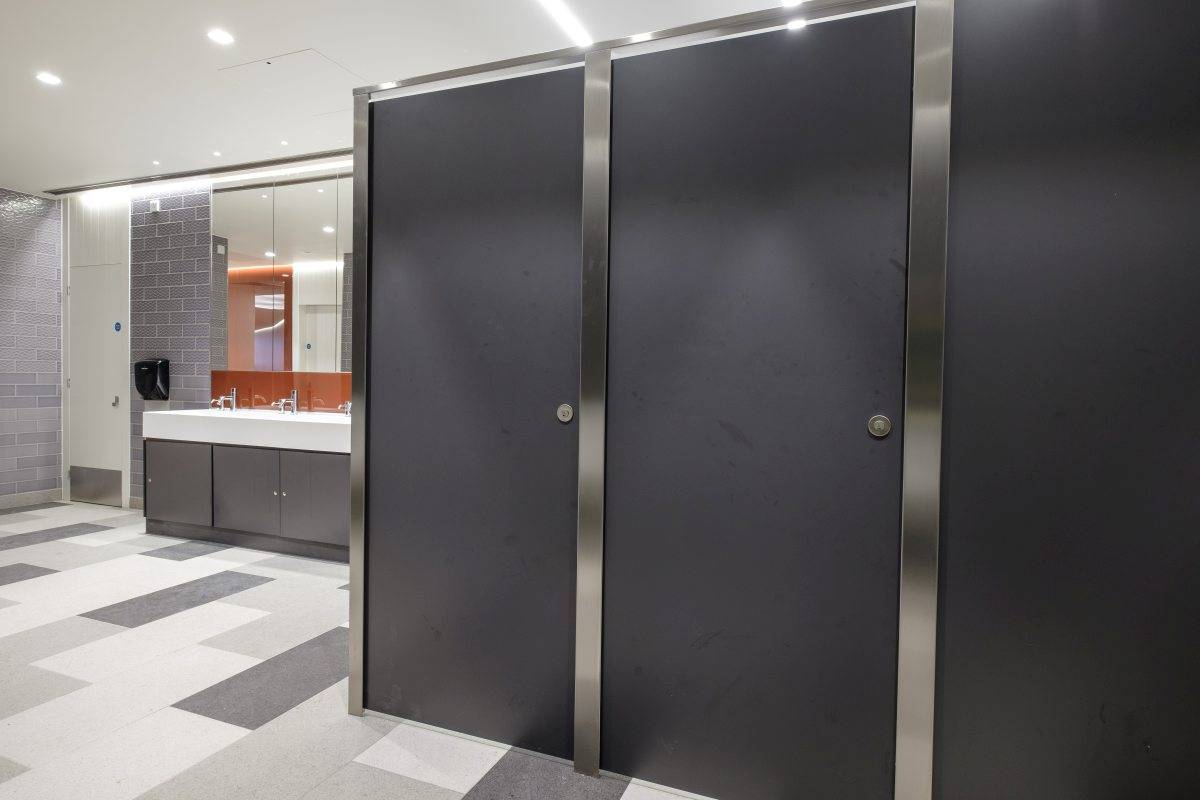

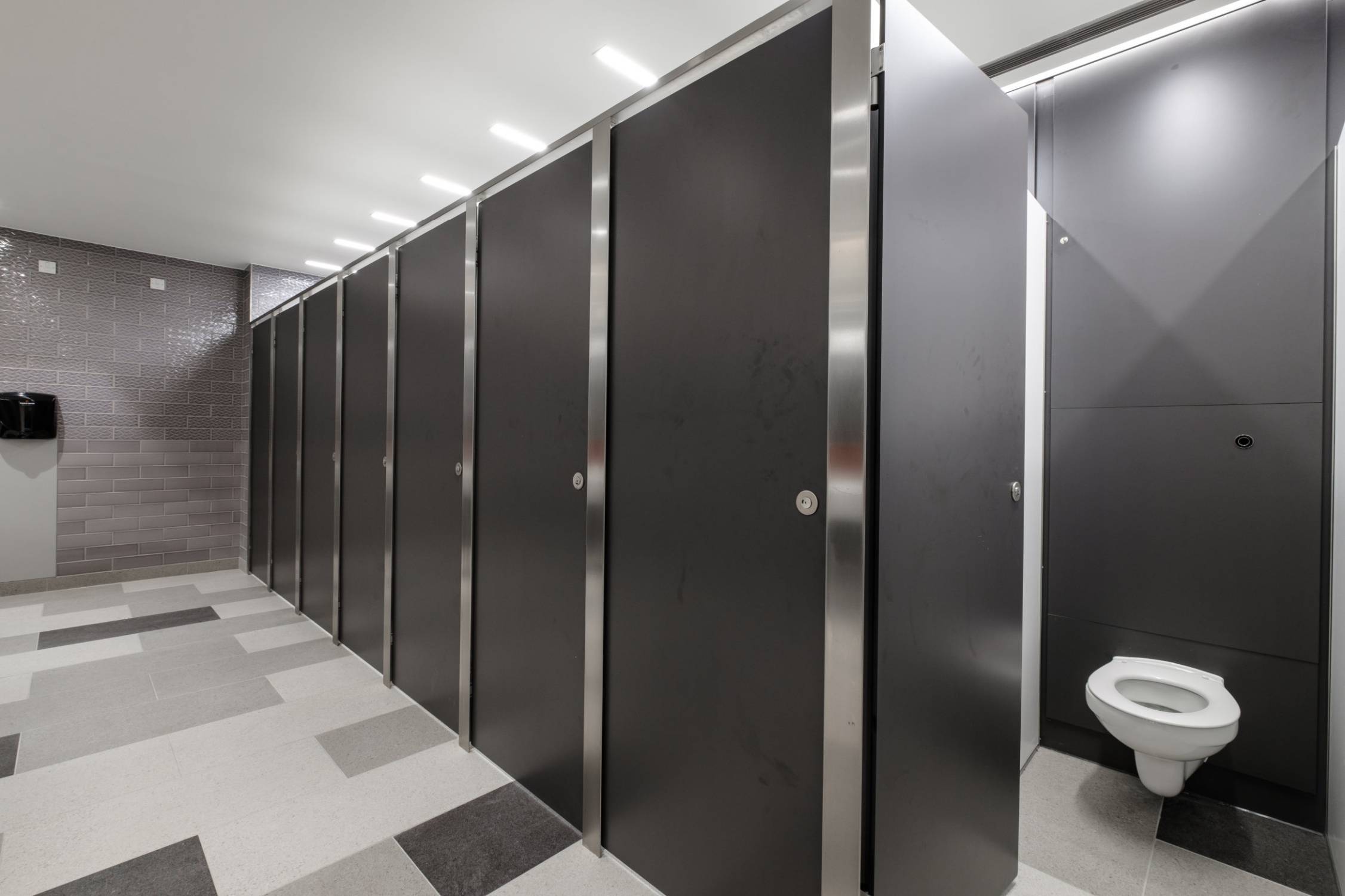

Name: Senza Cubicles - Toilet cubicle
Brand: Washroom Washroom Ltd
SKU: wM5LZjPnvUvcbMFyGx1CdU

Material

Guidance for specification option:

A wide range of materials available, please contact manufacturer for details.

Size

Guidance for specification option:

2100 mm (optional floor to ceiling cubicles are also available with minimal floor clearance for increased privacy).

Manufacturer guidance

2040 mm overall height including 150 mm floor clearance.

Width

Manufacturer guidance

1500–1800 mm.

Height

2100 mm

Warranty description

One year

Guidance for specification option:

From practical completion

Uniclass

Ss_25_12_60_60 Panel cubicle systemsPrimary

CAWS

K32/10 Panel cubicles

K32/120 Panel cubicles

Panels

High pressure laminate.

Guidance for specification option:

Available in a choice of materials including HPL, solid grade laminate (SGL), veneer and glass.

Solid grade laminate.

Glass.

Veneer.

Panel supports

Pedestal legs.

Pilasters

Slimline stainless section.

Manufacturer guidance

Pilaster finish:

Contemporary slimline aluminium extrusion 76 x 6 mm front profile. Satin anodized as standard. Other finishes available upon request subject to surcharge.

Doors

High pressure laminate.

Solid grade laminate.

Glass.

Veneer.

Manufacturer guidance

Available in a choice of materials including HPL, solid grade laminate (SGL), veneer and glass.

Lippings

Radiused vertical edges.

Manufacturer guidance

Edge treatment:

SenzaGv: All edges polished.
SenzaHPL, SenzaMFC and SenzaGhpl: Edges lipped with matching laminate or corresponding PVC.
SenzaV: All edges lipped in corresponding hardwood, vertical edges to run through.

Hardware

Stainless steel indicator bolt.

Hinges.

Channel cleats.

Coat hook.

System accessories

Grab rail.

Hand rail.

Manufacturer guidance

Cubicles are available in configurations to comply with Approved Document M, complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails and hand rail are also available.

Type

SenzaGhpl.

Guidance for specification option:

Glass doors with laminate partitions.

SenzaGv.

Guidance for specification option:

Glass doors and real wood veneer partitions.

SenzaHPL.

Guidance for specification option:

Laminate doors.

SenzaMFC.

Guidance for specification option:

MFC doors.

SenzaV.

Guidance for specification option:

Real wood veneer doors.

Manufacturer guidance

Type:

- Glass doors with laminate partitions (SenzaGhpl):

Doors: 10 mm toughened and screen printed safety glass.
Partitions: 18 mm MR MDF faced on both sided with high pressure laminate (HPL).

- Glass doors and real wood veneer partitions (SenzaGv):

Doors: 10 mm toughened and screen printed safety glass.
Partitions: 18 mm MR MDF faced on both sided with real wood veneer.

- Laminate doors (SenzaHPL):

Doors and partitions: 18 mm MR MDF faced on both sides with high pressure laminate (HPL).

- MFC doors (SenzaMFC):

Doors and partitions: 19 mm moisture resistance (MR) melamine faced chipboard (MFC).

- Real wood veneer doors (SenzaV):

Doors and partitions: 18 mm MR MDF faced on both sides with real wood veneer.

Edge treatment

Manufacturer's standard.

Guidance for specification option:

SenzaGv and SenzaV.

Legs

Not required.

Required.

Manufacturer guidance

Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels, not required as main pilaster extended to floor.

Colour

Manufacturer guidance

To be confirmed from WW standard range, subject to depth of partition.

Platform

Compatible

Version

IFC

IFC2X3

Revit

Revit 2015

Material	Guidance for specification option: A wide range of materials available, please contact manufacturer for details.
Size	Guidance for specification option: 2100 mm (optional floor to ceiling cubicles are also available with minimal floor clearance for increased privacy). Manufacturer guidance 2040 mm overall height including 150 mm floor clearance.
Width	- Manufacturer guidance 1500–1800 mm.
Height	2100 mm
Warranty description	One year Guidance for specification option: From practical completion

Panels	High pressure laminate. Guidance for specification option: Available in a choice of materials including HPL, solid grade laminate (SGL), veneer and glass. Solid grade laminate. Glass. Veneer.
Panel supports	Pedestal legs.
Pilasters	Slimline stainless section. Manufacturer guidance Pilaster finish: Contemporary slimline aluminium extrusion 76 x 6 mm front profile. Satin anodized as standard. Other finishes available upon request subject to surcharge.
Doors	High pressure laminate. Solid grade laminate. Glass. Veneer. Manufacturer guidance Available in a choice of materials including HPL, solid grade laminate (SGL), veneer and glass.
Lippings	Radiused vertical edges. Manufacturer guidance Edge treatment: SenzaGv: All edges polished. SenzaHPL, SenzaMFC and SenzaGhpl: Edges lipped with matching laminate or corresponding PVC. SenzaV: All edges lipped in corresponding hardwood, vertical edges to run through.
Hardware	Stainless steel indicator bolt. Hinges. Channel cleats. Coat hook.
System accessories	Grab rail. Hand rail. Manufacturer guidance Cubicles are available in configurations to comply with Approved Document M, complete with outward opening doors. A standard stainless steel pull handle is supplied to the outside face of all outward opening cubicle doors. Complementary grab rails and hand rail are also available.

Type	SenzaGhpl. Guidance for specification option: Glass doors with laminate partitions. SenzaGv. Guidance for specification option: Glass doors and real wood veneer partitions. SenzaHPL. Guidance for specification option: Laminate doors. SenzaMFC. Guidance for specification option: MFC doors. SenzaV. Guidance for specification option: Real wood veneer doors. Manufacturer guidance Type: - Glass doors with laminate partitions (SenzaGhpl): Doors: 10 mm toughened and screen printed safety glass. Partitions: 18 mm MR MDF faced on both sided with high pressure laminate (HPL). - Glass doors and real wood veneer partitions (SenzaGv): Doors: 10 mm toughened and screen printed safety glass. Partitions: 18 mm MR MDF faced on both sided with real wood veneer. - Laminate doors (SenzaHPL): Doors and partitions: 18 mm MR MDF faced on both sides with high pressure laminate (HPL). - MFC doors (SenzaMFC): Doors and partitions: 19 mm moisture resistance (MR) melamine faced chipboard (MFC). - Real wood veneer doors (SenzaV): Doors and partitions: 18 mm MR MDF faced on both sides with real wood veneer.
Edge treatment	Manufacturer's standard. Guidance for specification option: SenzaGv and SenzaV.
Legs	Not required. Required. Manufacturer guidance Tubular and rounded off design manufactured from satin anodized aluminium, fixed to partition panel. Adjustable to suit uneven floor levels, not required as main pilaster extended to floor.
Colour	- Manufacturer guidance To be confirmed from WW standard range, subject to depth of partition.
