SentryGlas® Translucent White - Laminated glass interlayer
Verified by manufacturer 2 months ago
Ionoplast interlayer
Application
- SentryGlas® is the best choice, with over 20 years of outdoor exposure, for open edge applications that require the very best edge durability and optics.
- SentryGlas® is recommended for applications that require the highest structural performance over a broad range of temperatures and loads
- SentryGlas® is best for Level E (essential facility) protection
- SentryGlas® recommended for large glass, high wind loads, or dry glaze systems.
Description
Ionoplast interlayer for use in laminated safety glass. Open edge design thanks to SentryGlas®.
High adhesion: Specially designed for laminated safety glass, made with heat strengthened or tempered glass. It reduces the risk of edge delamination. Superior post breakage and structural properties.
- SentryGlas® is specified by the US State Department for higher bomb blast requirements of US Embassies.
- SentryGlas®, SentryGlas® Xtra™ and Trosifol® PVB pass large missile impact test and have obtained Miami Dade County Product Control Notice of Acceptance (NOA).
- Window systems using SentryGlas® and Trosifol® Spallshield® CPET are capable of passing FEMA 361 EF5 tornado test.
- SentryGlas®, Trosifol® PVB and Trosifol® Spallshield® CPET interlayer comply with global security glazing standards.
- SentryGlas® certified by the US Department of State for FE (forced entry) BR (bullet resistance).
General information
Color | White |
Material | Ionoplast |
Length | 200000 mm 50000 mm |
Width | 1220 mm 1830 mm 1530 mm 3300 mm |
Height | 0.80 mm |
Warranty description | Other Guidance for specification option: Issued by processor. |
Uniclass | |
CAWS | L40/510 Fire-resistant channel glazing – solid section channel L40/80 Fire-resistant channel glazing – plastics/ elastomeric channel L40/75 Fire-resistant channel glazing – solid section channel L40/65 Fire-resistant tape/ Strip glazing L40/50 Bead-fixed single glazing L40/40 Putty-fronted single glazing L40/90 Internal tape glazing L40/530 Internal tape glazing L40/470 Zipper gasket glazing L40/350 Bead-fixed single glazing – curing compound and trim L40/330 Bead-fixed single glazing – capping L40/310 Bead-fixed single glazing – tape, sealant and trim L40/260 Bead-fixed single glazing – extruded gasket L40/250 Bead-fixed single glazing – tape and sealant L40/230 Bead-fixed single glazing – non-setting compound L40/210 Putty-fronted single glazing L40/515 Fire-resistant channel glazing – plastics/ elastomeric channel L40/505 Fire-resistant tape/ Strip glazing L40/490 Single-sided gasket glazing L40/450 Single glazing into grooves – sealant capping L40/430 Single glazing into grooves – non-setting compound L40/410 Single glazing into grooves – extruded rubber/ PVC sections |
Specification data - Ionomer sheets
Ionomer type | Safety. |
Thickness | 0.8 mm. |
SolarAbsorption | 26%, depending on film thickness. |
Density | 0.97 g/cm³. |
ThermalConductivity | 0.26 W/mK. |
ThermalExpansionCoefficient | 1.30E-4 1/K. |
SpecificHeatCapacity | 1.5 J/g K. |
Colour | Translucent White. |
Light transmission | 76% |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Czechia |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 2.77 kg CO₂ eq/m² Self declared |
Recyclability | 100% Recyclable |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 5 % |
Literature

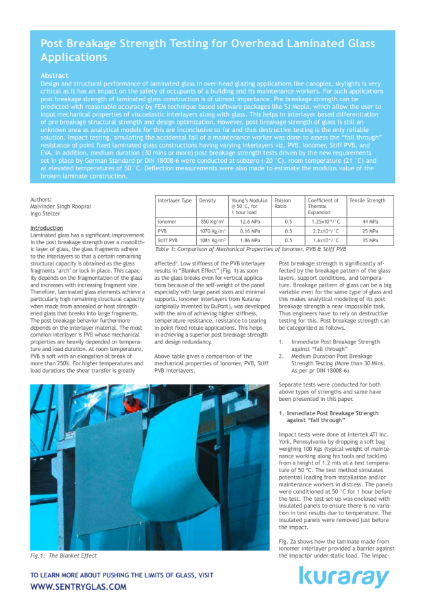

Post Breakage Strength Testing for Overhead Laminated Glass.
SentryGlas

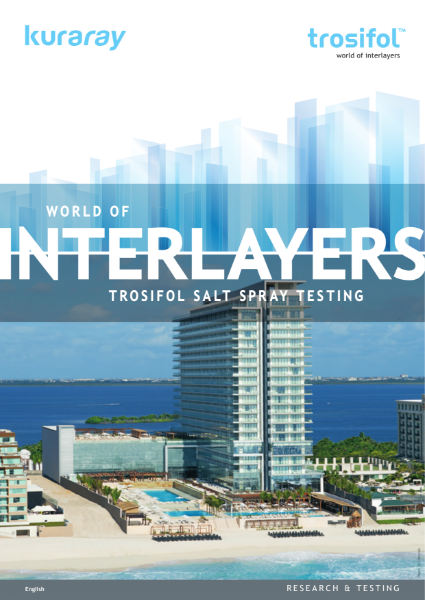

Salt spray testing harsh but necessary to reinforce peace of mind for interlayer capabilities.

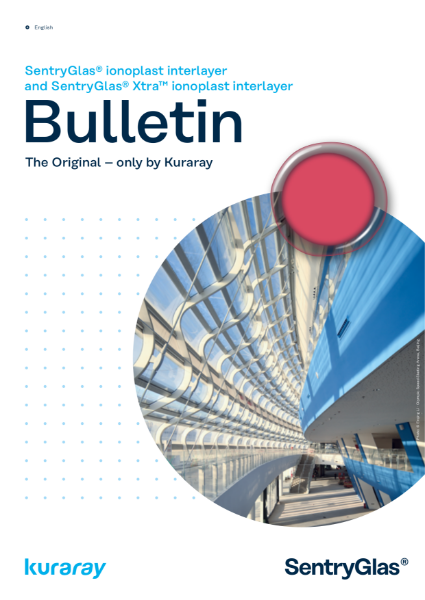

Bulletin - The ORIGINAL only by Kuraray. SentryGlas® ionoplast interlayer and SentryGlas® Xtra™ ionoplast interlayer.
Case studies

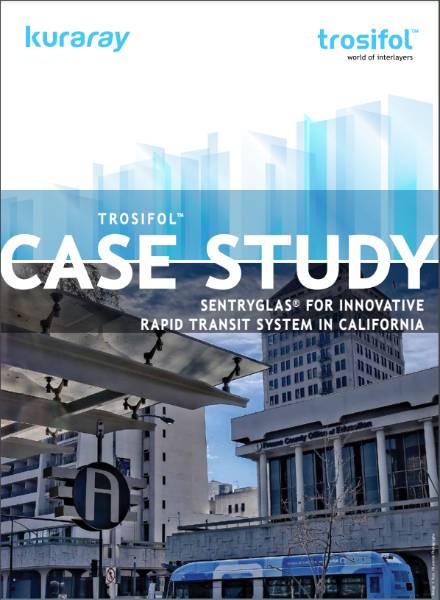

Rapid transit system in California
