Sentinel 6
Application

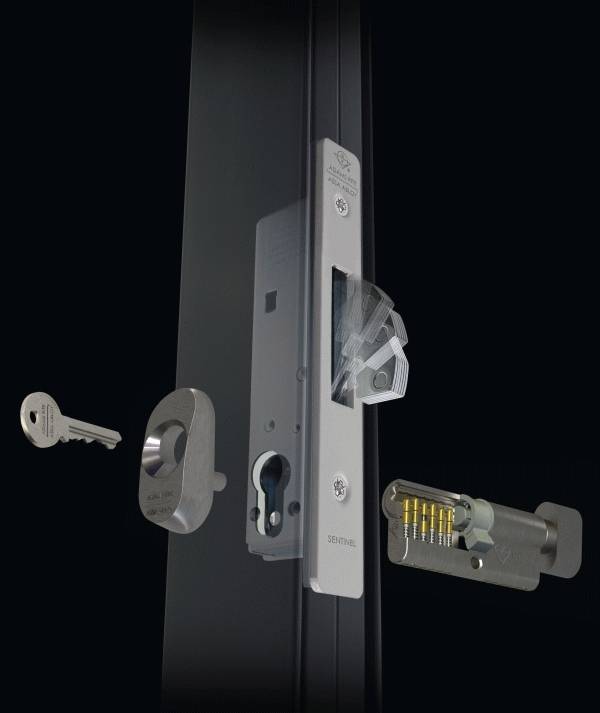

Sentinel 6 is a completely new generation of deadlock from Adams Rite that raises the bar in security locking to new heights. Engineered specifically to meet the stringent BS EN 12209 Lock Standard Test to security Grade 6.

Description

Application:

Sentinel 6 is a completely new generation of deadlock from Adams Rite that raises the bar in security locking to new heights. Engineered specifically to meet the stringent BS EN 12209 Lock Standard Test to security Grade 6.

Benefits:

  • Bolt withstands 10 kN side load in unsupported application and 6 kN end load.
  • Barbolt with anti-spread feature incorporating the benefits of hookbolt.
  • New patented Adams Rite over-centre mechanism.
  • Enclosed mechanism prevents potential for tampering while under attack.
  • Specifically designed to fit into thermally broken and shopfront aluminium or steel applications.
  • Aiding in compliance with current door set standards.
  • Will retro-fit into existing prep for MS2200.

Additional information for this product is available from - http://www.adamsrite.co.uk/en/site/Adams-Rite-Europe/Products/Mechanical-locking/Dealocks/Sentinel-6/

General information

Uniclass 2015

Pr_30_36_08_24 Door latches

Primary

CAWS

P21/24 Door locks

P21/515 Door locks

Specification data - Door latches

Product Reference

2600-200

25 mm Backset Commercial Deadlock.

2600-300

30 mm Backset Commercial Deadlock.

2600-400

40 mm Backset Commercial Deadlock.

Faceplates

24-2627-010

Sentinel flat faceplate SAA finish.

24-2627-110

Sentinel radius faceplate SAA finish.

24-2627-410

Sentinel radius weatherstrip faceplate SAA finish.

Colour/ Finish

313 – Bronze.

335 – Black.

628 – Satin anodized.

Accessories

None

91-2627-001

Cranked fixing tabs in pairs for flush lock front plate application.

2627-010

Sentinel armoured strike backplate - flush front plate application.

2627-012-628

Sentinel flat trim strike SAA finish.

2627-112-628

Sentinel radius trim strike SAA finish.

AH-2627-90-SL

Sentinel Euro Escutcheon - Silver.

Standard product features

General:

  • Case: Steel with corrosion-resistant plating.
  • Bolt: 29 mm bar bolt with anti spread feature, engages when correctly fitted with strike plate.
  • Lock bolt: 6 ply laminated steel with alumina ceramic insert.
  • Forend: Steel with faceplate.
  • Mechanism: Carbon steel actuating mechanism.
  • Cylinder: Operates with 17 mm Europrofile cylinder, fitted with a DIN cam.
  • Operation: 360° turn of key / thumbturn. Key only removable when bolt is positively locked or unlocked.
  • Flush faceplates (finish): Flat, radius and weatherstrip (satin anodized only).
