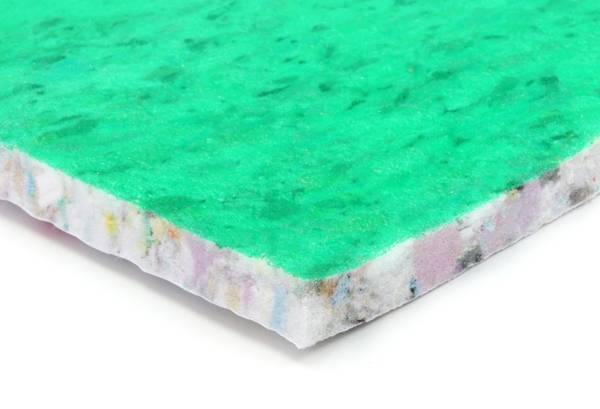

Underlay suitable for the stretch-fit installation of carpets.

Features and benefits:

  • Polyurethane rebond.
  • End use classification (to BS 5808): L/U, luxury use.

General information

Uniclass 2015

Pr_35_57_11_11 Cellular plastics underlaysPrimary


M50/170 Carpeting

M50/25 Carpeting

Specification data - Cellular plastics underlays

Product Reference


Standard product features

Nominal square weight:

1595 g/m².

Roll area:

15.07 m² (1.33 x 11 m).

Nominal roll weight:

24.0 kg.

Nominal density:

145 kg/m³.

Nominal thickness:

11 mm.


No objectionable odour.

Colour/ backing:

Green/ white printed Textron® backing.

Impact sound reduction (Delta Lw):

43 dB.

Emissions (US Carpet and Rug Institute):

Meets low VOC emission criteria.

Thermal resistance:

2.89 togs.

Technical characteristics:

  • Work of compression (minimum 50 J/m²): >200 J/m².
  • Retention of work of compression (minimum 40%): >90%.
  • Loss in thickness after dynamic loading (maximum 15%): <5%.
  • Loss in thickness after static loading (maximum 15%): <5%.
  • Resistance to cracking (not greater than 50 mm): Pass.


Hot metal nut test (tested in Interfloor laboratory): Pass.

Third party certifications

  • CRI: Green Label Plus
