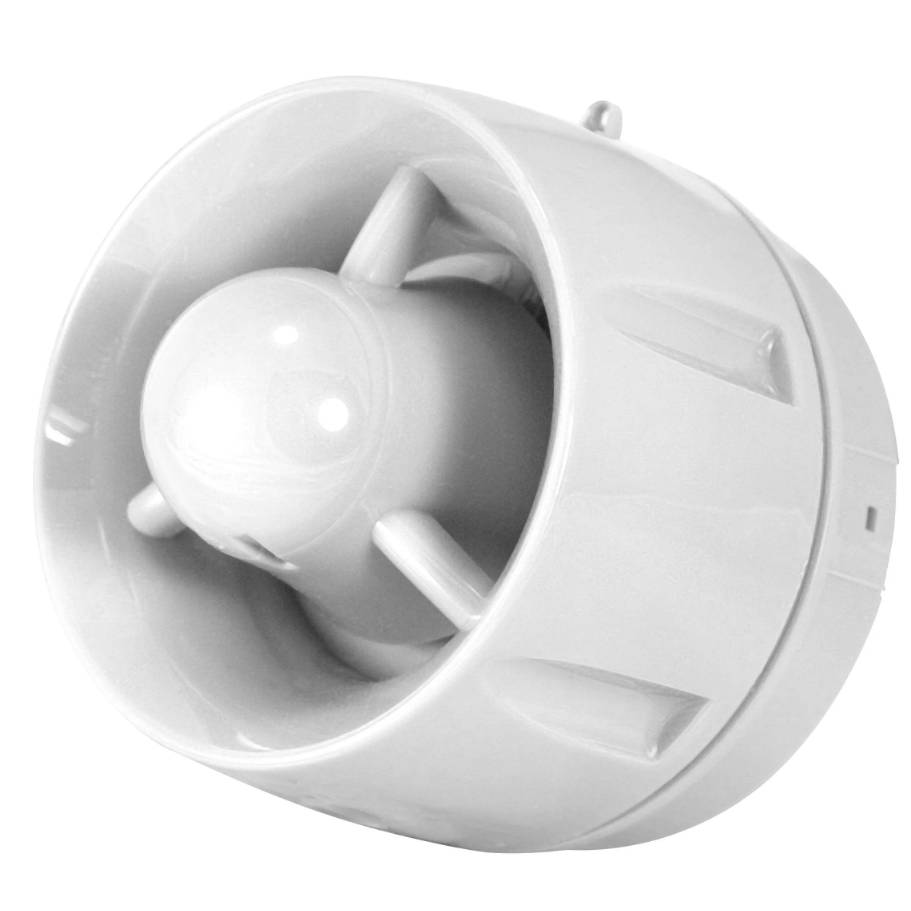

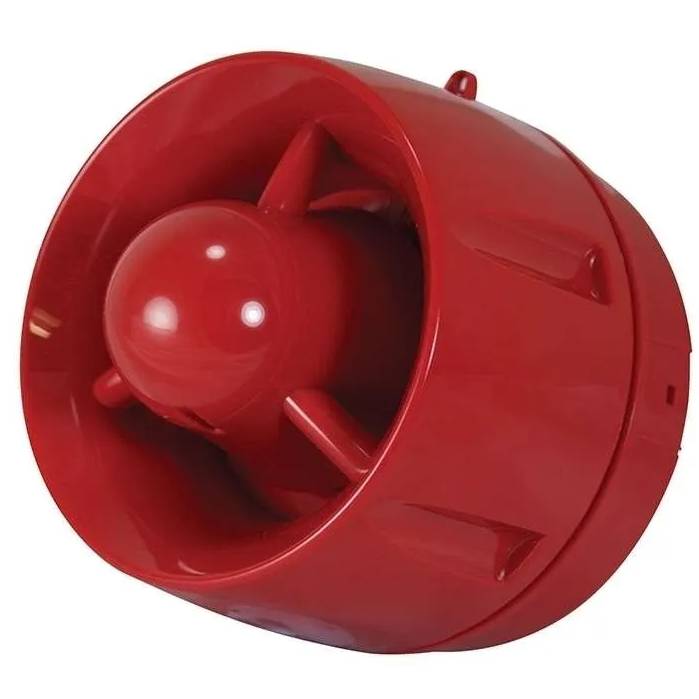

Self-Test Evacuation Alert Sounder
Verified by manufacturer 10 hours ago
Self-testing 100 dB Evacuation Alert sounder available in two colours.
Application
Designed for use on a C-TEC CAST powered EVAC-ALERT system.
Description
Self testing 100 dB Evacuation Alert sounder available in two colours.
Features and benefits:
- Designed for use on a C-TEC CAST powered EVAC-ALERT system.
- Self-testing functionality means access to a flat is only required when a fault is detected.
- Emits a clear, concise and recognisable evacuation alarm tone.
- Impressive 100 dBA sound output at 1 m.
- Low 5.5 mA alarm current.
- IP21C rated.
- Complies with EN54-3.
- Reliable hard-wired technology (for C-TEC’s position on using wireless devices as part of an evacuation alert system / system of last resort click here).
General information
Color | White Red |
Finish | Other Guidance for specification option: Acrylonitrile Butadiene Styrene (ABS). |
Material | Plastic |
Shape | Circle |
Length | 99 mm Manufacturer guidanceDepth. |
Width | 108 mm Manufacturer guidanceDiameter. |
Uniclass | |
CAWS | S92/420 Alarm devices |
SKU Code | BF430C/EA/SW, BF430C/EA/SR |
Specification data - Fire alarm sounders
Classification data | |
Standard | To BS EN 54-3 and BS EN 54-23. |
Sounder type | Electronic sounder. |
Rated voltage | 18–30 V d.c. Manufacturer guidanceSupply voltage. |
Sound patterns | In accordance with BS 5839-1. Manufacturer guidanceConsult manufacturer's technical literature for more details. |
Enclosure protection | To BS EN 54-3 and BS EN 54-23, Type A. Guidance for specification option: Indoor use only. |
Sound pressure level (minimum) | 100 dBA at 1 m. |
Mounting | Surface. Guidance for specification option: Wall mounted. |
MaximumCurrent | 8 mA. |
Power | 165 mW. |
Dimensions | ⌀108 x 99 mm Manufacturer guidanceDiameter x depth. |
Finish | ABS. |
Colour | White. Guidance for specification option: BF430C/EA/SW. Red. Guidance for specification option: BF430C/EA/SR. |
Weight | 0.215 kg. |
Ingress protection (IP) rating | IP21C. |
Operating temperature | -10°C to +55°C. Guidance for specification option: Type A. |
Humidity | Maximum 95% RH (non-condensing). |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Manufacturing plant location | |
Material | Plastic |
Recyclability | Can be recycled |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 100 % |
Expected Life | 15 year |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature
Literature type

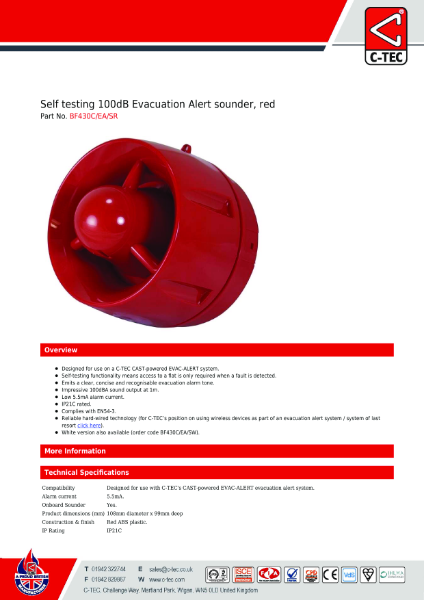

Datasheet for C-TEC's BF430C/EA/SR Self-Testing 100dB Evacuation Alert Sounder,

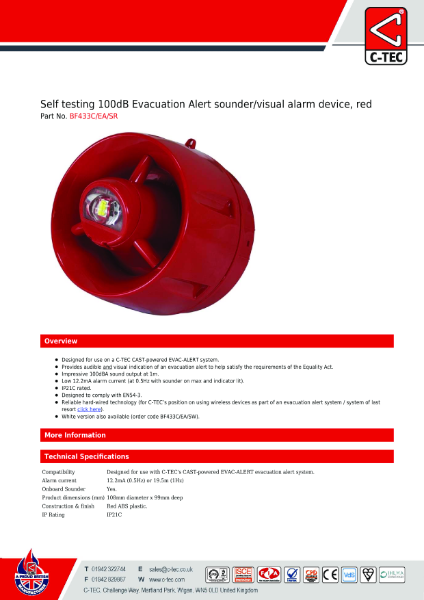

Datasheet for C-TEC's BF433C/EA/SR Self testing 100dB Evacuation Alert Sounder/V
Datasheet for C-TEC's BF430C/EA/SW Self testing 100dB Evacuation Alert sounder, white
Datasheet for C-TEC's BF433C/EA/SW Self testing 100dB Evacuation Alert sounder/visual alarm device, white

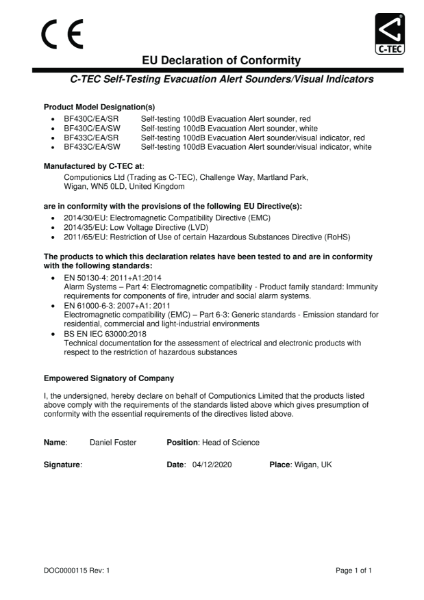

Self-Test Evacuation Alert Sounder EU Declaration of Conformity (CoC)

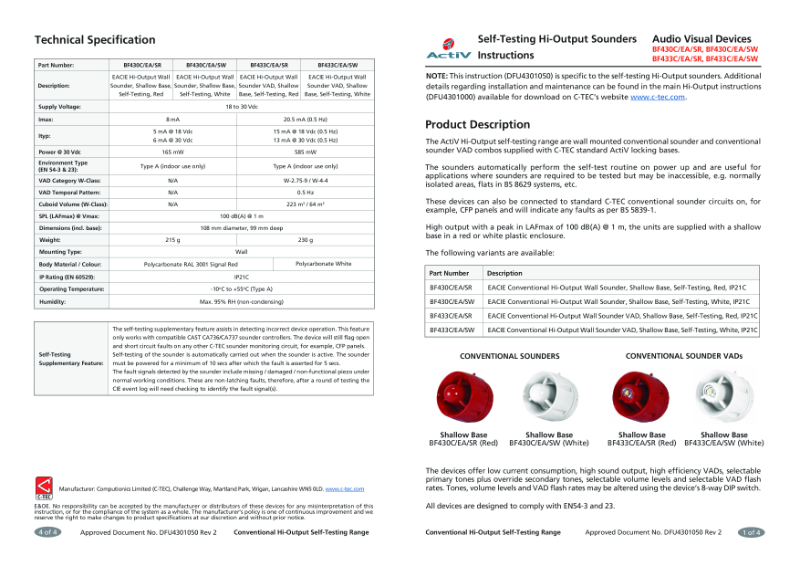

Self-Testing Hi-Output Sounders Instructions
