Select HPL Healthcare Duct Panel IPS - IPS Duct Panels

Name: Select HPL Healthcare Duct Panel IPS - IPS Duct Panels
Brand: Excelsior Panelling Systems Ltd
SKU: iaiVuzpAQTt2MooEWDiksN

Verified by manufacturer 3 months ago

Select HPL Healthcare Duct Panel IPS Full Height On Full CNC Frames

Excelsior Panelling Systems Ltd

Third party certifications:

ISO 9001 Quality Management
Certificate type
Constructionline
Certificate type
CHAS
Certificate type
EPD
Certificate type

Pre-hung duct panelling solution.

Jump to:

BOS

+44 (0)1384 267770 Website

Application

Washrooms, hospitals, healthcare facilities, nursing homes

Description

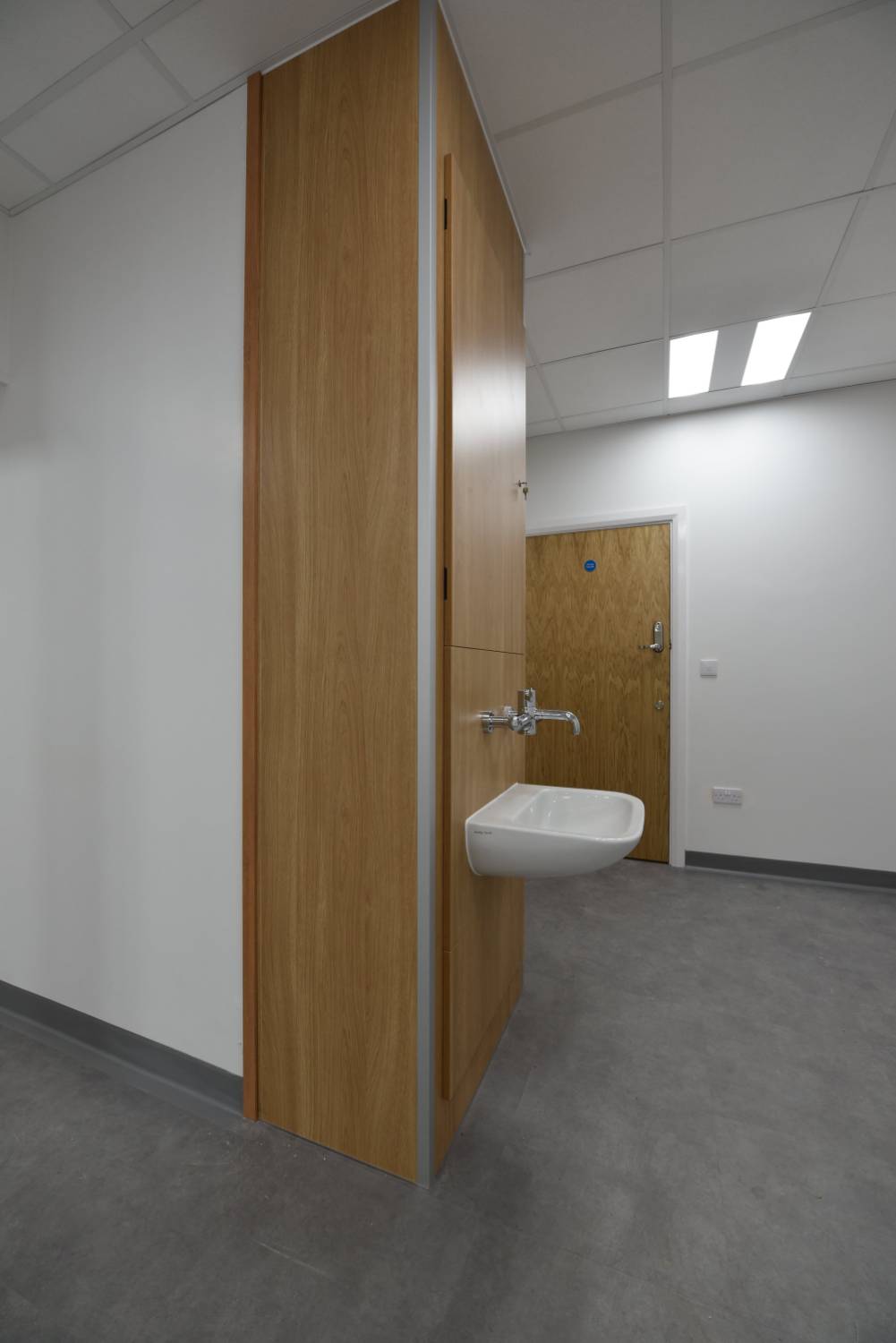

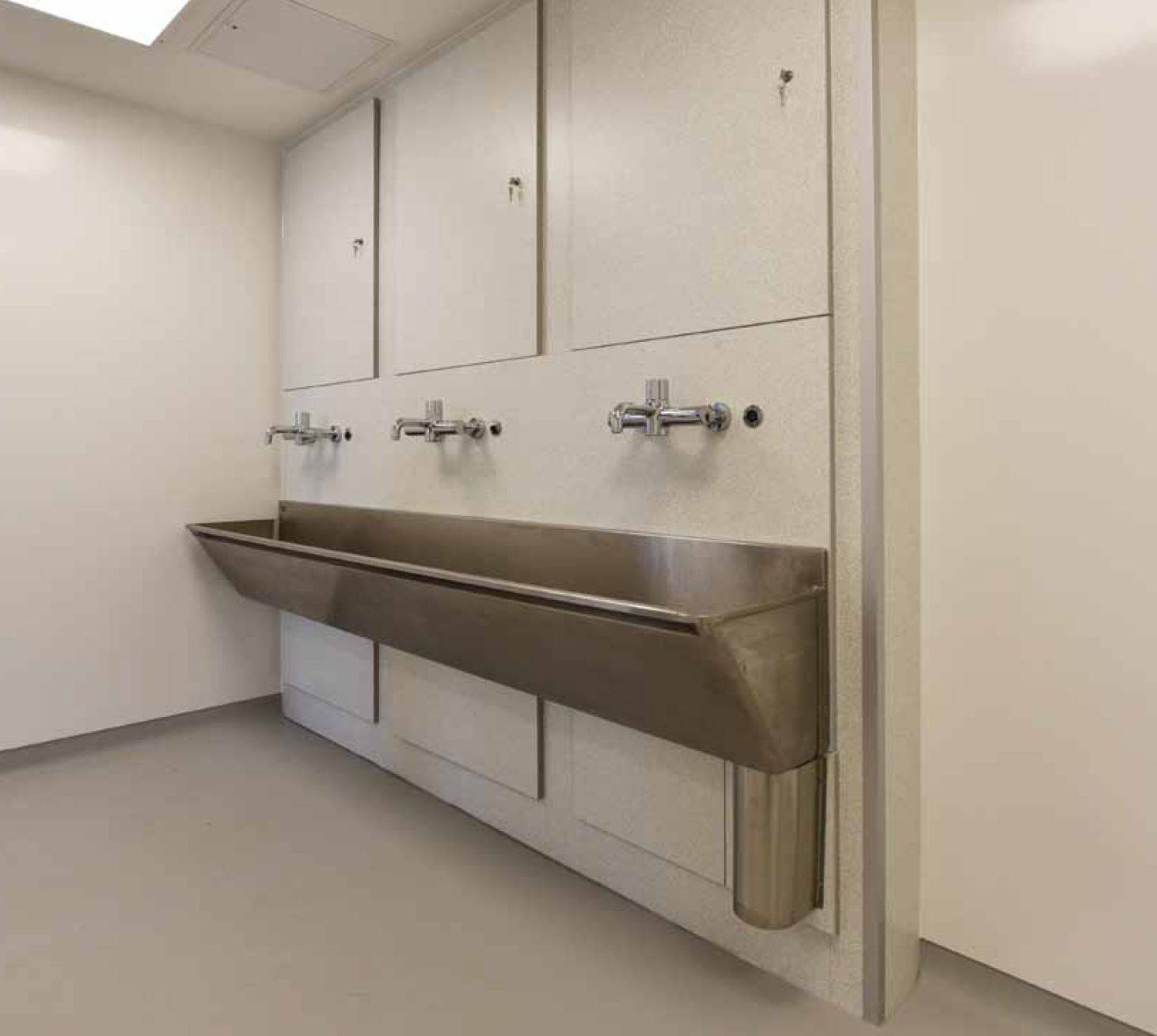

Fully framed, pre-hung washroom duct and wall panel systems with all face panels factory mounted onto either timber or metal subframe systems.

Duct panelling hides services and also provides convenient access to cisterns for maintenance; this is extremely convenient in areas of high use such as school toilet cubicles, pubic toilet cubicles, commercial toilet cubicles etc. Excelsior healthcare panelling systems are fully compliant with NHS estate guidelines.

General information

Material	High pressure laminate (HPL)
Shape	Rectangle
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	Ten year

Uniclass	Ss_25_25_45_25 Duct and wall panel lining systemsPrimary
CAWS	K32/150 Duct/ wall linings – panels and proprietary frames K32/15 Duct/ wall lining panels

Specification data - Duct and wall panel lining systems

Panels	High Pressure Laminate bonded onto 18 mm MR MDF.
Supporting frame	-
Wall panels	Sole Plate – 25 mm WBP Plywood (to be packed level). Subframe – 18/36 mm MR MDF pre-assembled frame. Aluminium corner extrusions to boxed out units. Panels pre-hung onto subframe using metal galvanized slip cleats or Nylon Ke-Ku clips (push fit). Guidance for specification option: Hinged access panels c/w keyed budget lock available at additional cost. Manufacturer guidance Hinged access panels with keyed budget lock available at additional cost.
Flash gap panels	High Pressure Laminate bonded onto 18 mm MR MDF. Guidance for specification option: Plinth incorporates 1 mm ABS edge detail at floor junction to prevent moisture ingress All remaining edges as cut All external corners fitted with a YL6764 Satin anodized corner extrusion Corners and return ends supplied loose for onsite fabrication to allow for transportation

Colour/ Finish:	- Manufacturer guidance Excelsior Preferred Cubicle & Washroom colour selections.
Edges	Panels supplied with postformed vertical edges and 2 mm ABS horizontal edges. Guidance for specification option: Panels split to suit sanitaryware

Sustainability data

Country of material origin	Europe
Country of product manufacture	United Kingdom
Material	High pressure laminate (HPL)
Manufacturing plant location	Dudley DY2 0RL, UK
Recyclability	100%
Recycled content As defined in clause 7.8 of BS EN ISO 14021	0 %
Expected Life	12 year
