Security Window Screen - Fall Protection Cover for Fragile Surfaces

Verified by manufacturer 4 months ago

Safety Fabrications Limited

Fall protection cover for fragile surfaces/ roof cover that provides collective fall protection for workers passing within two metres of a fragile surface.

Jump to:
+44 (0)1142852203 Website

Application

Suitable for providing collective protection for workers working and accessing adjacent fragile surfaces, generally in a rooftop situation.

Description

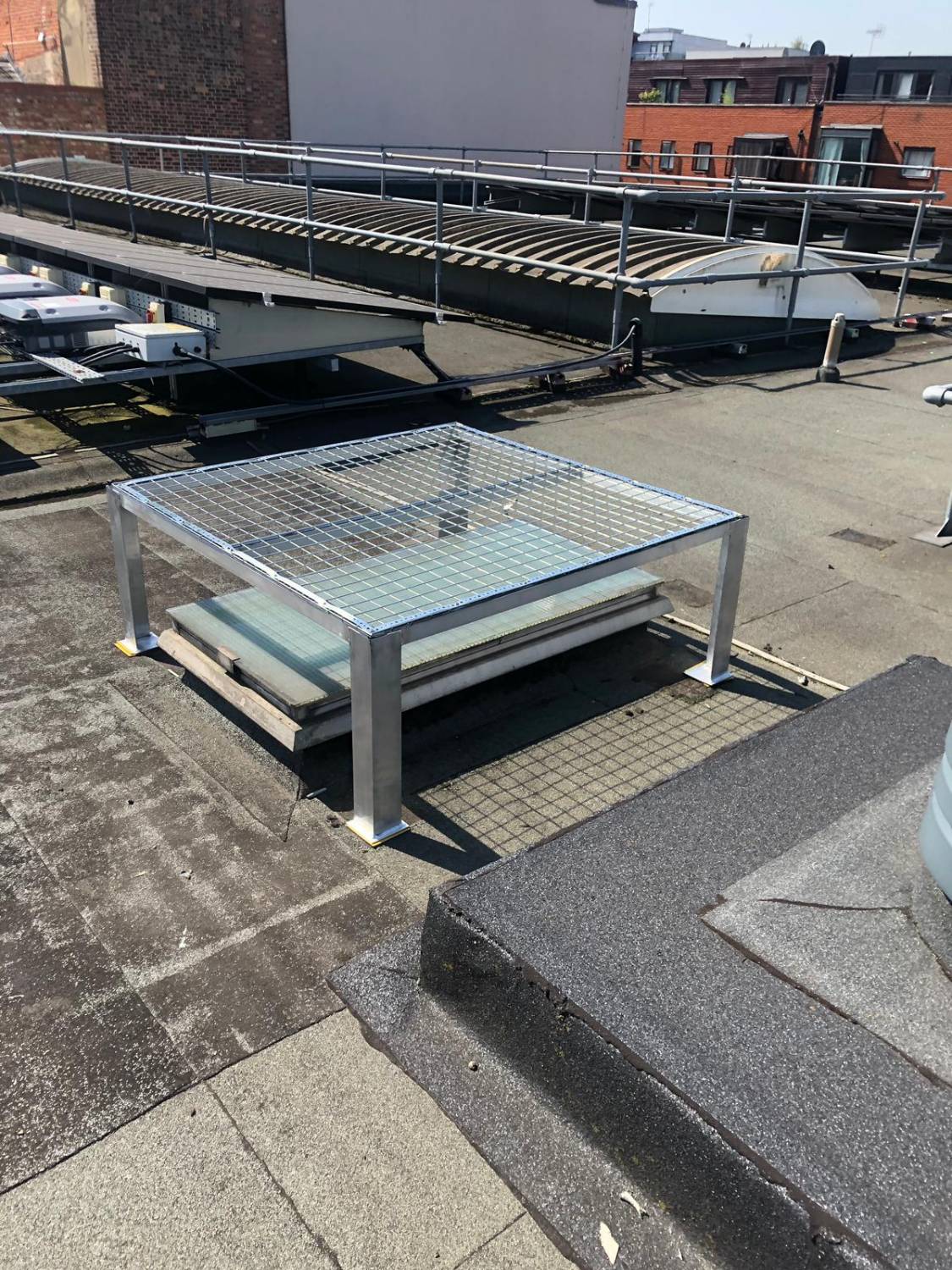

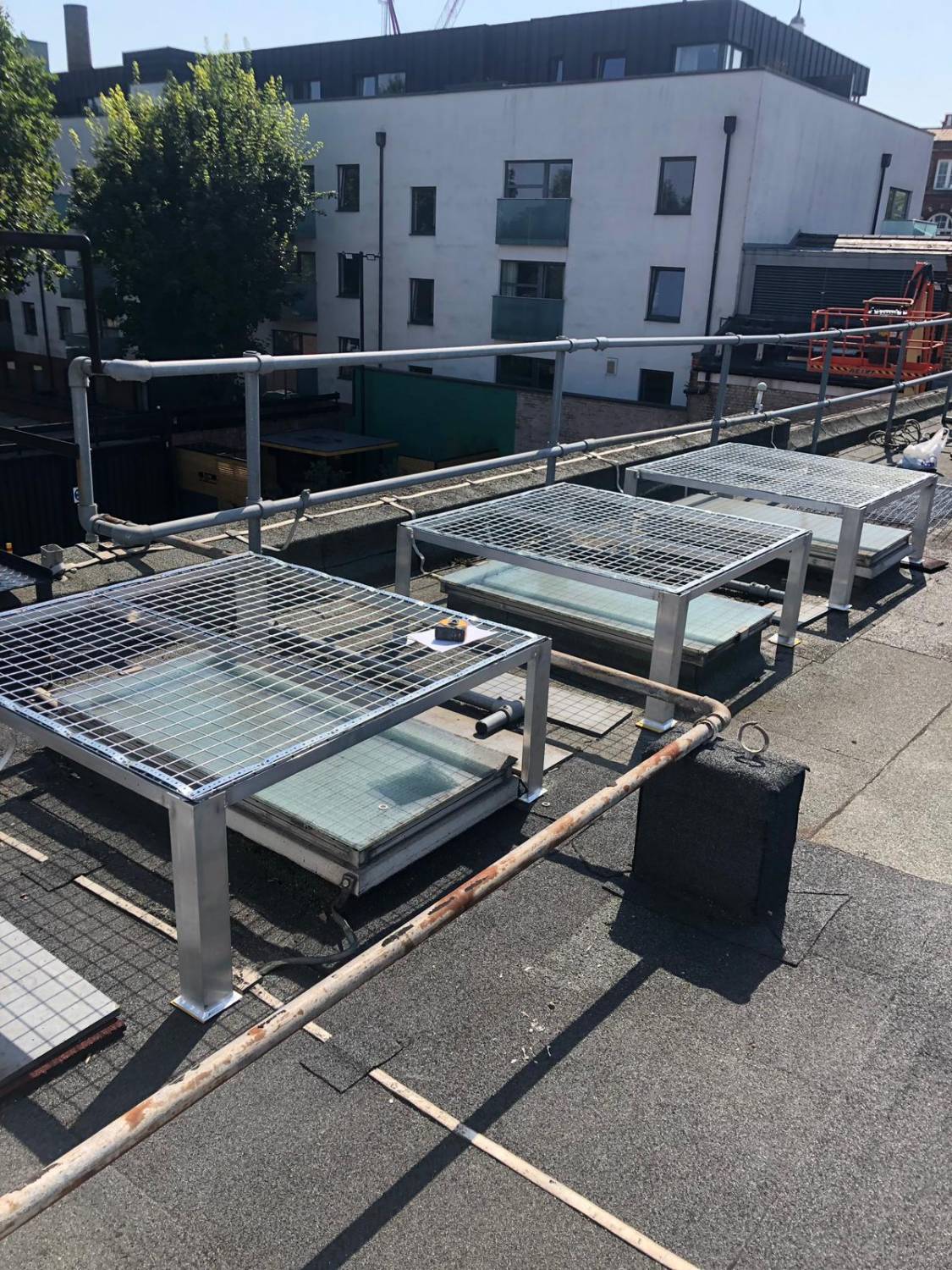

The fall protection covers for fragile surfaces and rooflight covers are freestanding units that sit above the potential gall hazard of the fragile surface or rooflight. They are formed from an aluminium framework with mesh infill and do not overly restrict light penetration. The covers can be used as part of a collective protection safe access strategy as they do not require any personal protective equipment (PPE) or specialist user training to be effective.


Features and benefits:

  • Aluminium panel with mild steel galvanized mesh fixed to upper surface.
  • Can be used individually or as a system.
  • Typically 2 m (height) x 3 m (length).
  • Minimal impact on the level of light entering a building.
  • Tested in accordance with ACR(M)001:2014 Test For Non-Fragility of Large Element Roofing Assemblies (fifth element).
  • Manufactured following 1090 factory production control procedures allowing CE/ UKCA marking as required with all safety critical components as per the Construction Product Regulations 2022.

General information

Color

Grey

Silver

Finish

Powder-coated

Anodized

Galvanized

Material

Aluminium

Steel

Shape

Square

Rectangle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

20 year

Manufacturer guidance

Please consult manufacturer for Terms & Conditions of warranty

Uniclass

Pr_30_59_57_77 Security window screensPrimary

CAWS

L10/60 Security

L10/690 Security

Specification data - Security window screens

Screen

-

Material

Aluminium frame with mild steel galvanized mesh.

Size

2000 x 3000 mm.

Guidance for specification option:

Typical height x length.

Other.

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Standards

Manufactured in accordance with BS EN 1090-1:2009+A1:2011, execution of steel and aluminium structures.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Embodied carbon

A1-A3 (production stage) as defined in BS EN 15804

8.3 kg CO₂ eq/kg

Self declared

Recyclability

100

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

85 %

Literature

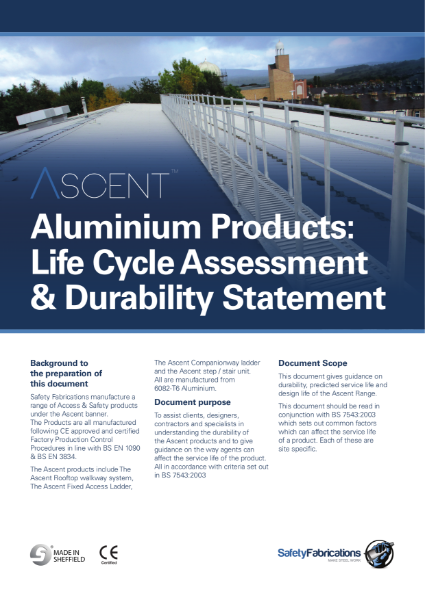

Ascent Aluminium Products Life Cycle Assessment & Durability Statement

Ascent Aluminium Products Life Cycle Assessment & Durability Statement

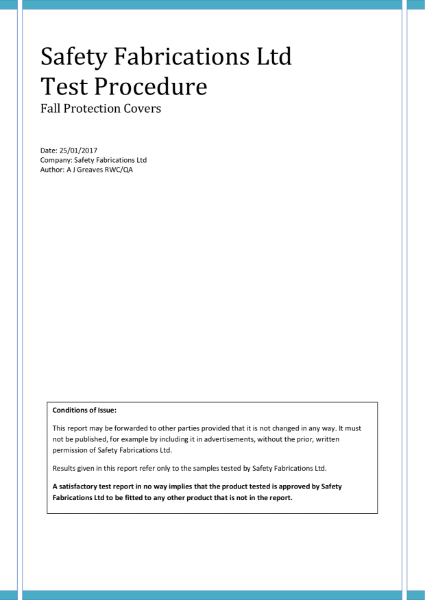

Fall Protection Covers Test report

Fall Protection Covers Test report

Case studies

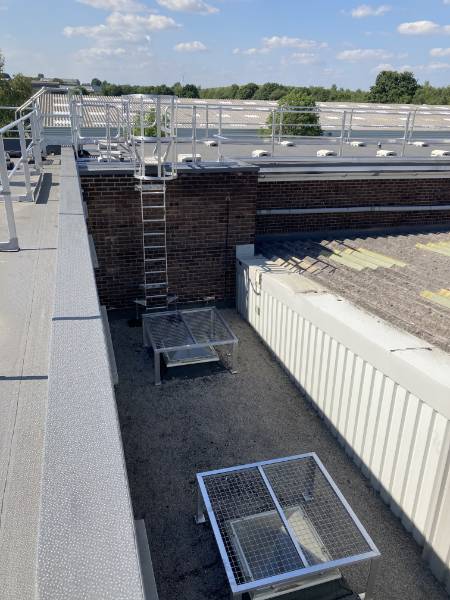

Ascent Rooflight Fall protection Cover, Orgreave, Sheffield

Ascent Rooflight Fall protection Cover, Orgreave, Sheffield
