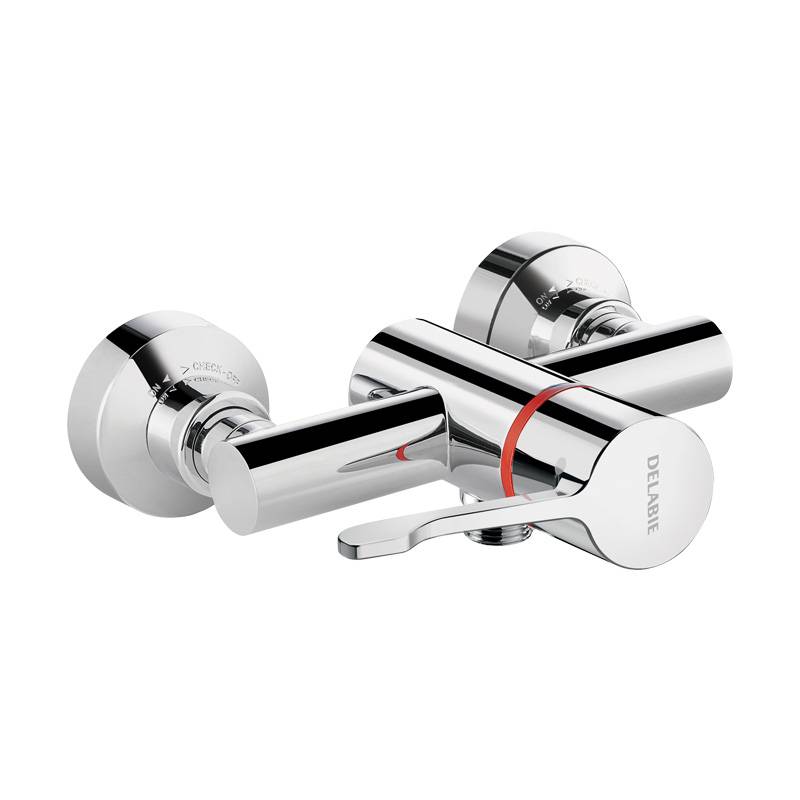

SECURITHERM Shower Mixer - Water Mixing Valve

Verified by manufacturer 11 months ago

Sequential thermostatic shower mixer - H963015

Delabie UK Ltd Variant:
Third party certifications:
  • Type 3 (Healthcare) approved TMV

    Certificate type

  • WRAS

    WRAS

    Certificate type

Thermostatic water mixing valve for showers.

Jump to:
+44 (0)1491 824449 Website

Application

Suitable for healthcare, care and hospital applications.

Description

Thermostatic sequential shower water mixer.


Features and benefits:

  • Thermostatic sequential mixer: opens and closes with cold water.
  • Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
  • No risk of cross flow between hot and cold water.
  • Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
  • Prevents cold showers: cold water supply shuts off if hot water supply fails.
  • Securitouch thermal insulation prevents burns.
  • Scale-resistant thermostatic sequential cartridge adjusts the flow rate and temperature.
  • Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
  • Thermal shocks are possible.
  • Flow rate regulated at 9 L/min (mixer only).
  • Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
  • Sequential mixer suitable for people with reduced mobility.
  • 30-year warranty.

General information

Color

Silver

Finish

Chrome

Material

Brass

Shape

Other

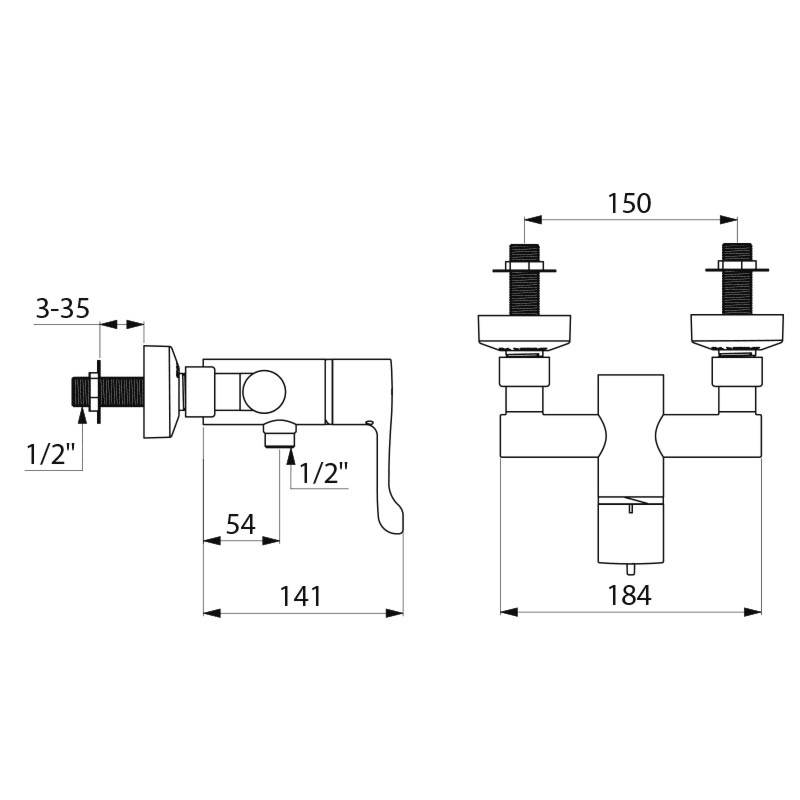

Length

141 mm

Width

184 mm

166 mm

Height

166 mm

Warranty description

30 year

Uniclass

Pr_40_20_87_80 Shower thermostatic valvesPrimary

CAWS

N13/375 Shower units

N13/42 Shower mixer valves

Specification data - Shower thermostatic valves

Approvals

Water Regulations Approval Scheme (WRAS)-approved; NSF TMV3.

Form

Wall-mounted thermostatic shower mixer valve.

Materials

-

Body

Brass.

Finish and colour

Chrome-plated.

Flow rate (maximum)

9 L/ min at 37°C at 3 bar.

Water supply temperature (maximum)

User-controlled.

Water supply fittings

M½" connection.

Width

184 mm.

Third party certifications

Type 3 (Healthcare) approved TMV

Type 3 (Healthcare) approved TMV

TMV3 Approval - H963015

WRAS

WRAS

WRAS Certificate - H963015

Literature

SECURITHERM Shower Mixer Data Sheet - H963015

SECURITHERM Shower Mixer Data Sheet - H963015

SECURITHERM Recessed Shower Mixer Data Sheet - H9633L

SECURITHERM Recessed Shower Mixer Data Sheet - H9633L
