Application

For vehicle access.

Description

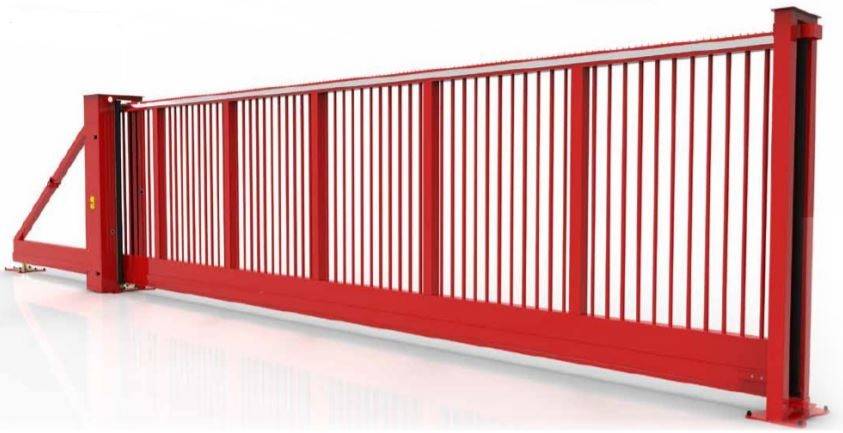

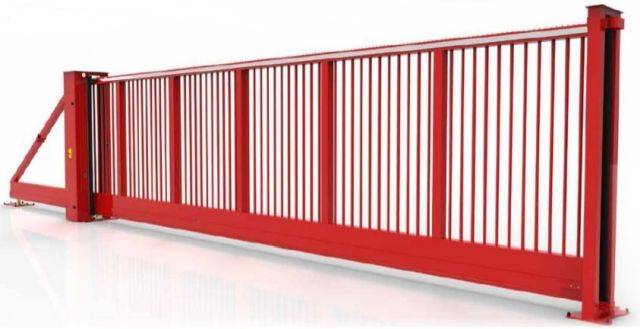

Automatic sliding gate.

Features and benefits:

  • Dual-height photocells.
  • Emergency stop button.
  • Flashing beacon and sounder.
  • PLC control system.
  • Optional touchscreen.

Application:

For vehicle access.

General information
Features

Dual height photocells, emergency stop button, flashing beacon and sounder, PLC control system, optional touch screen

Material

Powder coated mild steel

Size

7000 mm

Uniclass 2015
Carbon steel gates (Pr_30_59_34_14)Primary
Specification data - Carbon steel gates
Product Reference

SecurePro

Dimensions – span

Insert requirement; available up to 13 m.

Dimensions – height

Insert requirement; available up to 3.5 m.

Gate leaves

Insert requirement; a wide range of gate infills are available.

Operating time

Five seconds per metre (adjustable)

Drive

Three-phase motor and wormed gearbox, with rack-and-pinion final drive

Edges

Six Category 3 edges

Cycles

100% duty cycle

Accessories

None

Touch screen

Provides quick, intuitive touchscreen programming and fault-finding.

Standard product features

Finish:

Powder-coated.

Material:

Carbon steel.

Power supply:

230 V AC, 50 Hz, 6 A.

Digital objects
PlatformCompatibleVersionCertified to
IFC
- 1 2.1
Revit
- 1 2.1
Download now from NBS National BIM Library
