Application

  • For indoor bike storage and garage use.

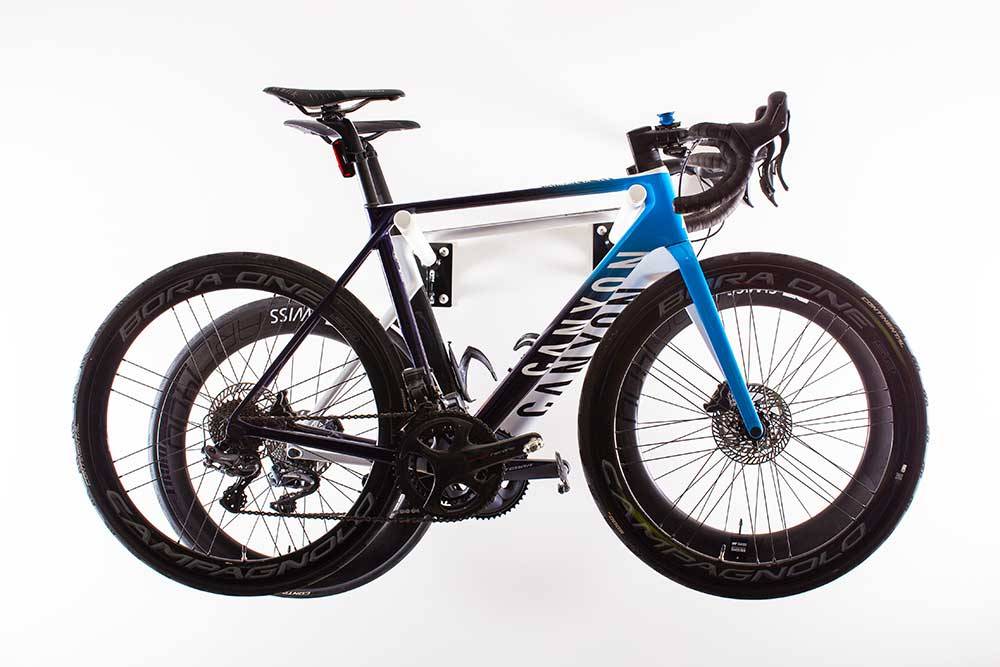

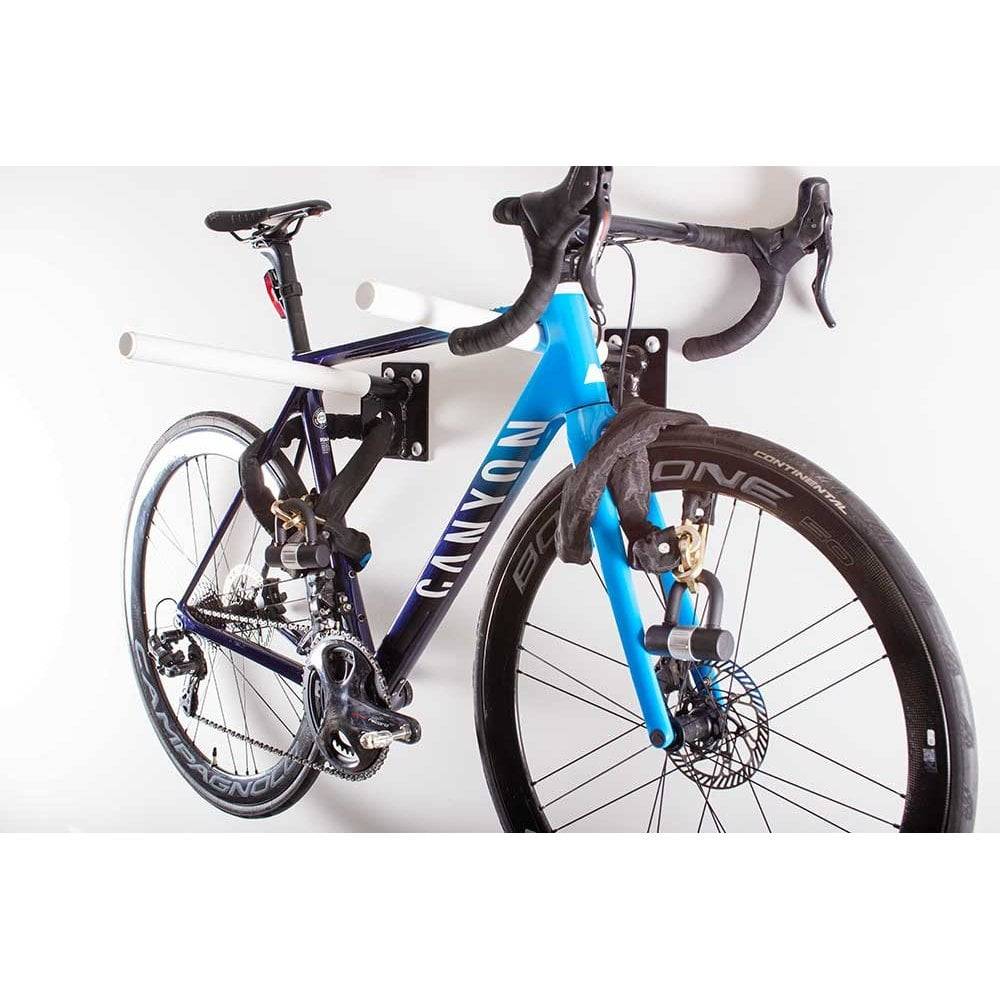

  • Installed by attaching the brackets beneath the frame's top tube or combining the front of the top tube and rear of the seat tube. Lock loops are provided for threading the lock (*locks sold separately).
  • Installation tools required: Drill and 8 mm drill bit suitable for your wall type.

Description

Indoor wall mount for bicycles.


Features and benefits:

  • Advanced alloy steel: Proprietary alloy steel blend that attains the Sold Secure Gold certification.
  • Distinctive wheel and frame locking: Securely locks both the wheels and frame.
  • Universal bike compatibility: Designed to accommodate various bike types, the wall mount is versatile and adaptable, ensuring a secure fit for your bicycle.
  • Patented innovation: This product holds patent number GB2562904.
  • Frame protection: Includes a plastic end bung to safeguard your frame during mounting, as well as a smooth white plastic sleeve to shield your frame's paintwork.
  • Secure brackets: The specially angled brackets effectively hold your bike in place.
  • UK craftsmanship: Manufactured in the UK, this product has a 100 kg loading capacity.
  • Enhance your security: Optional Sold Secure Gold Seal Lock Chains, and padlocks, available in 1.4 m length. For optimal results, two chains are recommended, one for each wall mount.
  • Robust finish options: Choose from a polyester powder-coated steel finish in RAL9006 Silver or RAL9005 Jet Black, or opt for the brushed finish of marine grade 316 hardened stainless steel.
  • Tamper-proof installation: Comes complete with tamper-proof fixings, ensuring that your installation remains secure against unauthorized tampering.


Included in each kit:

  • 2 x Wall brackets
  • 8 x 60 mm Heavy duty multi-fix anchor bolts with a secure tamper-proof Torx head. These fixings are suitable for concrete, brick, stone, block and wood. Ball bearings are included to conceal the torx head for added security.
  • Fitting instructions.

General information

Color

Black

Silver

Finish

Powder-coated

Brushed

Material

Steel

Stainless steel

Shape

Other

Length

500 mm

750 mm

Uniclass

Pr_40_30_21_12 Carbon steel cycle standsPrimary
Pr_40_30_21_84 Stainless steel cycle stands

CAWS

Q50/210 Cycle stands

Q50/32 Cycle stands

Specification data - Carbon steel cycle stands

Stand type

Cycle.

Number of stands

1 bike - 500mm.

2 bikes - 750 mm.

Base

Wall mounted.

Finish as delivered

Polyester powder-coated steel.

Brushed marine grade 316 stainless steel.

Colours

RAL9006 Silver.

Guidance for specification option:

Powder-coated steel.

RAL9005 Jet Black.

Guidance for specification option:

Powder-coated steel.

Natural.

Guidance for specification option:

Stainless steel.

Load capacity

100 kg.

Fixings

8 x 60 mm Heavy duty multi-fix anchor bolts with torx head.

Guidance for specification option:

These fixings are suitable for concrete, brick, stone, block and wood. Ball bearings are included to conceal the torx head for added security.

Accessories

Not required.

Sold Secure Gold Seal Lock Chains and padlocks.

Guidance for specification option:

Available in 1.4 m length. For optimal results, two chains are recommended, one for each wall mount.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Recyclability

100%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

20 %
