SecRoll SR1, SR2 & SR3 Security Shutters - High Security Roller Shutter

Verified by manufacturer 2 months ago

C5 Rated SecRoll SR3

Bolton Gate Company Variant:
Third party certifications:
  • Constructionline Gold

    Constructionline Gold

    Certificate type

  • dhf certificate

    dhf certificate

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • BRE Certificate

    BRE Certificate

    Certificate type

SR1, SR2 and SR3 LPCB Approved Security Rated Roller Shutters.

Jump to:
+44 (0)1204 871001 Website

Application

The SecRoll is used in many varied applications where authentic security rated products are an important design consideration such as retail outlets, art galleries,  studios, infrastructure and utility sites alongside government defence projects.


Performance Characteristics:

LPS1175 Issue 7 security standards—SR1, SR2 & SR3 options.

Resistance to Wind—Class 5

Options for:

Thermal Resistance – 1.1W /(m²K) at centre / 3.2W/(m²K) at quirks

Sound Reduction – 18dB Rw (BS EN ISO 10140-2:2010 – Measurements of Airborne Sound Insulation)



Key Attributes:

LPS 1175 Approved Security Rating.

High wind load capability.

Can provide both thermal and acoustic properties.

Bespoke manufacture to suit individual opening sizes





Description

Summary

Bolton Gate offer a complete range of Security Rated options from SR1 through to SR5 rating.


The latest addition to our portfolio, are the SecRoll Security Roller Shutters offering A1, B3 & C5 security classifications equivalent to SR1, SR2 & SR3 respectively.



Providing a choice of ratings, these bespoke high security rolling shutters manufactured here in the UK are designed to provide flexibility for our Clients with a wide range of opening sizes and specification options including thermal and acoustic capabilities.



We are proud to confirm that our security shutters are registered in the BRE Global ‘Red Book Live’ confirming our products have been rigorously tested, assessed and approved by LPCB (Loss Prevention Certification Board) and that also the same high standard and quality production is maintained through the process of regular audits.




C5 Rated SecRoll SR3


Operation

 Tubular Motor

· To suit 230-volt nominal, 1 phase supply.

· External safety brake.

· Low level keyswitch



Direct Drive Motor

· To suit 400-volt nominal, 3 phase supply

· Integrated safety brake.

· Open, close, stop push buttons within low level control panel.


Arrangement

Internally face fixed to brick, block, concrete or steel (i.e. rigid structures).


Locking

A pair of side guide mounted pin locks are provided.

Over 3500mm clear width, a centrally mounted ground lock (complete with padlock) is also provided (2no if >7000mm).



Size Parameters

Minimum        1m wide x 1m high

Maximum        10m wide x 10m high (Direct drive motor)

                           7m wide x 4m high (Tube motor)



Weight

Varies with opening size dependent on lath/barrel/casing requirements but approximately 45kgs/m².




B3 Rated SecRoll SR2


Operation

Tubular Motor

· To suit 230-volt nominal, 1 phase supply.

· External safety brake.

· Low level keyswitch



Direct Drive Motor

· To suit 400-volt nominal, 3 phase supply

· Integrated safety brake.

· Open, close, stop push buttons within low level control panel


Arrangement

Internally face fixed to timber, brick, block, concrete or steel (i.e. flexible and rigid structures).



Locking

A pair of side guide mounted pin locks are provided.

Over 5000mm clear width, a centrally mounted ground lock (complete with padlock) is also provided.



Size Parameters

Minimum        1m wide x 1m high

Maximum        7m wide x 7m high (Direct drive motor)

                           7m wide x 4m high (Tube motor)



Weight

Varies with opening size dependent on lath/barrel/casing requirements but approximately 45kgs/m².



C1 Rated SecRoll SR1


Operation

Tubular Motor

· To suit 230-volt nominal, 1 phase supply.

· External safety brake.

· Low level keyswitch



Direct Drive Motor

· To suit 400-volt nominal, 3 phase supply

· Integrated safety brake.

· Open, close, stop push buttons within low level control panel.


Arrangement

Internally face fixed to timber, brick, block, concrete or steel (i.e. flexible and rigid structures).


Locking

A pair of side guide mounted pin locks are provided.


Size Parameters

Minimum        1m wide x 1m high

Maximum        7m wide x 7m high (Direct drive motor)

                           7m wide x 4m high (Tube motor)



Weight

Varies with opening size dependent on lath/barrel/casing requirements but approximately 45kgs/m².







General information

Color

Grey

Beige

Black

Blue

Brown

Show more

Finish

Galvanized

Powder-coated

Plastisol

Material

Steel

Shape

Rectangle

Square

Length

Bespoke

Width

1000 mm

Guidance for specification option:

Minimum width.

7000 mm

Guidance for specification option:

Maximum width (B3 Rated SecRoll SR2 and C1 Rated SecRoll SR1).

10000 mm

Guidance for specification option:

Maximum width (C5 Rated SecRoll SR3 only).

Bespoke

Guidance for specification option:

Between 1000–10 000 mm.

Height

1000 mm

Guidance for specification option:

Minimum height.

7000 mm

Guidance for specification option:

Maximum height (B3 Rated SecRoll SR2 and C1 Rated SecRoll SR1).

10000 mm

Guidance for specification option:

Maximum height (C5 Rated SecRoll SR3 only).

Bespoke

Guidance for specification option:

Between 1000–10 000 mm.

Warranty description

One year

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

CAWS

L20/610 Roller shutters/ curtains

Product range

Security

Specification data - Roller shutters

Opening sizes

-

Manufacturer guidance

Insert size requirements.

  • Minimum (W x H): 1 x 1 m.
  • Maximum (W x H): 10 x 10 m (direct motor); 7 x 4 m (tube motor).

Format

External.

Arrangement

Internally face fixed.

Guidance for specification option:

To brick, block, concrete or steel.

Performance

-

Resistance to wind load

Class 5.

Acoustic performance

To BS EN ISO 10140-2, 18 dB Rw.

Manufacturer guidance

Sound reduction.

Thermal resistance

1.1 W/(m²K) at centre.
3.2 W/(m²K) at quirks.

Shutter curtain

-

Lath material

Galvanized steel.

Profile

Flat.

Finish and colour

Galvanized.

Guidance for specification option:

As standard.

Polyester powder-coated.

Plastisol.

Guidance for specification option:

Plastisol to curtain, remaining components with a polyester powder-coated finish.

Frame and guides

-

Material

Steel.

Finish

Galvanized.

Guidance for specification option:

As standard.

Polyester powder-coated.

Plastisol.

Guidance for specification option:

Plastisol to curtain, remaining components with a polyester powder-coated finish.

Colour

-

Manufacturer guidance

Consult manufacturer and insert requirements.

Film thickness (minimum)

Manufacturer's standard.

Operation

-

Mode

Automatic.

Control

Tubular motor.

Guidance for specification option:

  • To suit 230 V nominal, 1 phase supply.
  • External safety brake.
  • Low level key switch.

Direct drive motor.

Guidance for specification option:

  • To 400 V nominal, 3 phase supply.
  • Integrated safety brake.
  • Open, close, stop push buttons within low level control panel.

Hardware

Locks.

Guidance for specification option:

A pair of side guide mounted pin locks are provided.

Over 3500 mm clear width, a centrally mounted ground lock (complete with padlock) is also provided (two if >7000 mm).

Security

LPS 1175 issue 7, SR3.

Sustainability data

Contains Red List materials

No

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Steel

Manufacturing plant location

Recyclability

95%

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

0 %

Expected Life

25 year

Third party certifications

Constructionline Gold

Constructionline Gold

Constructionline Gold

dhf certificate

dhf certificate

DHF Membership

ISO 9001 Quality Management

ISO 9001 Quality Management

Certificate of Management System Registration - ISO 9001:2015

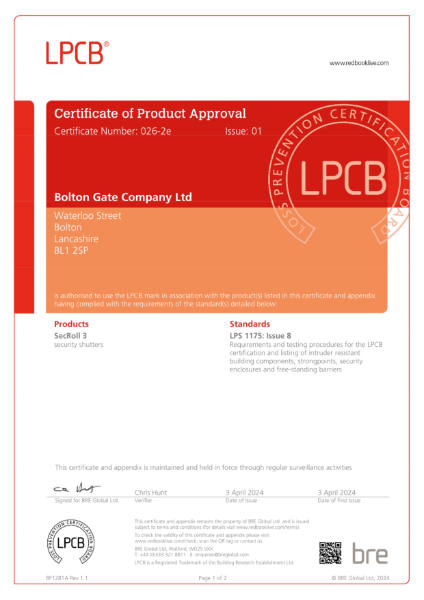

BRE Certificate

BRE Certificate

Certificate of Product Approval - LPS1175 C1 (SR1)

BRE Certificate

BRE Certificate

Certificate of Product Approval - LPS1175 B3 (SR2)

BRE Certificate

BRE Certificate

Certificate of Product Approval - LPS1175 C3 (SR3)

Literature

SecRoll Security Shutters - SR1, SR2 and SR3 LPCB Approved Security Rated Shutters

SecRoll Security Shutters - SR1, SR2 and SR3 LPCB Approved Security Rated Shutters
