Application

Suitable areas of application include:

  • Historic buildings.
  • Banks.
  • Listed buildings.

Description

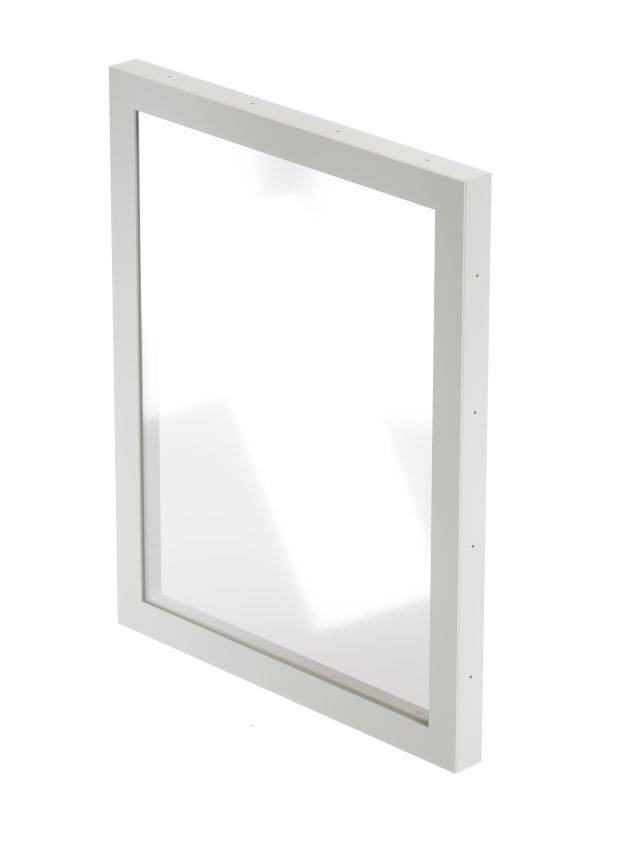

It fits behind existing external windows to avoid drawing attention to secure areas, mainly to an area of a building that requires enhances levels of protection.

Features and benefits:

  • Available in manual attack and bullet resistance.
  • Can be installed into a window reveal or an independent frame.
  • Does not disturb existing external glazing.
  • Built to order.

Application:

Suitable areas of application include:

  • Historic buildings.
  • Banks.
  • Listed buildings.

General information
Size

Insert requirement, consult manufacturer for details.

Uniclass 2015
Pr_25_71_33_46 Laminated glass sheetsPrimary
Specification data - Laminated glass sheets
Product Reference

Secondary Security Glazing

Size

Insert requirement, consult manufacturer for details.

Glazing -
Thickness

13.5 mm

44 mm frame depth, 30 kg/m², 2200 mm maximum width.

36 mm

98 mm frame depth, 84 kg/m², 1600 mm maximum width.

42 mm

110 mm frame depth, 100 kg/m², 1300 mm maximum width.

Obscure panels

Not required

Required

Frame finish

Powder coated

Insert colour requirement.

Satin polished stainless steel

Resistance

BS 5051 G2/S86

EN 1063 up to BR6

EN 1522 up to FB6
