Secondary Glazing Double Hinged C7

Verified by manufacturer 3 months ago

Roseview Windows

Aluminium secondary glazing.

Jump to:
+44 (0)1234 712657 Website

Application

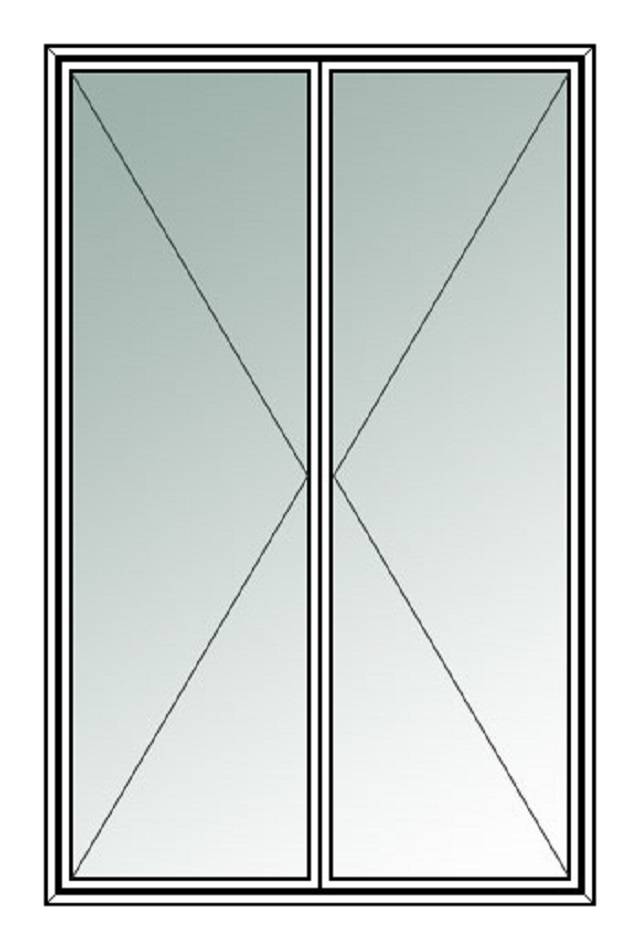

Opening inwards, hinged units provide full access to the primary window. Hinged units are perfect for free escapes and for French or patio doors.

Description

Aluminium secondary glazing. Equal leg/ odd leg with built-in fixing cover. Hardwood subframes (FF) or overhang (RF) and handle integral to profile design.

The low profile design and good thermal and acoustic performance mean that secondary glazing is recommended by both Historic England and the Listed Property Owners Club as a suitable product for improving windows in historic buildings.


Features and benefits:

  • Front face: 45 mm (left/ right), 38 mm (top/ bottom).
  • Depth: 20 mm (face fix subframe), 36 mm (reveal fix subframe).
  • Far better acoustic performance than standard windows insulation.
  • Cost-effective thermal insulation for older buildings.
  • Suitable for conservation areas and listed buildings.
  • Fully bespoke, customisable to your exact requirements.
  • 4 mm toughened glass as standard.
  • Capacity for up to 12 mm glazing.
  • High grade acoustic foam.
  • Steel bearing rollers and clip locks (horizontal sliders).
  • Pre-tensioned Caldwell Spirex balances (standard VS).
  • Pre-tensioned Caldwell Torso2 balances (Deluxe Tilt VS).
  • Fully removable sashes (Deluxe Tilt VS).
  • Standard colours - white, brown, anodized.
  • Discrete window furniture.
  • Ancillary section to create combination units.


- Optional features:



  • Flush fit pre-finished timber subframe.
  • Acoustic and thermal glass options.
  • Arches, rakes, shapes.
  • Any RAL colour (two week lead time).
  • Premium woodgrain finishes.

General information

Color

Brown

White

Manufacturer guidance

Glazing: clear. Frame: white, anodized aluminium or brown. Any RAL colour is available upon request.

Finish

Smooth

Manufacturer guidance

Polyester powder coated

Material

Aluminium

Glass

Manufacturer guidance

 Timber sub-frame (optional)

Shape

Rectangle

Manufacturer guidance

Arches and shapes available

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

Ten year

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/53 Secondary glazing system

L10/580 Secondary glazing system

Product range

Incarnation secondary glazing

Specification data - Aluminium window units

Dimensions and configurations

Guidance for specification option:

Max panel sizes: 1000 x 2000 mm (4 mm); 2000 x 2000 mm (6 mm); 2000 x 2500 mm (6.4 mm). Frame profile: 12 mm.

Product performance

-

Environmental

-

Acoustic performance rating

Up to 45 dB.

Frame

-

Profile

Seasonmaster slimline aluminium.

Guidance for specification option:

Standard.

Hardwood sub-frame.

Guidance for specification option:

Optional.

Finish as delivered

-

Coating

Anodized.

Powder coated.

Colour

Anodized.

Any RAL colour.

Brown.

White.

Ventilator

Not required.

Trickle vent option.

Guidance for specification option:

Trickle vent option with timber sub-frame.

Glazing or infill

-

Standard

To BS EN 12150.

Requirements

4 mm.

6 mm.

6.4 mm.

Acoustic laminated.

Flyscreen.

Laminated.

Toughened.

Operation

-

Type

Hinged.

Fixing features

Faced fixed.

Reveal fixed.

Third party accreditation

Secured by Design, BlueSky Acoustic, PAS 24:2016, BS 6375.

Impact resistance

To BS EN 12600, Class 1.

Sustainability data

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Material

Aluminium

Glass

Manufacturer guidance

 Timber sub-frame (optional)
