SeceuroShield 7501 And SeceuroVision 7501 Continental

SWS UK

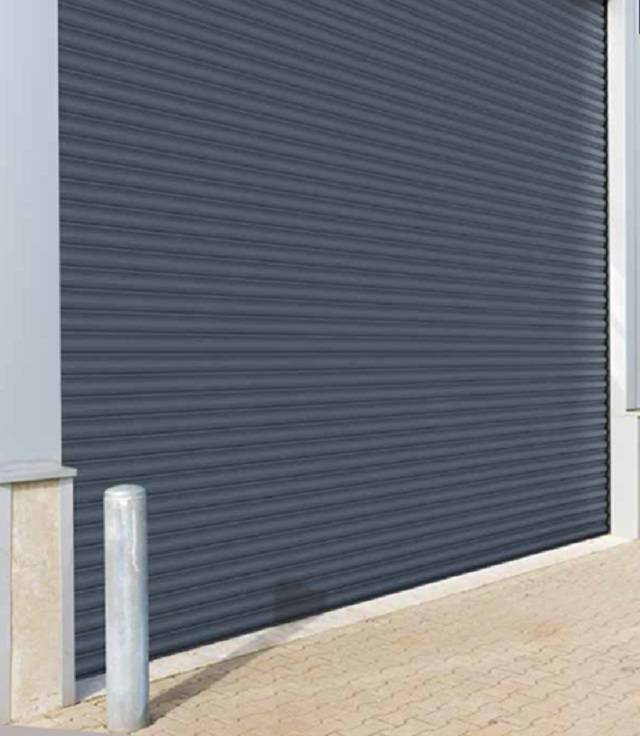

Continental-style steel roller shutter, with scrolled slat profile.

Jump to:
+44 (0)1524 772400 www.sws.co.uk
Application

Suitable for high-security office, commercial and industrial applications. This product can only be installed internally, and the shutter box must be installed above the structural opening.

Description

Continental-style steel roller shutter, with scrolled slat profile. Features a neat, continental-style headbox and aluminium guide rails for a higher grade installation.

Features and benefits:

  • Available as solid or perforated.
  • Strong, single-skin galvanized steel profile.
  • Spans widths of up to 6000 mm.
  • Can be powder-coated in any RAL/ BS colour.
  • Available in white, brown, black and cream as standard.
  • Flexibility to mix solid and perforated slats together when only partial vision is required.
  • Will reverse coil if required (will increase coil size).
  • Only available in 22 g slat.
  • Wind class rating: Class 3 (when used on 65 mm+ guides).
  • Loss Prevention Certification Board (LPCB) LPS 1175 and Secure by Design-compliant.

Application:

Suitable for high-security office, commercial and industrial applications. This product can only be installed internally, and the shutter box must be installed above the structural opening.

Specification data
Product Reference

SeceuroShield 7501 Continental Style

SeceuroVision 7501 Continental Style

Finish

Galvanized

Standard.

Powder-coated

RAL and BS colours available at extra cost. Insert requirements.

Shutter box colour

Brown

White

Motor

Consult manufacturer for details and insert requirements.

Wicket door

Not required

Required

Accessories

None

Bullet lock

Lock for bottom slat

Standard product features

Size (h x w, minimum–maximum):

600–3400 x 900–6000 mm. (2800 x 4000 mm, maximum if spring and lock).

- Slats:

Nominally 75 mm high x 19 mm thick.

- Bottom slat (h x d):

'T' section – 49 x 74 mm.

- Shutter box:

  • Clear opening height (to the underside of box) 1750 mm, box size 250 mm.
  • 2500 mm, box size 300 mm.
  • 3050 mm, box size 350 mm.

- Guide rails (w x d):

90 x 34 mm.

Construction:

- Slats:

  • SeceuroShield 7501 uses a single-skin, scrolled, solid steel slat.
  • SeceuroVision 7501 uses a single-skin, scrolled, perforated steel slat.

- Bottom slats:

'T'-sectioned steel bottom slat. If electrically operated and fitted with bullet locks, steel bottom slat anchors are fitted on each end.

- Shutter box:

Two or three-piece, roll-formed aluminium casing with steel end plates.

- Guide rails:

Extruded aluminium, with box section for fixing and reinforcement. Includes high density of 4 mm pile brush seals. If electrically operated and fitted with bullet locks, guide inserts are fitted in the base of the guide rails as standard. Reveal-fitted guide rails will also include a guide shoe.

Operation:

- Electric:

Electric operation is required on larger shutters due to the weight, and is optional on smaller shutters. Operation is by a tubular motor inside the axle. Control is by a momentary switch, which must be held until the shutter reaches the desired position.

Electrically operated SeceuroShield 7501 and SeceuroVision 7501, which are less than 3 m wide, will require a lock in the bottom slat. Electrically operated SeceuroShield 7501 and SeceuroVision 7501, which are between 3 and 6 m wide, will require a bullet lock on each guide rail.

- Spring-loaded:

A counterbalance spring in the axle ensures controlled raising and lowering. A lock in the bottom slat is used to secure the shutter when closed.

Weight:

  • SeceuroShield 7501: 10 kg/m².
  • SeceuroVision 7501: 8 kg/m².

Fixings:

Varies depending on size; consult the literature for details. The shutter box is fixed at each end and 1000 mm centres.
