SeceuroFire Curtain

Third party certifications:
  • QA Certificate

    Certificate type

SWS UK

Automatic vertical fire-resistant curtain.

Jump to:
+44 (0)1524 772400 www.sws.co.uk
Application

Can be used to:

  • Divide up large open plan office spaces.
  • Provide fire protection over windows and doors.
  • Contain areas in restaurants, schools, and department stores.

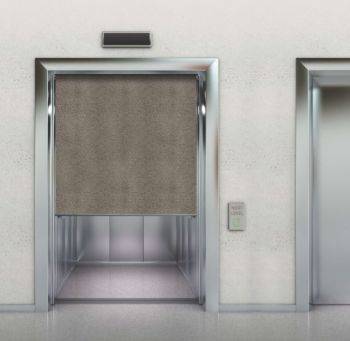

  • Contain fire within lifts.
  • Provide boundary protection to stop fire from spreading to other premises e.g. in shopping centres.

Description

Automatic vertical fire-resistant curtain with 120 minutes integrity rating.

Invisible when not in use, the curtain is automatically activated in the event of a fire alarm or power failure. This ensures safety, without compromising on the aesthetics or design of the building. When lowered or deployed, the curtain divides up large open spaces to slow down the spread of fire, allowing a safe exit. Strong enough to contain a fire for up to two hours, whilst still allowing a route of escape - the bottom rail can be lifted enough to fit underneath if required.

Features and benefits:

  • Suitable for both face or reveal installations.
  • Helps to slow down the spread of fire.
  • The curtain includes tabs positioned at regular centres which extend beyond the curtain - these tabs restrain the curtain within the guide rails, without significantly increasing the coil size.
  • Hidden when not in use.
  • Includes gravity fail-safe.
  • Deploys in seconds.
  • Box section housing unit provides maintenance access.
  • Can be RAL or BS coated.
  • Manufactured in the UK.
  • Tested to BS EN 1634-1: 2008, and approved by Warrington Fire Assessment Reports 197830 and 199303, test report 195865.
  • 12-month guarantee.

Consult manufacturer for details of maintenance recommendations. Must be fixed to appropriate fire protected masonry or steel supporting constructions that have a fire resistance of at least the period required.

Applications:

Can be used to:

  • Divide up large open plan office spaces.
  • Provide fire protection over windows and doors.
  • Contain areas in restaurants, schools, and department stores.
  • Contain fire within lifts.
  • Provide boundary protection to stop fire from spreading to other premises e.g. in shopping centres.

General information
Finish

Powder-coated, white

Standard.

Powder-coated, RAL

Insert colour requirement.

Uniclass 2015 Fire-resisting roller shutters (Pr_30_59_84_30)
Specification data
Product Reference

SeceuroFire Curtain

Opening sizes

800–5800 x 740–4740 mm (w x h), insert requirements.

Arrangement

Face fitted

Reveal fixed

Control

FC+ Control Panel - Includes the features of the standard panel, plus split-drop curtain to retain smoke and allow emergency escape, and safety device inputs.

Finish

Powder-coated, white

Standard.

Powder-coated, RAL

Insert colour requirement.

Accessories/ Other requirements

Not required

Audio visual warning device

Emergency door release

Heat detector

Ionisation smoke detector

Optical smoke detector

Standard product features

Components:

  • Curtain: Stainless steel wire reinforced glass fabric, 0.69 kg/m² (grey finish).
  • Box assembly: Two-piece galvanized steel, powder-coated white. 200 x 220 mm (w x h).
  • Guide rails: 100 x 55 mm (w x d) double sections. Will expand towards the box housing unit during fire conditions.
  • Bottom rail: T-Sectioned, 40 x 55 mm (h x d).
  • End plates: Galvanized steel, 200 mm wide and 220 mm tall.
  • Axles: Round steel barrel (differs depending on product size).
  • Motor: 240 V AC tubular motor, operates under mains supply. Not designed for frequent use, and should remain open unless activated.

Product Options

Finish:

Applies to box, guide rails and bottom rail.

Third party certifications
  • Warrington Fire : Assessment report 197830 (BS 476: Part 22: 1987), 199303 (BS EN 1634-1: 2008), 195865 (BS EN 1634-1: 2008)
