SeceuroDoor 9501

Third party certifications:
  • QA Certificate

    Certificate type

SWS UK

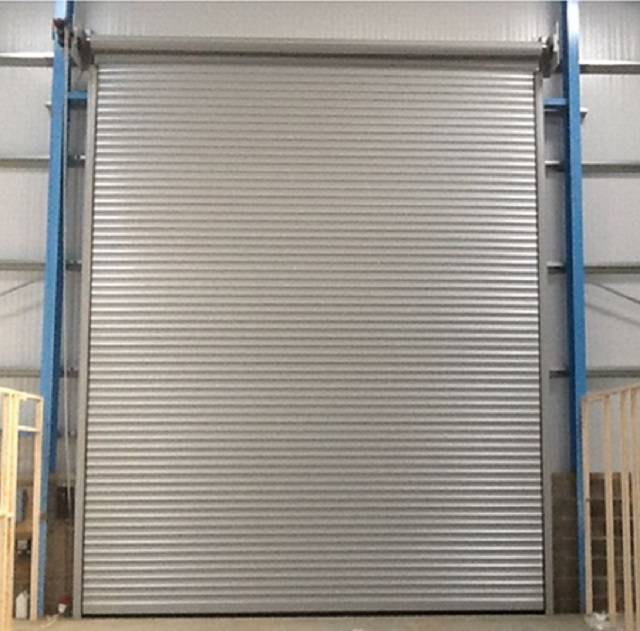

Industrial-style steel roller shutter, with foam-filled slat profile.

Jump to:
+44 (0)1524 772400 www.sws.co.uk
Application

Suitable for commercial and industrial applications.

Description

Industrial-style steel roller shutter, with foam-filled slat profile. Designed with minimal thermal bridges, fine-pored PU rigid foam and sealing technology; also allows the 9501 to benefit from thermal and acoustic insulation.

Features and benefits:

  • Acoustic reduction rating of 27 dB.
  • Wind class rating: Class 5.
  • Loss Prevention Standard 1175-2 (LPS1175-2), security level 2.
  • The product is internally face-fitted around the opening.
  • The head (axle/ box/ canopy) is to be concealed behind the structure of the building.
  • Bullet lock must be fitted to the internal side (accessed from the inside of the building only).

Application:

Suitable for commercial and industrial applications.

General information
Finish

Galvanized

Standard.

Powder-coated

Insert requirements.

Uniclass 2015
Roller shutters (Pr_30_59_84_73)Primary
Specification data - Roller shutters
Product Reference

SeceuroDoor 9501

Finish

Galvanized

Standard.

Powder-coated

Insert requirements.

Motor

Industrial single-phase

Industrial three-phase

Accessories

None

Bullet lock

Not on wind guides.

Standard product features

Size (h x w, minimum–maximum):

2000–4600 x 2000–6200 mm.

- Slats (h x d):

95 mm (107.42 mm to top of quirk) x 21 mm.

- Bottom slat (h x d):

65 x 23 mm.

- Guide channels:

80 x 73 mm.

- Hood, fascia and endplate:

  • End plate: industrial: 92 x 6, 8 or 10 mm (depends on end plate size).
  • Hood and fascia: 0.9 mm-thick sheet steel.

Construction:

- Slats:

95 mm (0.5 or 0.4 mm, laminate finish) steel-insulated slat.

- Bottom slats:

Aluminium (1.4 mm) bottom bar.

- Hood and fascia:

Folded, commercial steel end plates are used, ranging from 350–500 mm. Steel hood and fascia are optional, and are sized by the end plates used. If over 3 m these will come as two pieces, and if over 6 m they will come as three pieces.

- Guide channels:

80 mm steel 'T' guides.

Axle assembly:

  • Steel barrels ranging from 4” 16 g to 6 5/8” 6 g with industrial: a drive shaft (30, 40 or 55 mm) on one side and dummy shaft (30, 40 or 55 mm) on the other.
  • Drive: inboard/ direct-drive.

Weight:

13.15 kg/m².

Third party certifications
  • Loss Prevention Standard 1175-2: Certificate: 390e/02 - Security level 2
