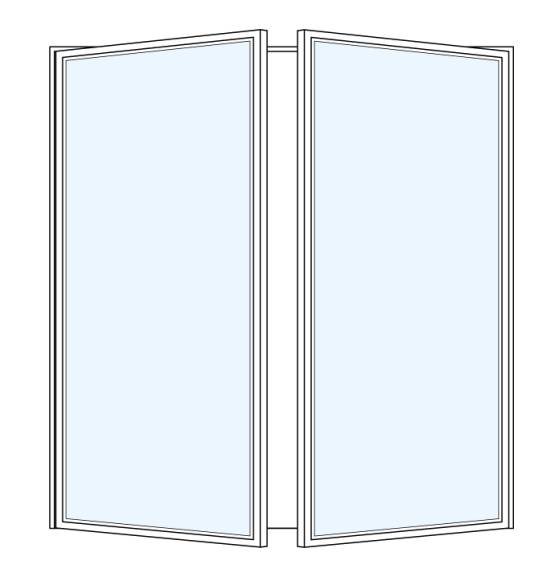

Secco OS2 40 Internal Doors and Partitions - Slimline Heritage Doors and Partitions

Verified by manufacturer 2 days ago

Painted steel frame, inward opening door

BM Architectural Variant:

Slimline heritage doors and partitions offering vintage appeal with modern thermal, acoustic and security performance. Made with Secco Sistemi tubular profiles.

Jump to:
Request BIM
0114 254 3226 Website

Application

Interior doors and partitions for a wide range of applications such as:

  • Period renovations;
  • Property conversions;
  • Contemporary homes;
  • Traditional homes.

Description

Slimline heritage doors and partitions offering vintage appeal with modern thermal, acoustic and security performance.

Features and benefits:

  • For glazed doors and partitions, with a glass thickness of 21mm for the first and 27 mm for the latter.
  • Internal use only.
  • Features slender Secco Sistemi tubular profiles, slim sight lines and clean, sharp edges.
  • Enhances the look of a wide range of applications, from architecturally ambitious new-build construction to period property renovations.
  • Available in a range of metal frames in various finishes.
  • In addition to enhancing energy efficiency, these systems can also contribute to the conservation of the local built environment.
  • Suitable for renovating older buildings, they are more sympathetic to the character, charm and architectural style of heritage or listed properties than more modern glazing options.
  • Maximizes the natural light entering a property and the feeling of space, helping to create safer, more comfortable and inspiring environments.
  • Part of the OS2 range.

General information

Color

Silver

Grey

Clear

Black

White

Show more

Finish

Painted

Blackened

Bronze

Glazed

Matt

Show more

Material

Steel

Glass

Carbon steel

Shape

Rectangle

Square

Other

Length

42 mm

Guidance for specification option:

Profile depth (maximum).

Width

Bespoke

Height

Bespoke

Uniclass

Ss_25_30_20_25 Doorset systemsPrimary
Ss_25_12_65_65 Panel partition systems

CAWS

K30/130 Relocatable partition system

K30/10 Relocatable partition system

L20/480 Doorsets

L20/55 Doorsets

Specification data - Doorset systems

Classification data

Doorset

-

Type

Steel frame glazed doorset.

Fasteners

Guidance for specification option:

Consult manufacturer for options and insert requirements to suit substrate.

Glazing

Guidance for specification option:

Consult manufacturer and insert requirements.

Maximum thickness: 27 mm.

Seals or inserts

-

Frame

Internal and external gaskets.

Classification and certification labelling

-

Format

Manufacturer’s standard.

Thresholds

-

Base

Manufacturer’s standard.

Over panels

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Manufacturer guidance

Include drawing and/ or schedule reference as required.

See also Configuration below for door arrangement.

Side panels

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Manufacturer guidance

Include drawing and/ or schedule reference as required.

See also Configuration below for door arrangement.

Hardware

Guidance for specification option:

Consult manufacturer for options and insert requirements.

They are available in the same range of finishes as the profiles to ensure design continuity.

Breakout facility

Required.
Not required.

Filler between frame and reveal

Guidance for specification option:

Insert requirements.

System accessories

Guidance for specification option:

Consult manufacturer for options and insert requirements, or omit.

Size

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Manufacturer guidance

Include drawing and/ or schedule reference as required.

  • OS2 40 is a rebated system with 47 mm face lateral sections and 62 mm central section.
  • For frames with multiple lights a 33.5 mm profile is used.

Configuration

-

Manufacturer guidance

Consult manufacturer for details and insert requirements.

Six main types are available; custom solutions are also available.

Colour/ Finish

Painted galvanized steel - Black RAL 9005 Matt.
Painted galvanized steel - Black RAL 9005 Semi-gloss.
Painted galvanized steel - Graphite Grey RAL 7024 Matt.
Painted galvanized steel - Graphite Grey RAL 7024 Semi-gloss.
Painted galvanized steel - Anthracite Grey RAL 7016 Matt.
Painted galvanized steel - Anthracite Grey RAL 7016 Semi-gloss.
Painted galvanized steel - Cream White RAL 9001.
Painted galvanized steel - Traffic White RAL 9016.
Painted galvanized steel - Pure White RAL 9010.
Painted galvanized steel - RAL colour.

Guidance for specification option:

Consult manufacturer and insert colour requirements.

Specialist colours available on request.

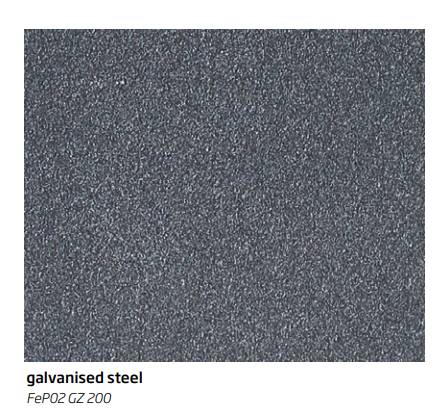

FrameMaterial

Galvanized steel.

Manufacturer guidance

FeP02 GZ 200. Hot galvanized iron alloy of carbon with Sendzimir system, skinpast finish.

Door leaf

Maximum 42 mm thick.

Guidance for specification option:

Maximum depth.

Beading

-

Manufacturer guidance

Rectangular, triangular, bevelled and recessed options available; consult manufacturer and insert requirements.

Sustainability data

Material

Steel
Glass
Carbon steel
