Sealwall - Precast Concrete Elements
Verified by manufacturer 3 months ago
3.3 m
3.3 m

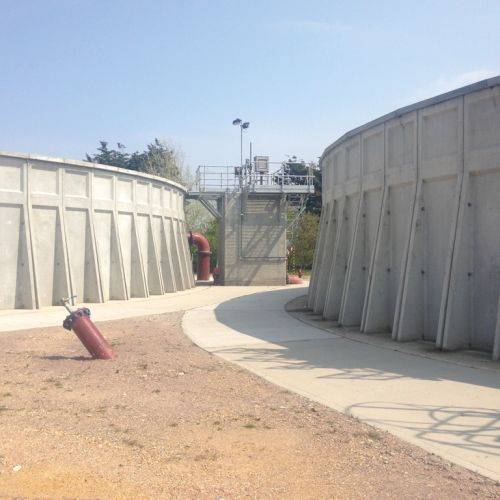

Precast concrete elements for forming liquid retaining walls.
Application
- Storm overflow.
- PST and FST.
- Humus.
- Sewage aeration.
- Potable water.
- Irrigation tanks.
- Chemical and effluent storage.
Description
Precast concrete elements used to form liquid retaining walls for construction, either above or below ground. Division walls are available to form compartments or launder channels within the tank.
Available up to 4 m finished heights, panels are secured in temporary state via panel-to-panel fixings with in situ base and ring beams to 300 mm base of units.
Completed square tanks can be covered using pre-stressed sections. Panels are supplied with fixings, seals and steel for ring beams.
Features and benefits:
- Can be adapted to form rectangular or circular shapes with unlimited capacity.
- Reduction in build time and overall construction costs.
- The jointing system ensures a watertight and secure connection between adjacent panels.
- Integrated Hydrotite seals ensure compliance with BS 8007 and BS 8110.
Applied with hand trowel.
General information
Color | Grey |
Finish | Smooth |
Material | Concrete |
Shape | Rectangle Circle |
Width | 1050 mm |
Height | 3300 mm 3800 mm 4300 mm |
Uniclass | |
CAWS | D41/410 Precast reinforced concrete stem walls |
Product range |
Specification data - Modular reinforced concrete stem wall units
Configuration | L shape. |
Dimensions | |
Height | 3300 mm. |
Width | 1050 mm. |
Depth | Manufacturer's standard. |
Weight | Manufacturer's standard. |
Finish | |
Exposed faces | Plain finish. |
Concealed faces | Plain finish. |
StrengthClass | C50. |
Accessories | Guidance for specification option: Insert requirement, contact manufacturer for information. |
Design | As drawing. Guidance for specification option: Insert drawing reference number where applicable. Apertures can be cast in to suit requirements. Consult manufacturer for information. Standard build includes packers (onto which the units are placed), hydrophilic strips (sealing between units), securing bolts and washers (to connect units) and steel bar continuity reinforcement (through preformed holes in the unit base) which, along with further loose reinforcement, are cast into an external concrete ring beam. |
Colour | Light grey. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | 0.19 kg CO₂ eq/kg Self declared |
