Application

  • Sheeting and cladding.
  • Facades and rainscreens.
  • General construction.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

Description

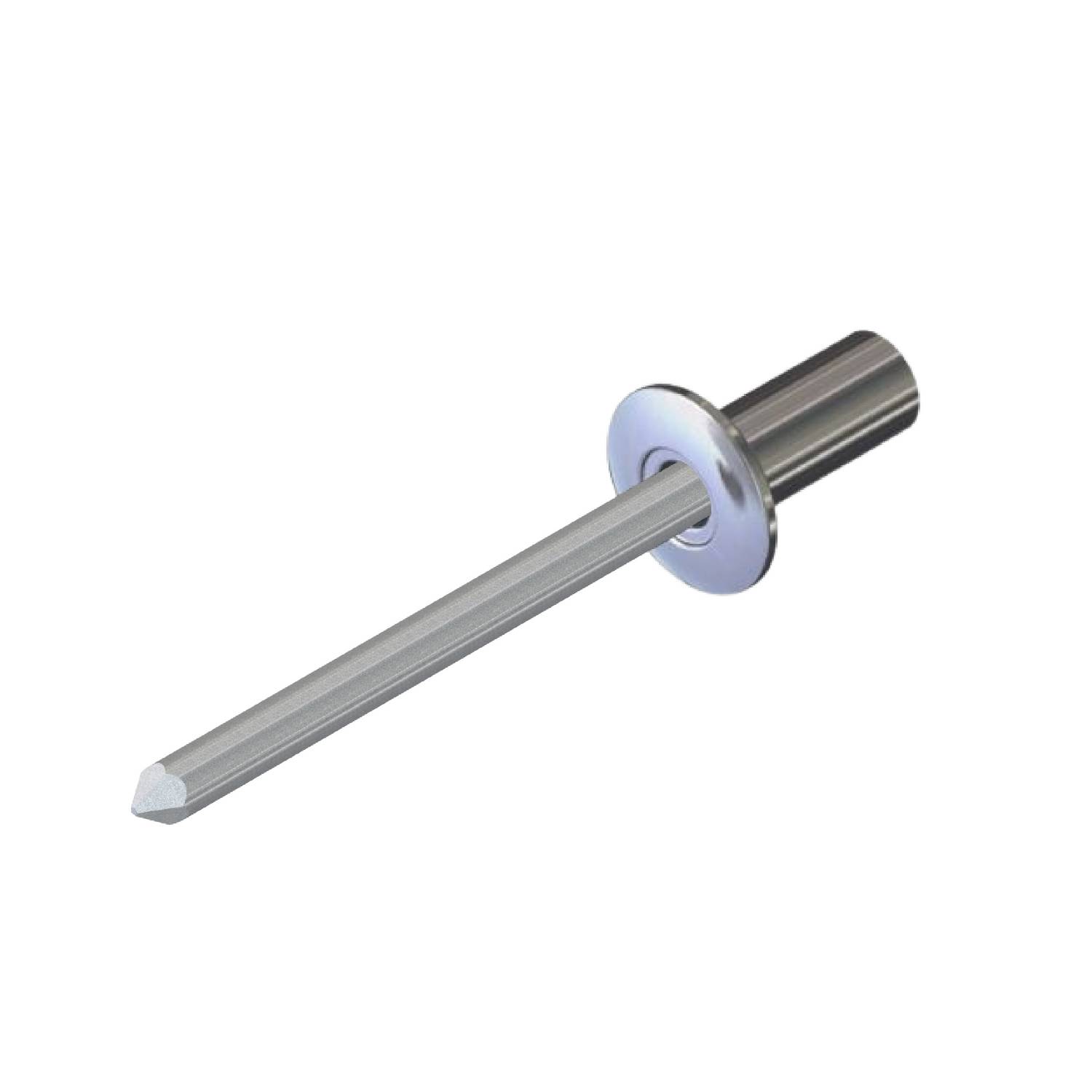

Sealed head rivets.

Features and benefits:

  • Composed of a domed aluminium body, with mandrel retained in the body after setting.
  • Available with carbon or stainless steel mandrel.
  • Available in a wide range of RAL and BS colours.
  • Available with small rubber sealing washer under the flange.
  • Manufactured in accordance with ISO 9001 and ISO 14001 Quality and Management Systems.

Applications:

  • Sheeting and cladding.
  • Facades and rainscreens.
  • General construction.

Fixfast products must be used as a complete system with tools and accessories as recommended - consult manufacturer for details.

General information

Uniclass 2015

Pr_20_29_71_77 Semi-tubular rivetsPrimary

CAWS

H31/10 Metal

H31/110 Metal

H31/120 Metal

H32/110 GRP

H32/120 Plastics

H43/10 Metal insulating sandwich panel

H43/120 Metal insulating sandwich panel

H67/110 Metal roof tiling

H67/120 Metal roof tiling with counterbattens

H67/130 Metal vertical tiling

H67/3 Metal roof tiling

H67/5 Metal roof tiling with counterbattens

H67/8 Metal vertical tiling

Specification data - Semi-tubular rivets

Product Reference

Sealed Head Rivets, RSH-AC-4.8 x 11

With carbon steel mandrel. 11.5 x 4.8 (l x diameter). 4–6 mm maximum grip range.

Sealed Head Rivets, RSH-AC-4.8 x 11-W

With carbon steel mandrel. 11.5 x 4.8 (l x diameter). 3–5 mm maximum grip range.

Sealed Head Rivets, RSH-AC-4.8 x 14

With carbon steel mandrel. 14.5 x 4.8 (l x diameter). 5–7 mm maximum grip range.

Sealed Head Rivets, RSH-AC-4.8 x 14-W

With carbon steel mandrel. 14.5 x 4.8 (l x diameter). 5–7 mm maximum grip range.

Sealed Head Rivets, RSH-AS-4.8 x 11

With carbon steel mandrel. 14.5 x 4.8 (l x diameter). 5–6 mm maximum grip range.

Sealed Head Rivets, RSH-AS-4.8 x 11-W

With stainless steel mandrel. 11.5 x 4.8 (l x diameter). 4–6 mm maximum grip range.

Sealed Head Rivets, RSH-AS-4.8 x 14

With stainless steel mandrel. 11.5 x 4.8 (l x diameter). 3–5 mm maximum grip range.

Sealed Head Rivets, RSH-AS-4.8 x 14-W

With stainless steel mandrel. 14.5 x 4.8 (l x diameter). 7.5–9.5 mm maximum grip range.

Sealed Head Rivets, RSH-AS-4.8 x 14-W

With stainless steel mandrel. 14.5 x 4.8 (l x diameter). 7.5–9.5 mm maximum grip range.

Colour

Consult manufacturer and insert RAL or BS colour requirement.

Standard product features

Drill size:

4.9 mm.

Head diameter:

9.5 mm.

Mandrel diameter:

2.6 mm.
