Seadec Primed Flush Fire Door EI60 - Fire Door
Verified by manufacturer 6 months ago
2040 x 626 mm door leaf
2040 x 626 mm door leaf
Flush primed internal doors with EI 60 fire resistance.
Application
For internal applications.
Description
Seadec Fire Doors come in various sizes and configurations to meet the standards required under Building Regulations Technical Guidance Documents. All Seadec fire doors are fully accredited by Fire Test Assessment reports, which are available on request and provide detailed information on the door’s scope of use. It is essential that fire doors are fitted in accordance with the certification which will also explain specification of door frame, intumescent materials and ironmongery.
General information
Color | White |
Finish | Primed |
Material | Wood Medium density fibreboard (MDF) |
Shape | Rectangle |
Width | 610 mm 626 mm 660 mm 711 mm 726 mm |
Height | 1981 mm 2032 mm 2040 mm |
Uniclass | |
CAWS | L20/230 Wood flush doors L20/20 Wood flush doors |
Specification data - Wood flush door leaves
Format | Single-leaf, single-action.Double-leaf, single-action. |
Thickness | 54 mm. |
Door leaf size | 2040 x 626 mm. |
Performance | |
Fire resistance | |
Insulation | To BS EN 13501-2, EI 60 minutes. |
Acoustic performance | 31 dB. |
Facings | Medium density fibreboard (MDF), 3 mm. |
Glazing | |
Type | Not required.Pyronova EI 60; EW60.Pyroguard EI60; EW60. |
Hardware | Manufacturer guidanceInsert requirements or refer to a schedule. All Irmade Fire Doors are certified to be fitted with concealed door closers. |
Perimeter seals | NOR710FR frame seal and NOR810 drop seal. |
Finish | Primed ready for site finish. |
Colour | |
External | Manufacturer guidanceInsert colour references or refer to a schedule. |
Internal | Manufacturer guidanceInsert colour references or refer to a schedule. |
Intumescent strip | 15 x 4 mm Graphite. Palusol (2no.). |
Hinges | Grade 13 (4no.). |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

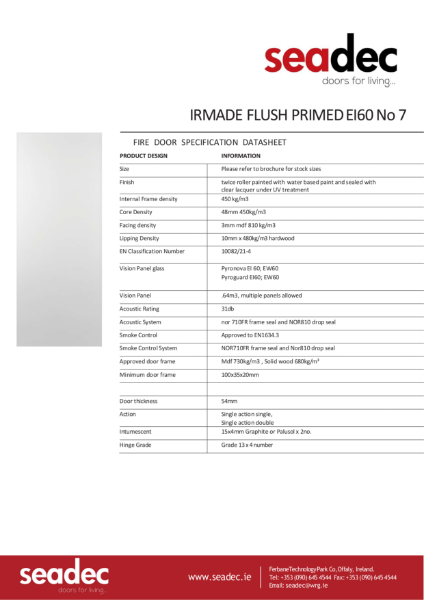

Seadec Primed Flush doors EI60
