Seadec Cheshire Primed Fire Door FD30 - Fire Door
Verified by manufacturer 3 months ago

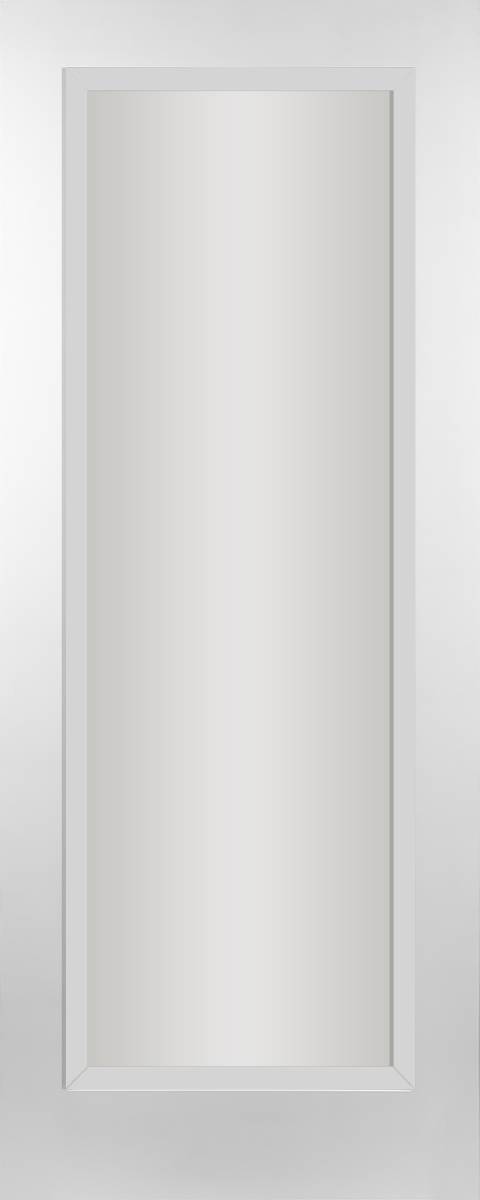

2040 x 526 mm door leaf
2040 x 526 mm door leaf

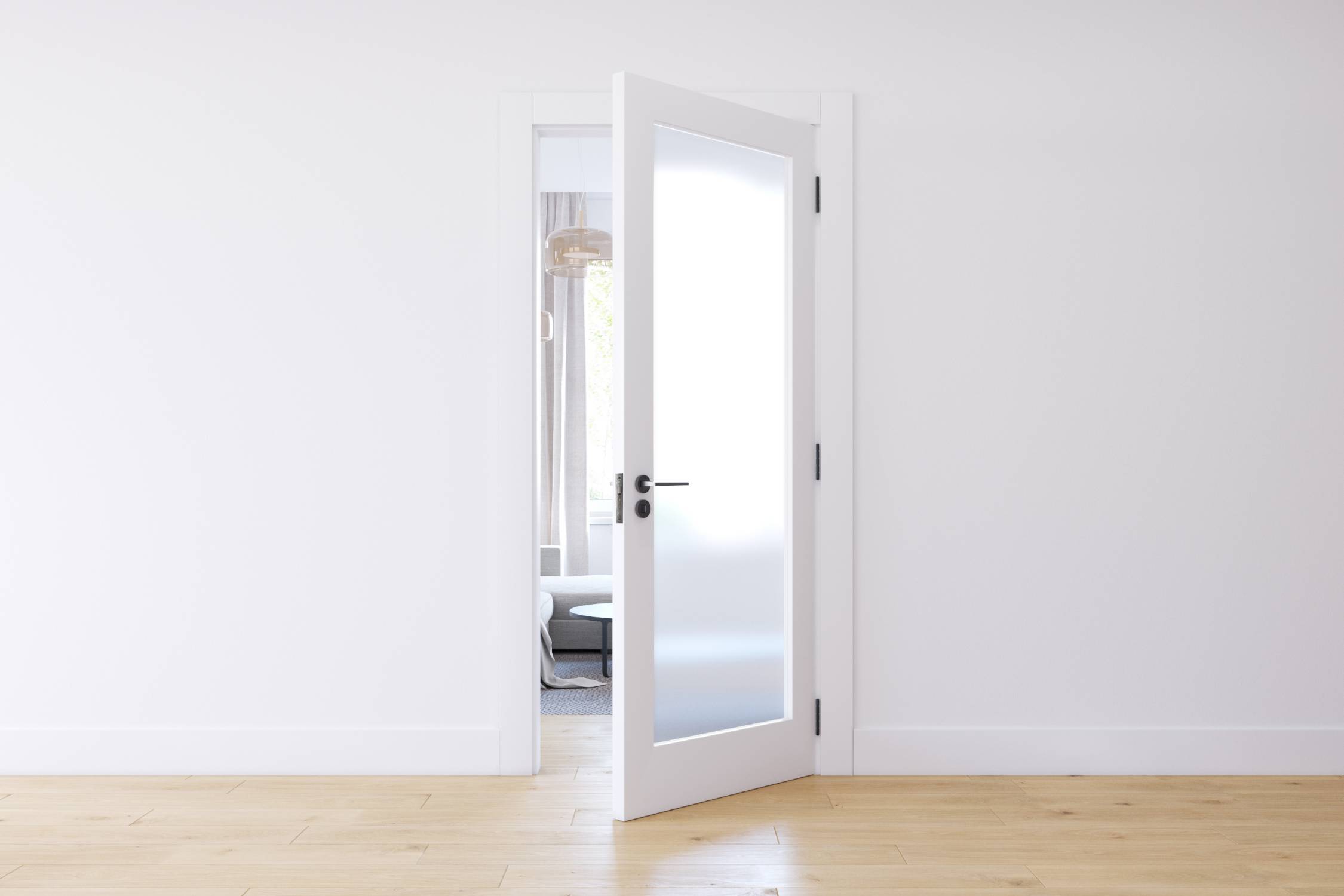

Primed one panel glazed shaker style doors with EI 30 fire resistance.
Application
For internal applications.
Description
Seadec Fire Doors come in various sizes and configurations to meet the standards required under Building Regulations Technical Guidance Documents. All Seadec fire doors are fully accredited by Fire Test Assessment reports, which are available on request and provide detailed information on the door’s scope of use. It is essential that fire doors are fitted in accordance with the certification which will also explain specification of door frame, intumescent materials and ironmongery.
General information
Color | White |
Finish | Primed |
Material | Wood Medium density fibreboard (MDF) |
Shape | Rectangle |
Width | 526 mm 610 mm 626 mm 660 mm 711 mm |
Height | 1981 mm 2032 mm 2040 mm |
Uniclass | |
CAWS | L20/25 Wood panelled doors L20/250 Wood panelled doors |
Specification data - Wood panelled door leaves
Format | Single-leaf, single-action.Double-leaf, single-action. |
Thickness | 44 mm. |
Door leaf size | 2040 x 526 mm. |
Performance | |
Fire resistance | |
Insulation | To BS EN 13501-2, EI 30 minutes. |
Acoustic performance | 29 dB Rw +. |
Door structure | |
Panel arrangement | One panel, glazed. |
Core | Stiles and rails: Solid pine frame and flaxboard core. |
Veneer wood species | 3 mm MDF facings. |
Lippings | White painted. |
Glazing | |
Type | Pyroguard EI 30. |
Hardware | Manufacturer guidanceInsert requirements or refer to a schedule. Please see classification report for approved ironmongery. |
Perimeter seals | NOR710FR frame seal and NOR810 drop seal.Guidance for specification option: Acoustic system. |
Finish | Primed ready for site finish. |
Colour | |
External | Manufacturer guidanceInsert colour references or refer to a schedule. |
Internal | Manufacturer guidanceInsert colour references or refer to a schedule. |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

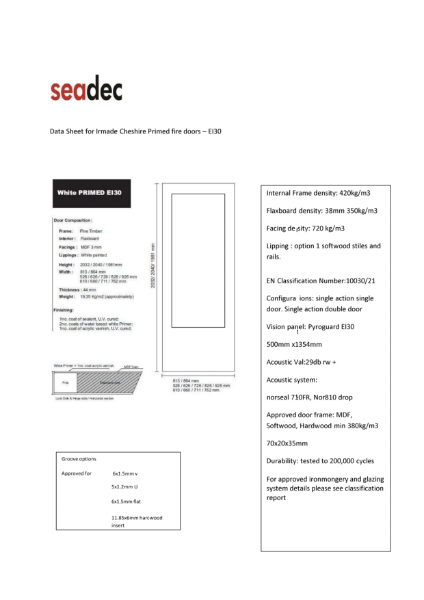

Seadec Cheshire primed EI 30
