Description

A2 (1.4301 [304] grade) austenitic stainless steel self drilling fastener with 6.0 mm diameter threads into the purlin/ rail . The fasteners are designed for securing halters for aluminium standing seam systems.

Head drive:

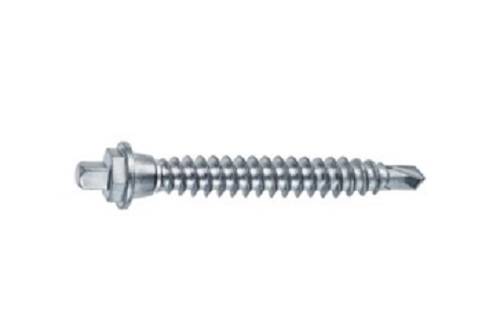

The uniquely designed fastener is driven via a square peg above a 7 mm hexagon head. The tapered section below the head engages in the 6.1 mm punched hole of the halter, which is clamped to the purlin/rail. When the correct torque is reached the peg breaks off to ensure the fastener are not overdriven.

If a halter needs re-positioning the socket is reversed and the SDK fastener may be removed via the 7 mm hex drive.

Warranty:

Up to 40 years (period to be confirmed and agreed specific to the project).

Approvals:

Suitable to be used with all major aluminium standing seem manufacturers, subject to halter specification.

General information
Material

Fastener is manufactured from A2 (1.4301 [304] grade) austenitic stainless steel and are therefore suitable for all corrosivity categories; C1–C5 as defined in BS EN 12944

Uniclass 2015
Stainless steel hexagon head screws (Pr_20_29_76_85)Primary
Specification data - Stainless steel hexagon head screws
Product Reference

SDK

Drilling capacity

SDK

Substrate material and thickness to be confirmed by contractor.

SDK2-S

0.7–1.25 mm steel.

SDK3-S

1.5–2.5 mm steel.

Fastener length

6.0 x 30

Clamping range 6–13 mm, to be used with SDK3.

6.0 x 35

Clamping range 6–18 mm, to be used with SDK2.

6.0 x 45

Clamping range 6–28 mm, to be used with SDK2 and SDK3.

Standard product features

Material:

Fastener is manufactured from A2 (1.4301 [304] grade) austenitic stainless steel and are therefore suitable for all corrosivity categories; C1–C5 as defined in BS EN 12944.

Product Options

Material:

Consult manufacturer for suitability with swimming pool applications.
