Scoutmoor Yorkstone Paving

Name: Scoutmoor Yorkstone Paving
Brand: Marshalls plc
SKU: bttbyF5HH7gZ9EqSUH7rRn

Verified by manufacturer 3 months ago

Capital finish

Marshalls plc

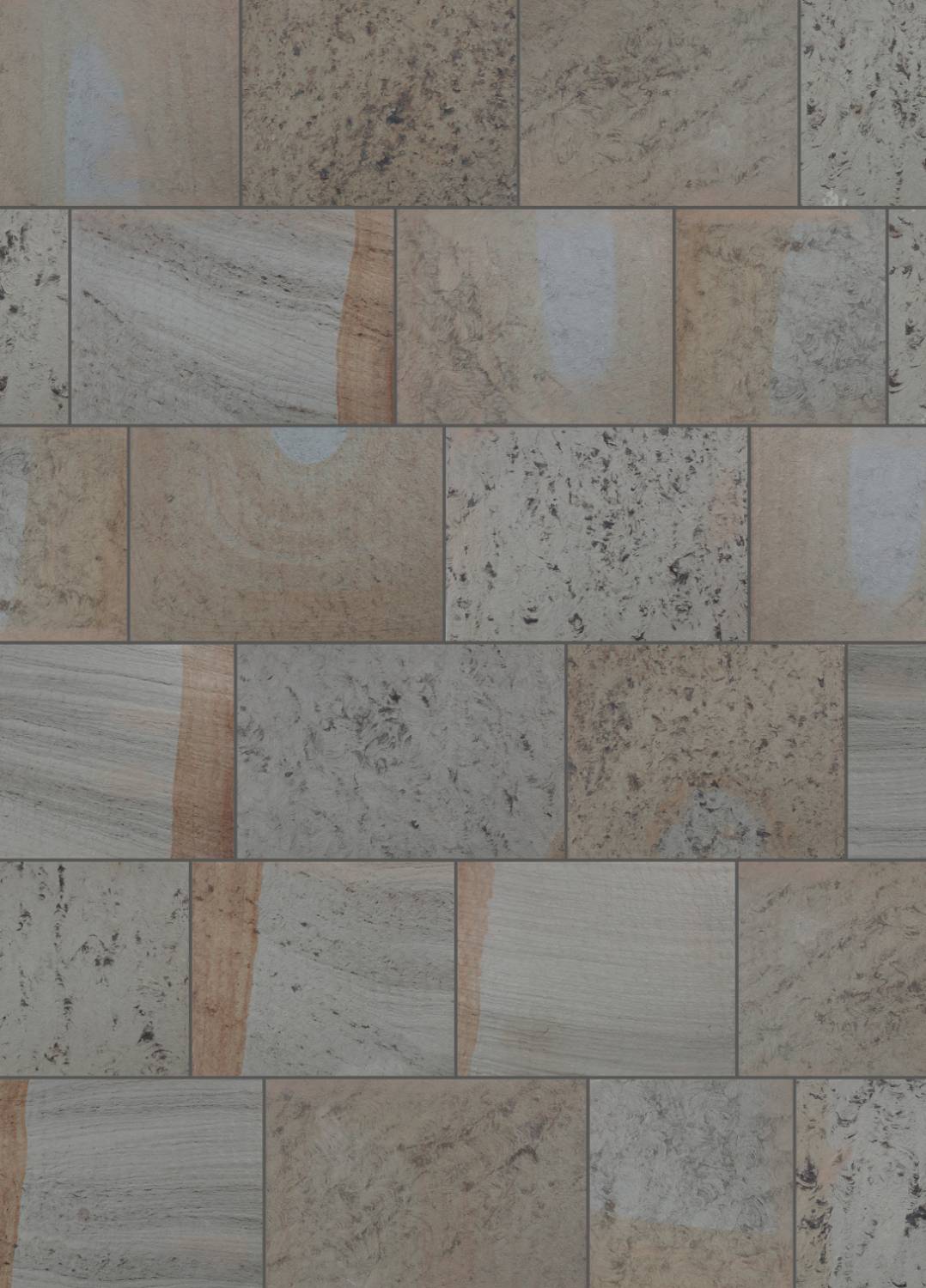

Fine grained, hard Yorkstone paving slabs, which vary in colour from blue grey to buff brown.

Jump to:

+44 (0)330 0574472 Website

Application

Paving and also available as setts, kerbs, tactile paving, steps, water management, and low level masonry veneers for planters and seats – consult manufacturer for information.

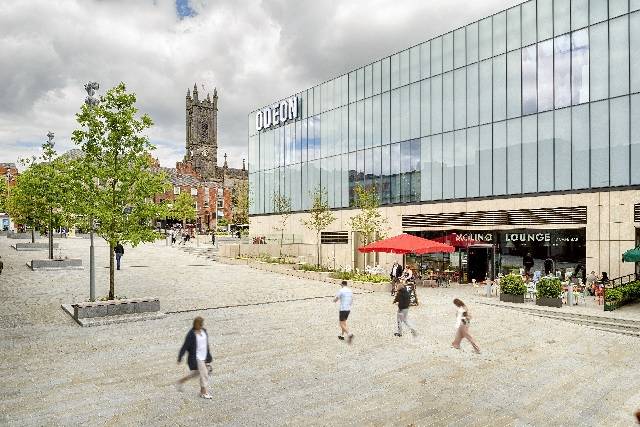

Suitable for any commercial or public space, including pedestrian and trafficked areas.

Description

Fine grained, hard Scoutmoor Yorkstone which vary in colour from blue grey to buff brown.

Features and benefits:

Quarried in Britain
High slip resistance
Durable and hard-wearing
Available in four finish options
UKCA marked, and manufactured in accordance with BS EN 1341: 2012.

General information

Color	Blue Guidance for specification option: Vary in colour from blue grey to buff brown. Grey Brown
Finish	Sawn Guidance for specification option: Diamond sawn. Flamed Fine Guidance for specification option: Fine sawn. Other Guidance for specification option: Capital finish.
Material	Sandstone
Shape	Rectangle Square
Length	200 mm 300 mm 400 mm 450 mm 600 mm 900 mm Bespoke Show more
Width	100 mm 150 mm 200 mm 300 mm 450 mm 600 mm Bespoke Show more
Height	50 mm 63 mm 75 mm Bespoke

Uniclass	Pr_25_93_60_58 Natural stone paving slabsPrimary
CAWS	Q25/31 Concrete flag paving systems Q25/315 Concrete flags

Specification data - Natural stone paving slabs

Standard	To BS EN 1341.
Stone denomination	-
Petrological family	Sandstone. Guidance for specification option: Millstone Grit series, Carboniferous sandstone.
Colour	Blue grey to brown fine grained.
Name (traditional)	Yorkshire Stone.
Origin	Lancashire. Guidance for specification option: Scoutmoor Quarry.
Physical properties	-
Profile	-
Slab type	Fine grained.
Dimensions and associated tolerances	-
Nominal sizes	200 x 100 x 50 mm. 200 x 100 x 63 mm. 200 x 100 x 75 mm. 300 x 100 x 50 mm. 300 x 100 x 63 mm. 300 x 100 x 75 mm. 300 x 150 x 50 mm. 300 x 150 x 63 mm. 300 x 150 x 75 mm. 300 x 200 x 50 mm. 300 x 200 x 63 mm. 300 x 200 x 75 mm. 400 x 300 x 63 mm. 450 x 450 x 50 mm. 450 x 450 x 63 mm. 450 x 450 x 75 mm. 600 x 600 x 50 mm. 600 x 600 x 63 mm. 600 x 600 x 75 mm. 900 x 450 x 50 mm. 900 x 450 x 63 mm. 900 x 450 x 75 mm. 900 x 600 x 50 mm. 900 x 600 x 63 mm. 900 x 600 x 75 mm.
Tolerances on plan dimension and thickness (nominal)	Class 1. Guidance for specification option: Paving Class 1 tolerances to all dimensions as standard. Setts Class 2 tolerances to all dimensions as standard. Kerbs Class 2 tolerances to all dimensions as standard. Others by agreement
Tolerances on diagonals	Class 1. Guidance for specification option: Paving Class 1 tolerances to all dimensions as standard. Setts Class 2 tolerances to all dimensions as standard. Kerbs Class 2 tolerances to all dimensions as standard. Others by agreement.
Tolerances on thickness	Class 1. Guidance for specification option: Paving Class 1 tolerances to all dimensions as standard. Setts Class 2 tolerances to all dimensions as standard. Kerbs Class 2 tolerances to all dimensions as standard. Others by agreement.
Finish	Capital finish.
Performance requirements	-
Slip resistance	To BS 14231, 105 (dry).
Breaking load	To EN 12372, 20.57 MPa. Guidance for specification option: (Lev = 17.71 MPa).
Water absorption (maximum)	To EN 13755, 1.98 %. Guidance for specification option: (Hev = 2.14%).

Light reflectance	34.97.
Surface roughness	62 Rz-μm.
Third-party certification	UKCA marked.
Abrasion resistance	To EN 14157, 19.16 mm. Guidance for specification option: (Hev = 20.19 mm).
Durability	To EN 12371, 22.95/20.8 MPa. Manufacturer guidance Freeze-thaw.
Density	To EN 1936, 2522 kg/m³.
Porosity	To EN 1936, 5.55%. Manufacturer guidance Open porosity.
CompressiveStrength	To EN 1926, 102 MPa. Guidance for specification option: (Lev = 64 MPa).

Sustainability data

Country of material origin	United Kingdom
Country of product manufacture	United Kingdom
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	Self declared Guidance for specification option: Carbon footprint available on request.
