Schöck Stacon®

Verified by manufacturer 2 months ago

Schöck Dorn® Type LD

Schöck Ltd Variant:
Third party certifications:
  • UK Technical Assessment (UKTA)

    UK Technical Assessment (UKTA)

    Certificate type

Shear dowels.

Jump to:
+44 (0)1865 290 890 Website

Application

Expansion joints.

Description

Schöck Stacon® simplifies the planning and execution of expansion joints while at the same time making the best possible use of the available space.


Schöck Stacon® is the ready-to-install shear force dowels for the constraint-free transmission of shear forces in expansion joints put an end to complicated detailed solutions. They enable simple design and formwork and at the same time simplify reinforcement layout. By using high-quality stainless steels, Schöck shear force dowels guarantee a safe and maintenance-free connection. Schöck's heavy-duty and load dowels are cost-effective and absorb shear forces safely and reliably.


Available in 2 types:

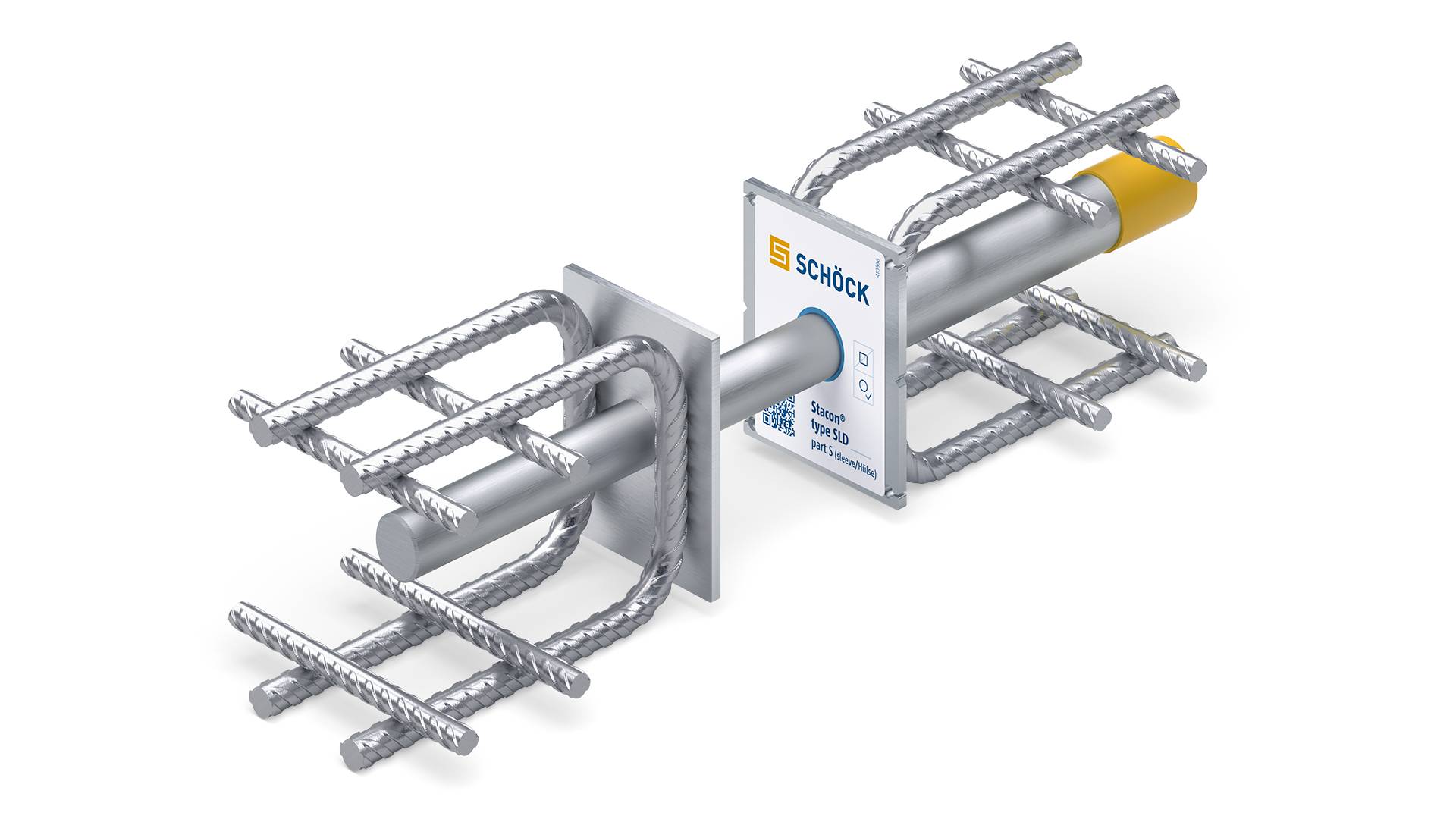

The Schöck Stacon® type SLD - This heavy-duty dowel is more compact and enables the installation of higher loads on thinner ceilings and walls. In addition, less on-site reinforcement is required.

Years of research form the basis for the optimisation of the shear force dowel Stacon® type SLD. In an extensive series of tests, heavy-duty dowels were tested and optimised according to the latest state of the art for longitudinal and transverse displacement, the load-bearing capacity of concrete and steel, and their fire behaviour.

The result is the shear force dowel Schöck Stacon® type SLD with United Kingdom Technical Assessment (UKTA) with fire protection classification R 120.


The Schöck Stacon® type LD - To avoid cracks due to temperature expansion or the shrinkage of concrete, expansion joints must be arranged in long structural elements and buildings. The simplest solution for force transmission in expansion joints is the Schöck Stacon® type LD. This shear force dowel connects the components adjacent to the joint without additional constructions. In doing so, the shear forces are transferred and at the same time the required movement is made possible. Complex double walls or corbels for load transfer can be omitted with these shear dowels.


General information

Color

Silver

Material

Carbon steel

Plastic

Stainless steel

Shape

Other

Uniclass

Pr_35_90_15_83 Stainless steel shear load connectorsPrimary

CAWS

E40/440 Load transfer systems

E42/335 Shear Load Connectors

E30/240 Proprietary prefabricated reinforcement

Specification data - Stainless steel shear load connectors

Stainless steel designation

Grade 1.4362.

Grade 1.4382.

Grade 1.4462.

Grade 1.4404.

Grade 1.4571.

Certification

UKTA-0836-23/6892.

Type

LD.

Guidance for specification option:

Punching shear reinforcement Schöck Bole® type O is mounted after installation of the top and bottom slab reinforcement. This approach to installation is particularly recommended for slab thicknesses up to 30 cm and moderate reinforcement requirements. The product is supplied ready for installation; no further parts are needed for assembly. Schöck Bole® type O is suitable for installation on site.

Diameter

16 mm.

20 mm.

22 mm.

25 mm.

30 mm.

Material/ Finish

-

Manufacturer guidance

Insert requirements, sleeve available in stainless steel or plastic, dowel available in stainless steel S690 or hot galvanized carbon steel S690.

Third party certifications

UK Technical Assessment (UKTA)

UK Technical Assessment (UKTA)

UKTA-0836-23/6888 - Schöck Stacon® type SLD/SLD-Q

UK Technical Assessment (UKTA)

UK Technical Assessment (UKTA)

UKTA-0836-23/6892 - Schöck Stacon® type LD
