Schlüter®-TROBA-LINE-TLR - External Drainage Channel
Verified by manufacturer 5 months ago
Stainless steel drainage channel.
Application
Placed at low levels to doorsills and wall connections on balconies and terraces to prevent water accumulation. Also used as an area drainage channel for high water quantities.
Description

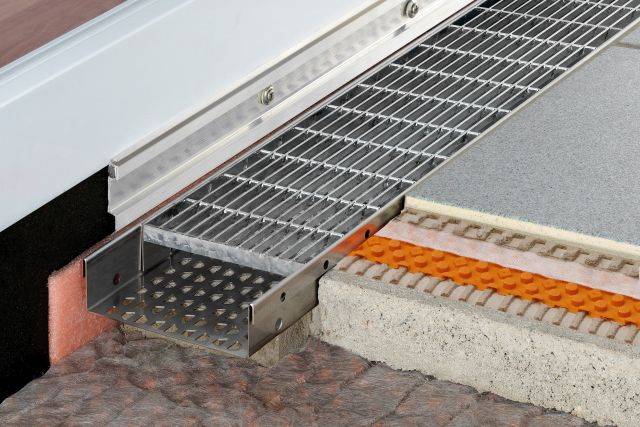

A stainless steel drainage channel with an upper drainage grate made of galvanized stainless steel. Installation is preferred by Schlüter-Systems trained installers.
Features and benefits:
- Lower section of stainless steel and an upper drainage screen of galvanized steel.
- The grates are able to support medium-high traffic loads.
General information
Color | Silver |
Finish | Galvanized |
Material | Steel Guidance for specification option: Stainless steel V2A – 1.4301. |
Shape | Rectangle |
Length | 2000 mm 1500 mm 1000 mm 750 mm |
Width | 110 mm 160 mm |
Height | 20 mm 40 mm |
Warranty description | Five year |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/5 Tiling to |
Product range |
Specification data - Drainage channels with gratings
Material | Stainless steel V2A – 1.4301. |
Gratings | |
Material | Stainless steel V2A – 1.4301. |
Colour | Grey. |
Channel unit dimensions | |
Width (nominal) | 110 mm.160 mm. |
Depth (nominal) | 20 mm.40 mm. |
Length | 750 mm.1000 mm.1500 mm.2000 mm. |
Integral accessories | End covers.Connectors. |
Control options | Perforated lower channel with grate. Solid unperforated lower channel with grate. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Recyclability | Where product is reclaimed from the building the material can be recycled where facilities exist. |
