Schlüter®-TREP-G-GL - Stair Nosing Profile
Verified by manufacturer 5 months ago
Schlüter®-TREP-GL
Schlüter®-TREP-GL

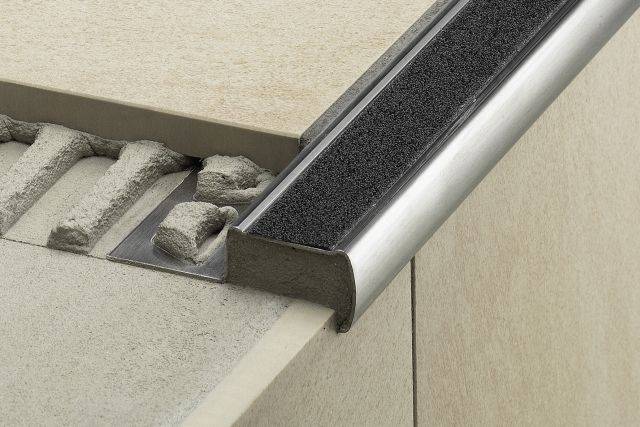

Stainless steel stair nosing profiles with a special non-slip tread.
Application
Schlüter®-TREP-G is for applications in areas with heavy foot traffic e.g. business premises or in public buildings. Schlüter®-TREP-GL is suitable for residential settings or areas with low foot traffic.
Description
Stainless steel stair nosing profiles with a special non-slip tread with trapezoid perforations in the anchoring legs. Installation is preferred by Schlüter-Systems trained installers.
Features and benefits:
- Made of stainless steel material no. 1.4301 (V2A), which is produced in a roll forming process.
- The profiles are suitable for the safe and visually appealing design of stairs with tiled or natural stone coverings, but can also be used with screed or other coating materials.
- Protects the front edge of steps and adds a high degree of safety due to the special non-slip design of the tread and the excellent visibility of the steps.
- Matching end caps are available.
- The profiles are designed for internal and external areas.
- The transparent tread only has limited UV resistance and is intended for indoor use only.
General information
Color | Black Clear |
Finish | Brushed |
Material | Steel Guidance for specification option: Stainless steel V2A (material no. 1.4301 = AISI 304). |
Shape | Other |
Length | 2500 mm 1500 mm 1000 mm |
Width | 30 mm 55 mm |
Height | 9 mm 11 mm 13 mm 15 mm |
Warranty description | Five year |
Uniclass | |
CAWS | P20/150 Metal |
Product range |
Specification data - Rigid stair nosings
Base section | |
Material | Stainless steel V2A.Guidance for specification option: Material no. 1.4301 = AISI 304. |
Finish | Brushed. |
Size | |
Rise x going | 17 mm. |
Inserts | |
Material | Profiled plastic. |
Colour | Black.Transparent. |
Accessories | Not required.Adhesive.Adhesive tape.Matching end caps.Guidance for specification option: Available where profiles with anchoring legs are selected. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Steel Guidance for specification option: Stainless steel V2A (material no. 1.4301 = AISI 304). |
Recyclability | Where product is reclaimed from the building the material can be recycled where facilities exist. |
Recycled contentAs defined in clause 7.8 of BS EN ISO 14021 | 90 % Guidance for specification option: >90% by weight pre-consumer content Manufacturer guidanceWaste and reclaimed material can be recycled where facilities exist. |
Expected Life | Five year |
