Schlüter®-SCHIENE-A - Edge Protection Profile
Verified by manufacturer 5 months ago

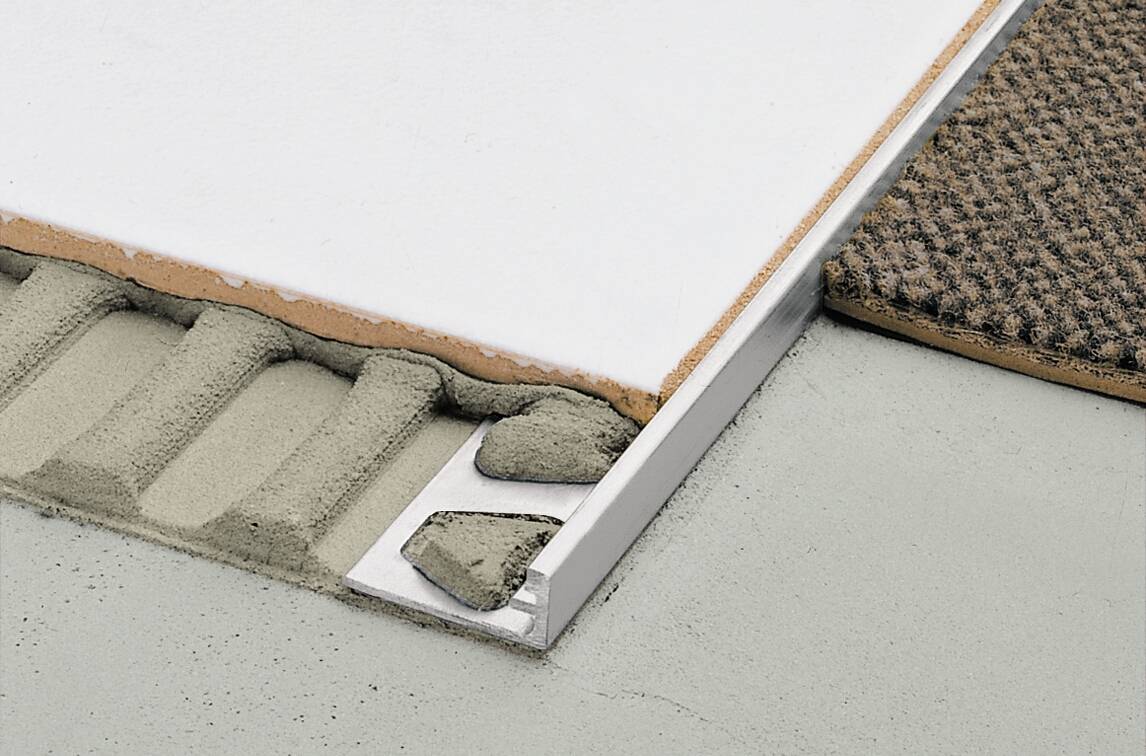

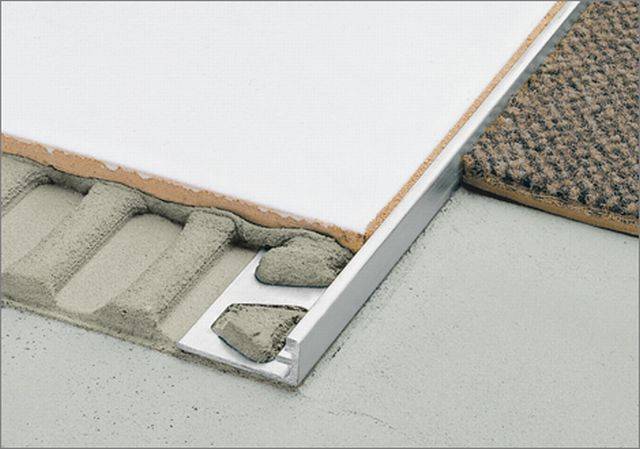

An L-shaped profile.
Application
Finishes and protects the edges of tiled coverings, as well as other surfacing materials.
Description
An L shaped profile with a trapezoid perforated anchoring leg connected to an 87° angled finishing section, which widens to a sloped top flange and features an integrated joint spacer to create the joint cavity on most options. Installation is preferred by Schlüter-Systems trained installers.
Features and benefits:
- Available with a perforated anchoring leg to allow the profile to be formed to a radius on site.
- 2–40 mm (dependent upon material).
General information
Color | Silver |
Finish | Anodized |
Material | Aluminium |
Shape | Other Guidance for specification option: L Shaped |
Length | 2500 mm 1000 mm |
Width | 3 mm |
Height | 2 mm 3 mm 4.5 mm 6 mm 7 mm |
Warranty description | Five year |
Uniclass | |
CAWS | M40/10 Natural stone covering to M40/110 Tiling to M40/115 Natural stone covering to M40/120 Mosaic to M40/5 Tiling to M42/570 Dividing/ diminishing strips M42/65 Dividing/ Diminishing strips M50/70 Edgings and cover strips M50/740 Edgings and cover strips |
Product range |
Specification data - Preformed tiling strip joints
Material | Aluminium.Brass. |
Finish or colour | Silver. |
Size | |
Length (minimum) | 1000 mm.2500 mm. |
Depth | Manufacturer guidance2 – 40 mm. Consult manufacturer. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Germany |
Country of product manufacture | Germany |
Material | Aluminium |
Manufacturing plant location | |
Recyclability | Where product is reclaimed from the building the material can be recycled where facilities exist. |
Expected Life | Lifetime |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 IFC | - | 2 |
 Revit | - | 3 |
Literature

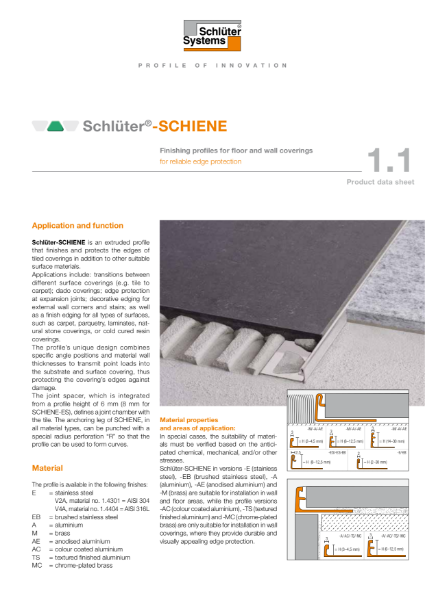

1.1 Schlüter-SCHIENE - Technical Data Sheet
1.1 - Schlüter®-SCHIENE Technical Drawing
